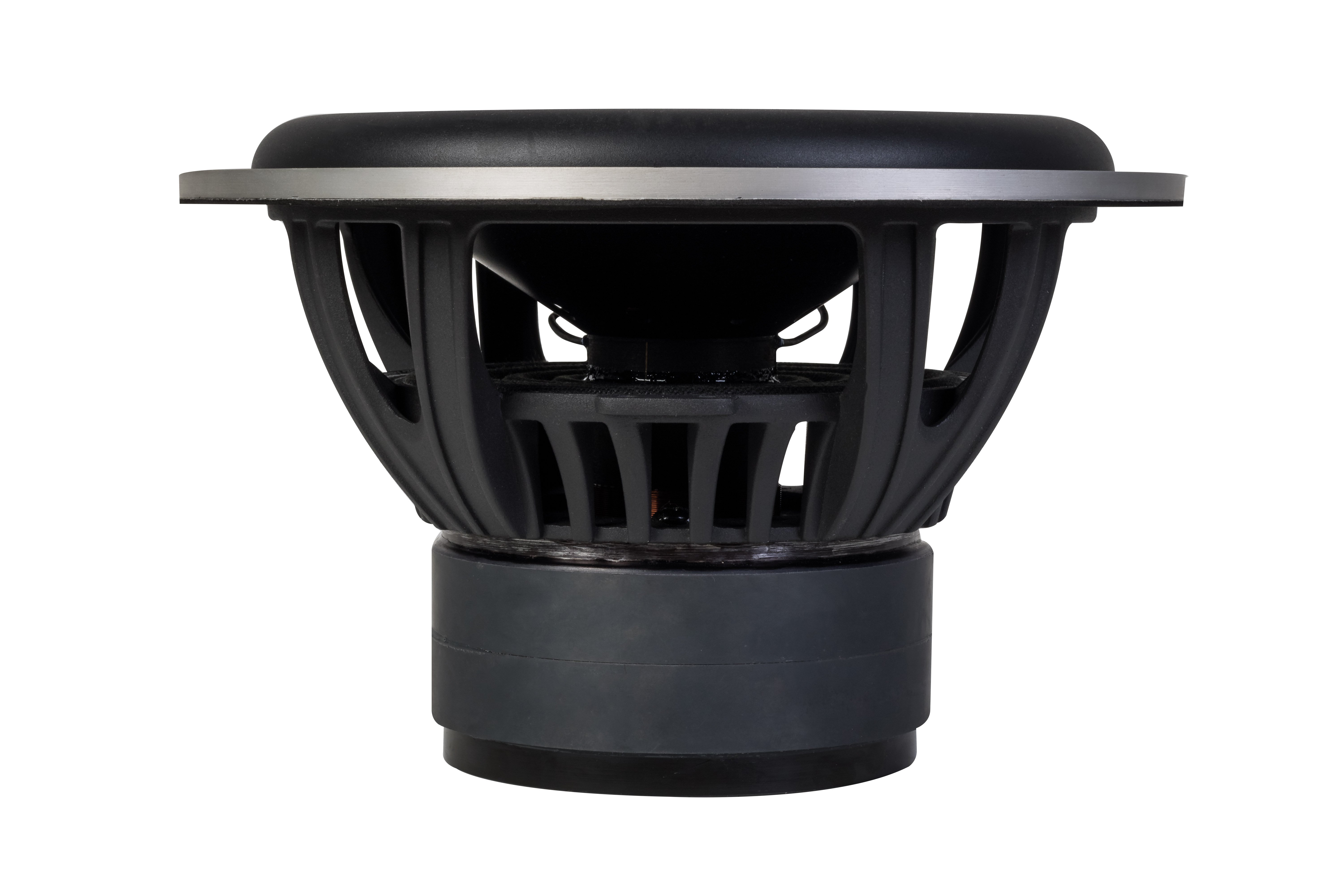

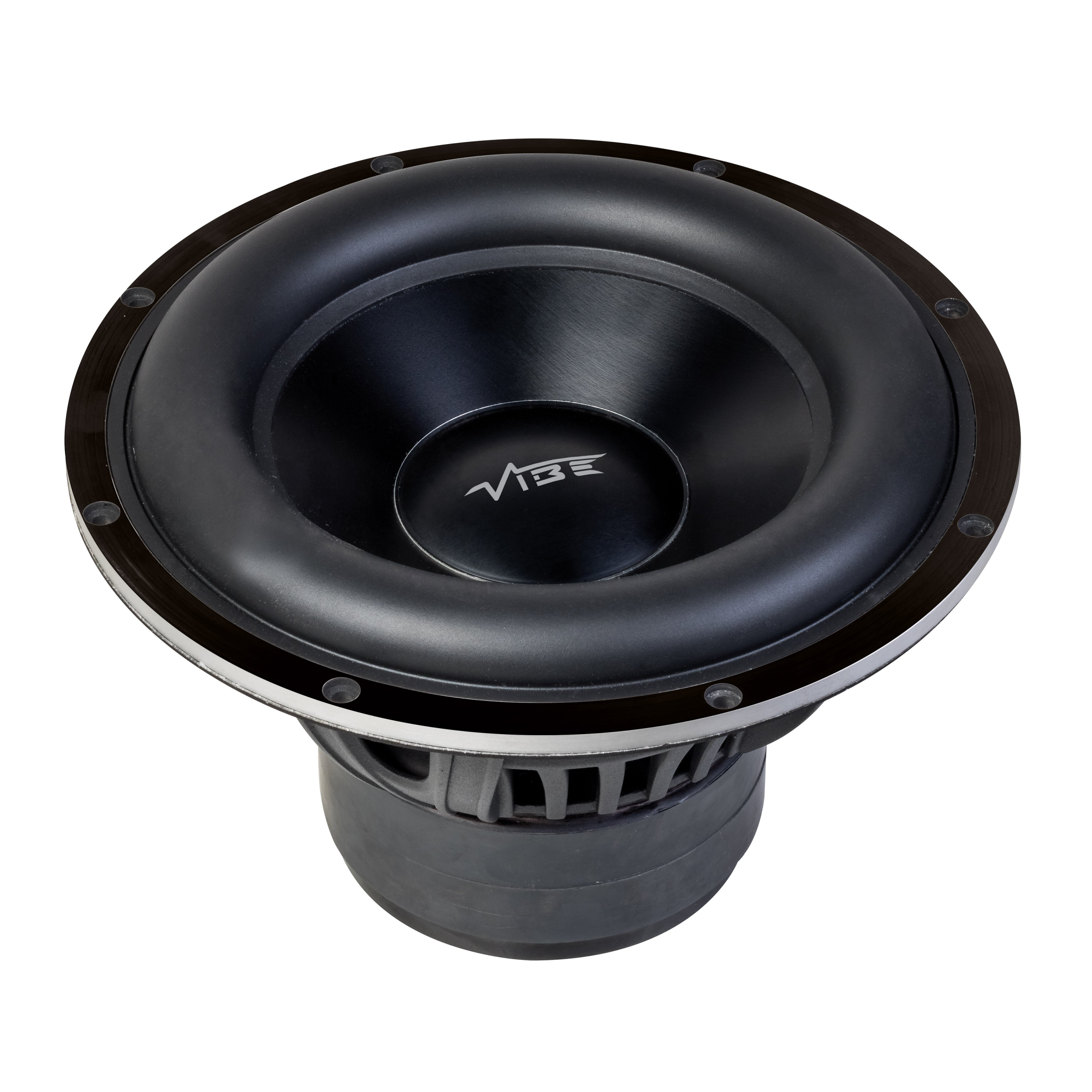

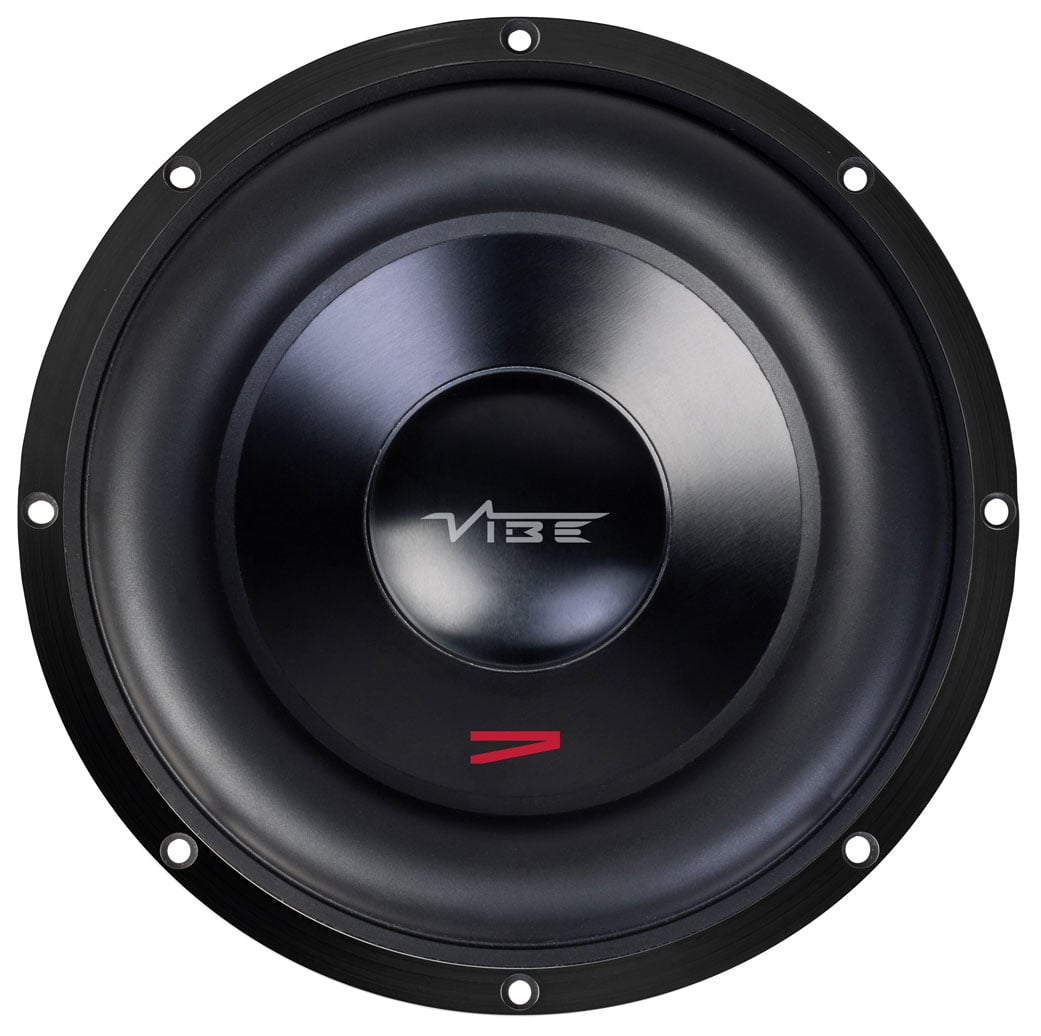

VIBE Audio Cven CVEN10SW-V7
4Ω
Subwoofer
| Nominal diameter | 10″ / 259 mm |
| Resonance | 29 Hz |
| Q factor | 0.46 |
| Sensitivity | 82.8 dB |
| Linear excursion | ± 11.5 mm |
| Program Power | 400 W |
.png)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 29Hz
- Mechanical quality factor QMS 10.00
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.46
Large signal parameters
- Maximum linear excursion (one way) xmax 11.5mm
- Air volume displaced at xmax VD 359cm³
- Power handling P 200W
- Program power Pmax 400W
- Peak power Ppeak 800W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz) LE 1.5mH
- VC Diameter 51mm
- Winding height HVC 31mm
- Former material Black fiber glass
Magnet
- Force factor Bl 14.5N/A
- Motor constant Bl/√RE 7.98N/√W
- Air gap height HAG 8mm
- Diameter 145mm
- Weight 2.7kg
Diaphragm
- Effective diameter 199mm
- Effective area SD 312cm²
- Moving mass MMS 173g
- Moving mass (without air load) MMD 169g
- Material Aluminium
Suspensions
- Stiffness KMS 5.56N/mm
- Compliance CMS 180µm/N
- Equivalent volume to the compliance VAS 25L
- Mechanical resistance RMS 3.1N·s/m
- Spider material CONEX
Dimensions
- Nominal diameter 10″
- 259mm
- Overall diameter 259mm
- Baffle cutout diameter 227mm
- Mounting depth 148mm
- Volume occupied by the driver (estimated) 2.9L
- Net weight 6.6kg
- Frame material Die cast aluminium
