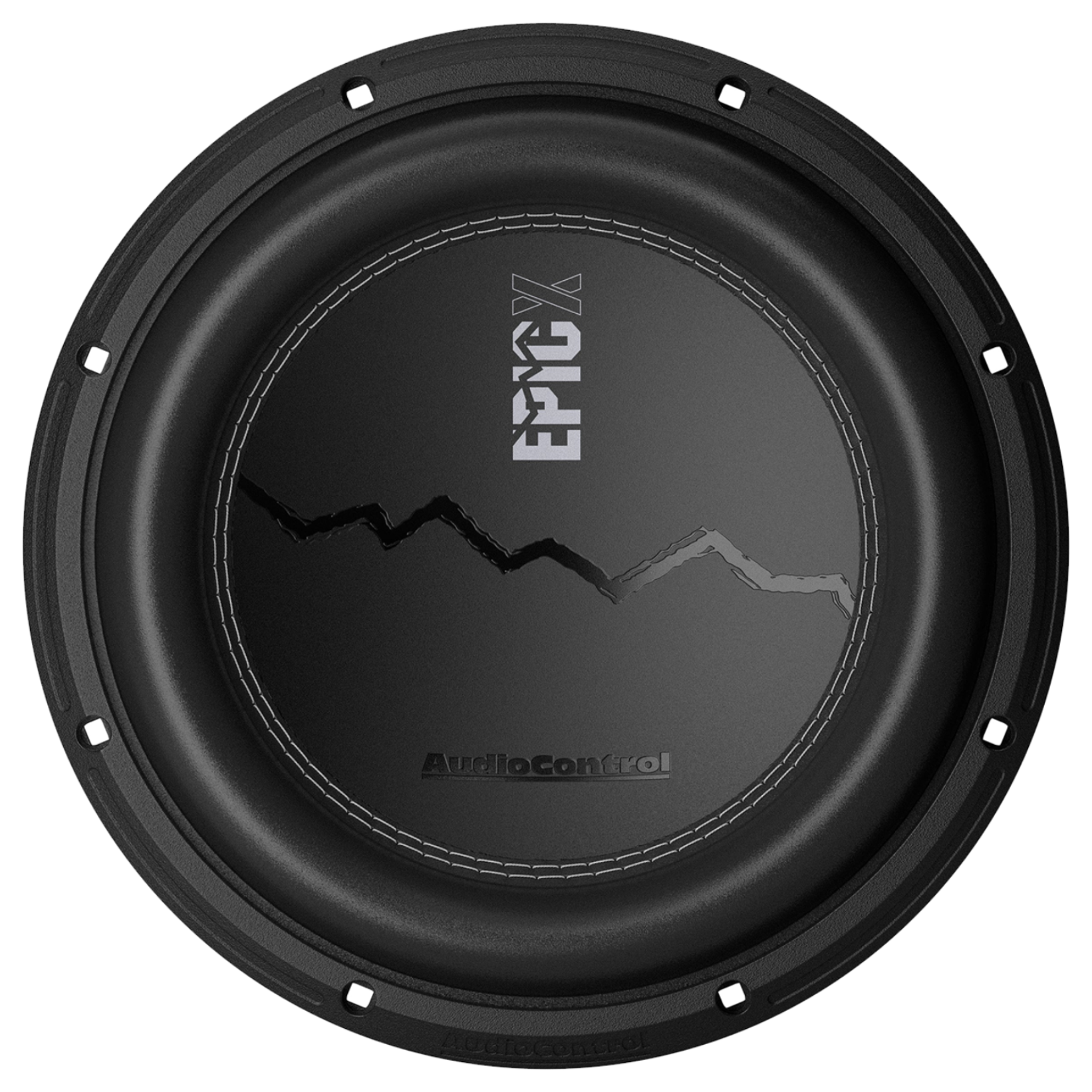

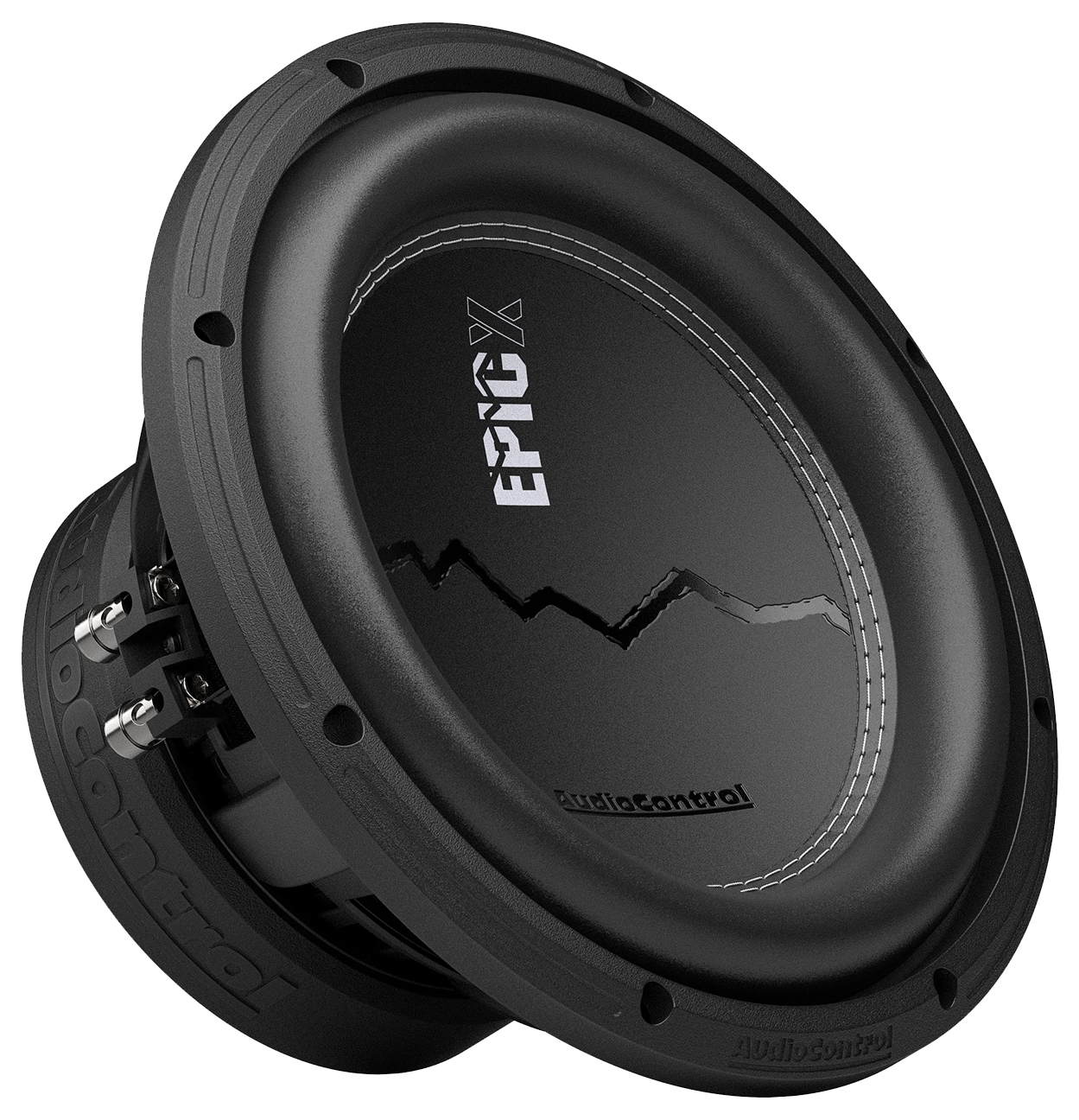

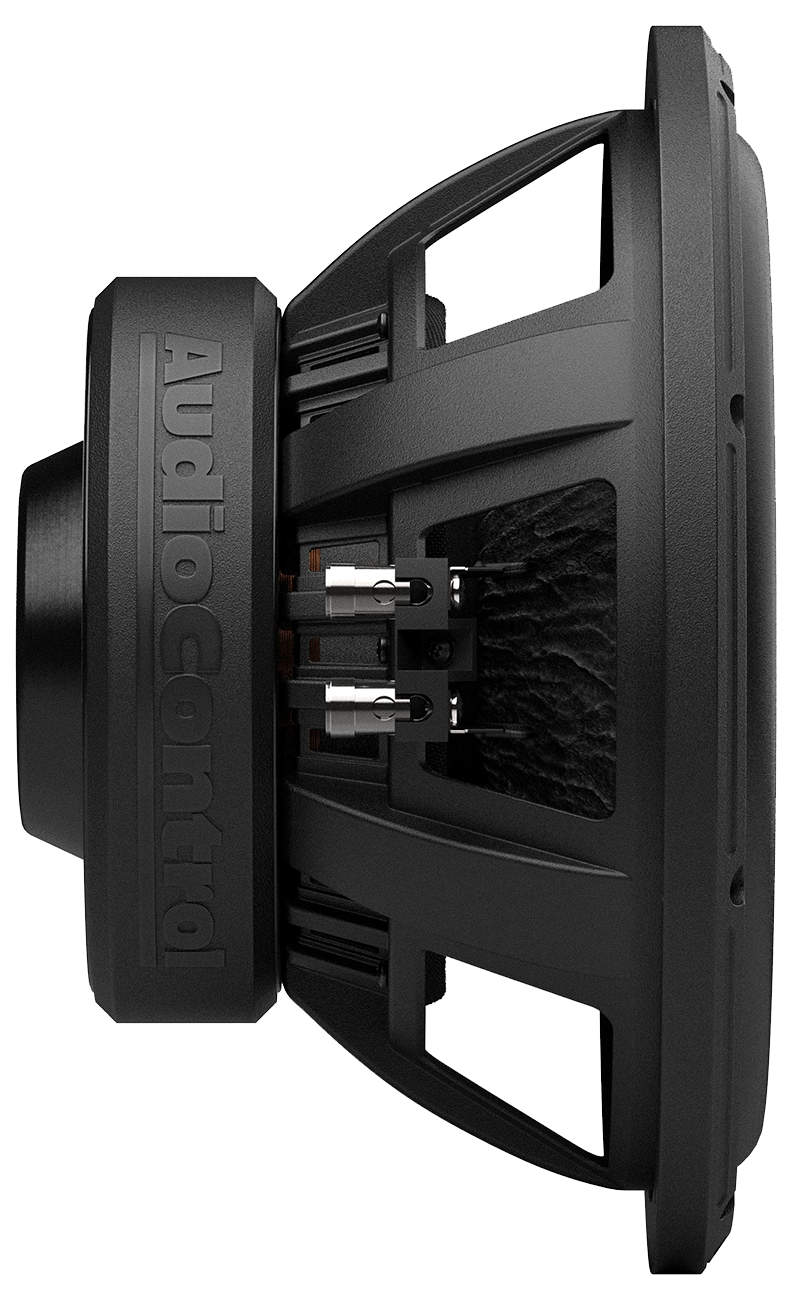

AudioControl EPICX EPICX10 D2
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 39.6 Hz |
| Q factor | 0.53 |
| Sensitivity | 85.1 dB |
| Linear excursion | ± 8.5 mm |
| Program Power | 750 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 39.6Hz
- Mechanical quality factor QMS 6.47
- Electrical quality factor QES 0.57
- Total quality factor QTS 0.53
Large signal parameters
- Maximum linear excursion (one way) xmax 8.5mm
- Air volume displaced at xmax VD 281cm³
- Power handling P 500W
- Program power Pmax 750W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series) LE 3.18mH
- VC Diameter 60mm
Magnet
- Force factor (in series) Bl 15.3N/A
- Motor constant Bl/√RE 8.06N/√W
- Diameter 156mm
- Height 25mm
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 149g
- Moving mass (without air load) MMD 144g
- Material Non-pressed paper
Suspensions
- Stiffness KMS 9.35N/mm
- Compliance CMS 107µm/N
- Equivalent volume to the compliance VAS 19L
- Mechanical resistance RMS 5.78N·s/m
- Surround material Composite foam
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 269mm
- Baffle cutout diameter 233mm
- Overall depth 160mm
- Flange thickness 24mm
- Mounting depth 136mm
- Volume occupied by the driver (estimated) 2.3L
- Frame material Steel
