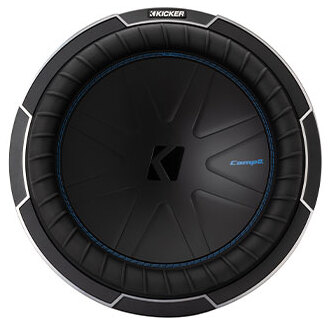

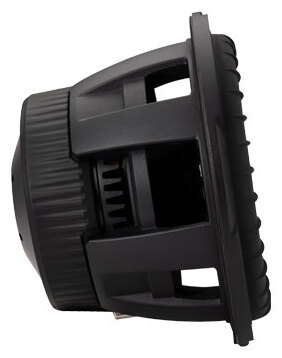

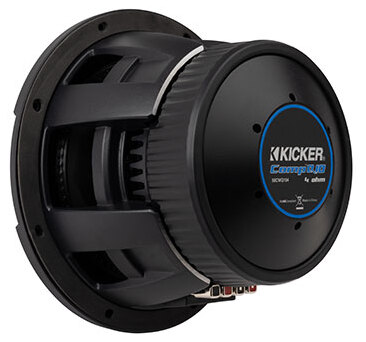

KICKER CompQ 4-Ω 51CWQ104
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 37.7 Hz |
| Q factor | 0.48 |
| Sensitivity | 84.6 dB |
| Linear excursion | ± 19.7 mm |
| Program Power | 1600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.6dB
- Frequency response 24 - 100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 37.7Hz
- Mechanical quality factor QMS 10.65
- Electrical quality factor QES 0.51
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion xmax 19.7mm
- Air volume displaced at xmax VD 682cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series) LE 6.39mH
Magnet
- Force factor (in series) Bl 25.9N/A
- Motor constant Bl/√RE 9.65N/√W
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 198g
- Moving mass (without air load) MMD 194g
Suspensions
- Stiffness KMS 11.2N/mm
- Compliance CMS 90µm/N
- Equivalent volume to the compliance VAS 15.2L
- Mechanical resistance RMS 4.42N·s/m

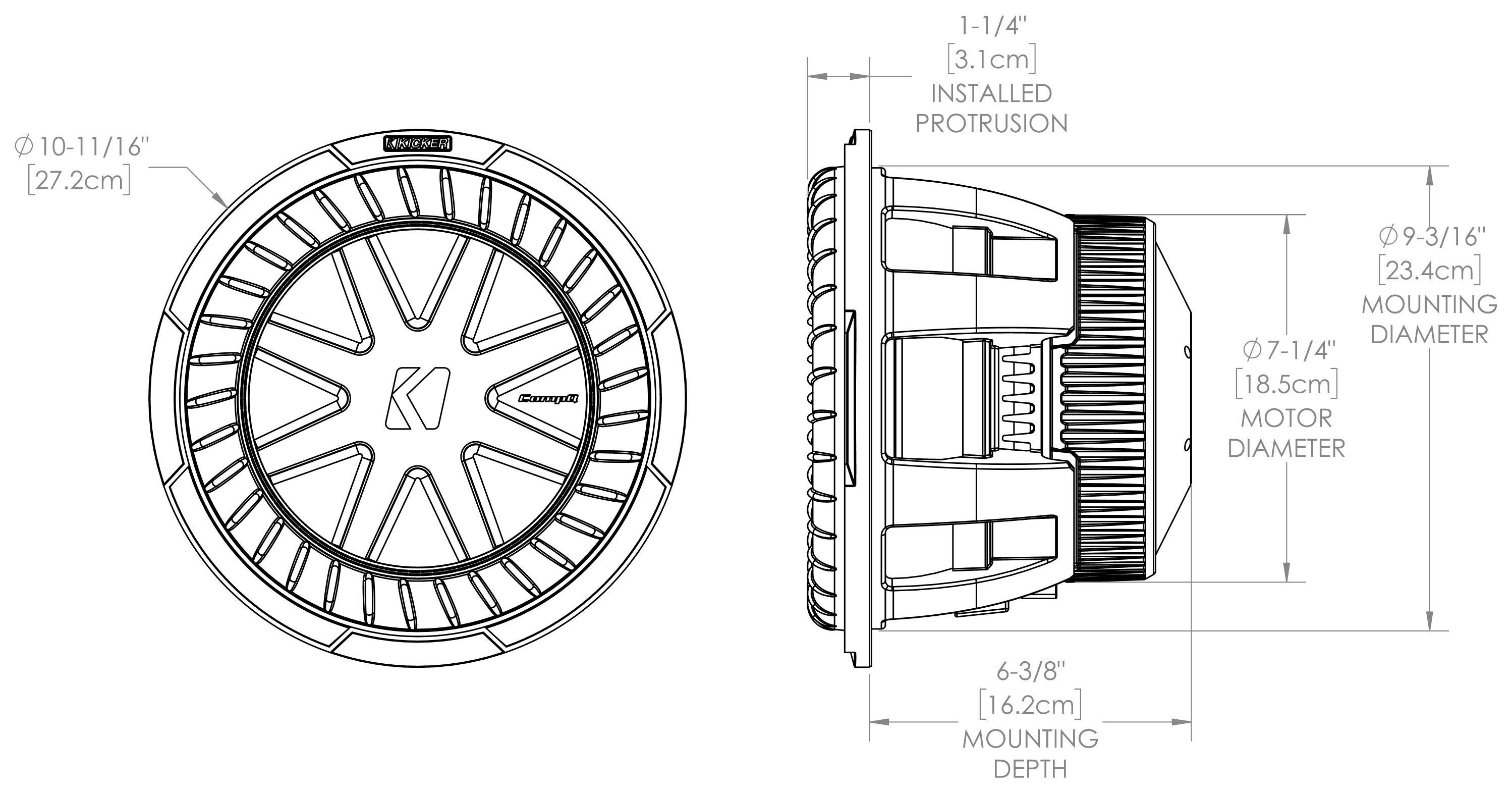

Dimensions
- Nominal diameter 10″
- 254mm
- Baffle cutout diameter 234mm
- Mounting depth 162mm
- Volume occupied by the driver (estimated) 1.5L
