KICKER CompQ 2-Ω 51CWQ102

2x2Ω

Subwoofer

Nominal diameter	10″ / 254 mm
Resonance	35.7 Hz
Q factor	0.42
Sensitivity	84.6 dB
Linear excursion	± 19.7 mm
Program Power	1600 W

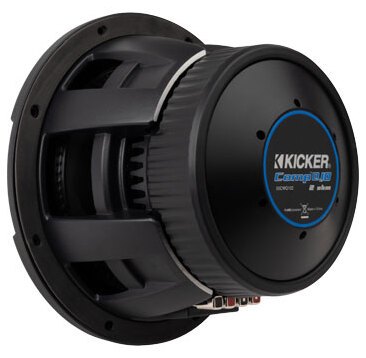

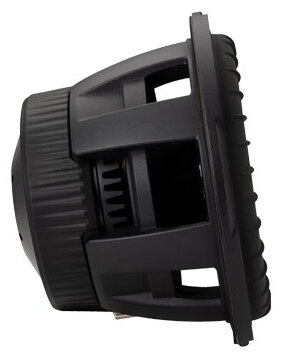

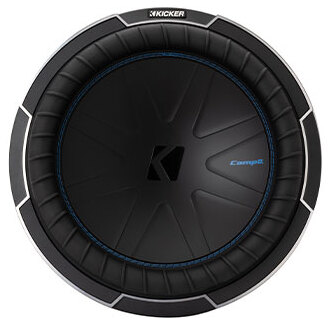

KICKER 51CWQ102 Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 84.6dB
Frequency response 24 - 100Hz

Thiele & Small parameters

Resonance frequency (free air) fS 35.7Hz
Mechanical quality factor QMS 10.07
Electrical quality factor QES 0.44
Total quality factor QTS 0.42

Large signal parameters

Maximum linear excursion xmax 19.7mm
Air volume displaced at xmax VD 682cm³
Power handling P 800W
Program power Pmax 1600W

Voice Coil

Nominal impedance Z 2 x 2Ω
DC resistance (in series) RE 3.8Ω
Inductance (1kHz, in series) LE 4.22mH

Magnet

Force factor (in series) Bl 20.4N/A
Motor constant Bl/√RE 10.4N/√W

Diaphragm

Effective diameter 210mm
Effective area SD 346cm²
Moving mass MMS 212g
Moving mass (without air load) MMD 207g

Suspensions

Stiffness KMS 10.7N/mm
Compliance CMS 94µm/N
Equivalent volume to the compliance VAS 16L
Mechanical resistance RMS 4.72N·s/m

Dimensions

Nominal diameter 10″
254mm
Baffle cutout diameter 234mm
Mounting depth 162mm
Volume occupied by the driver (estimated) 1.5L

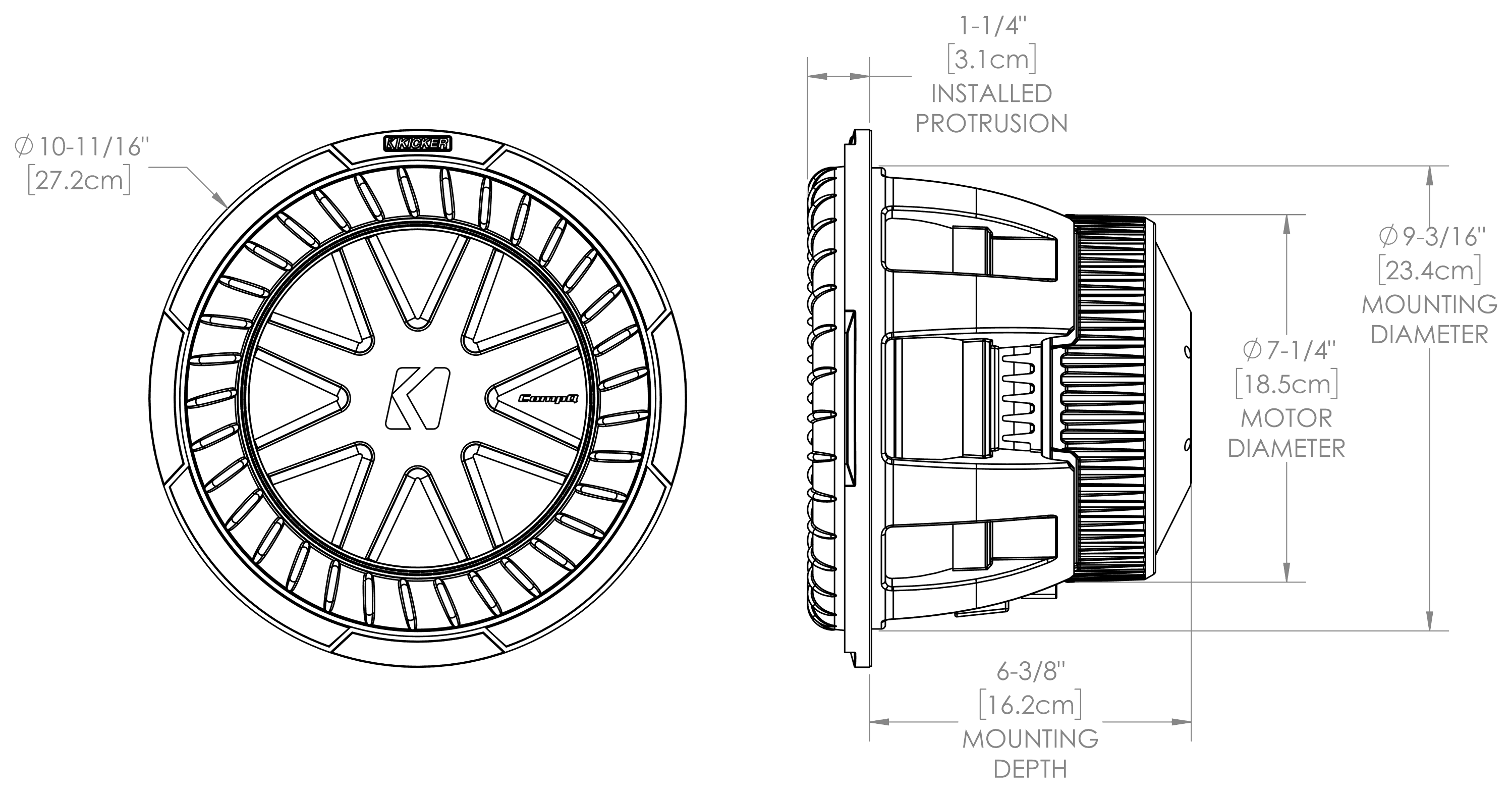

KICKER 51CWQ102 Dimensions
