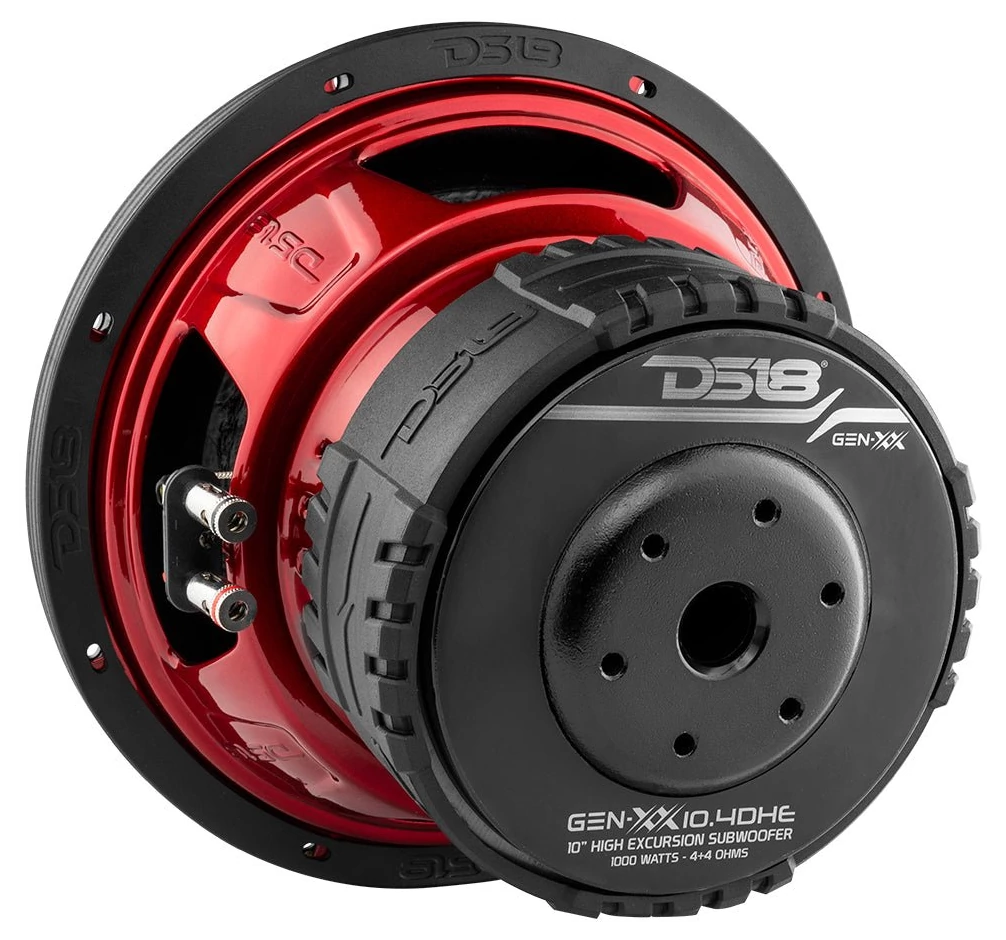

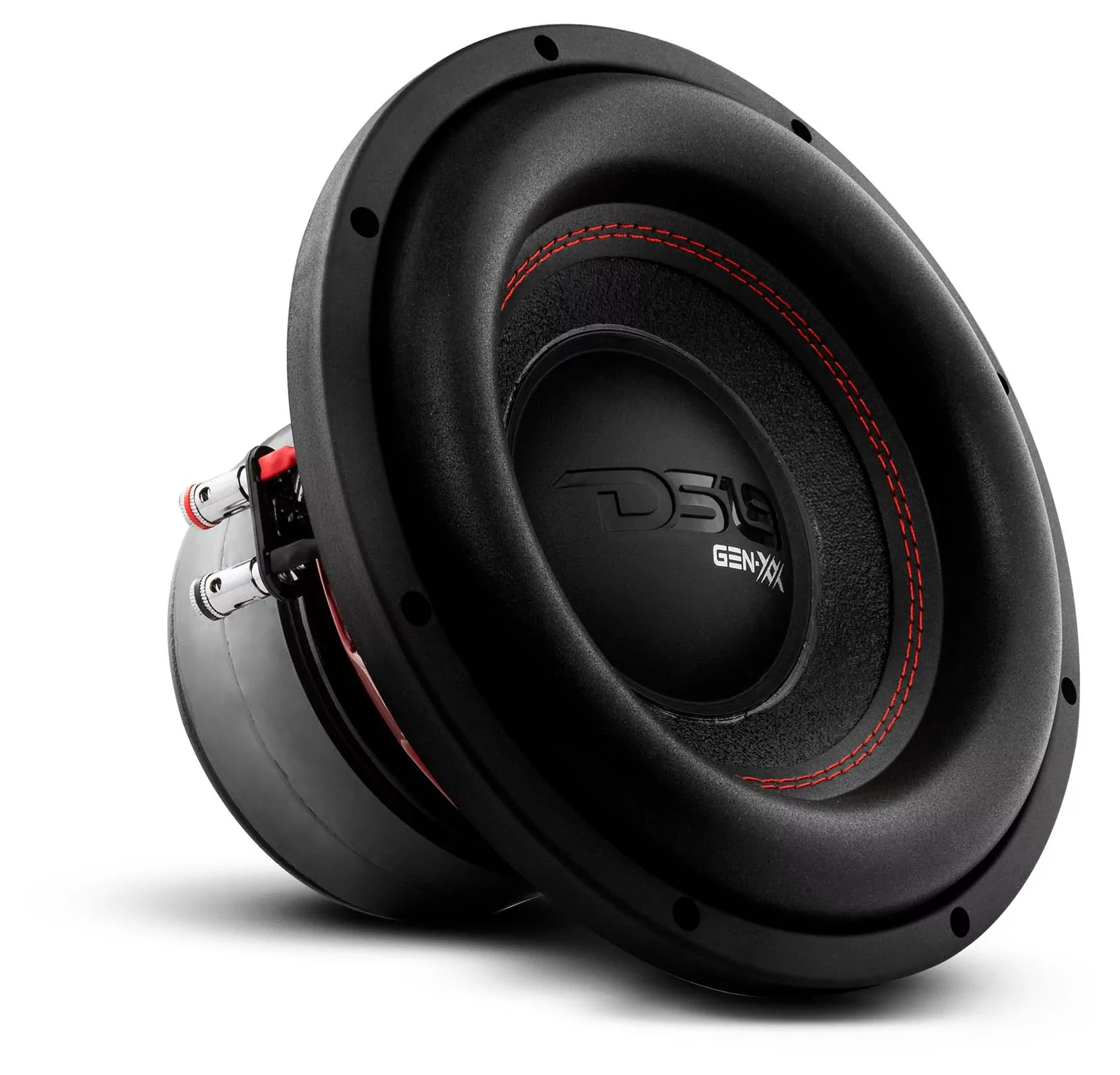

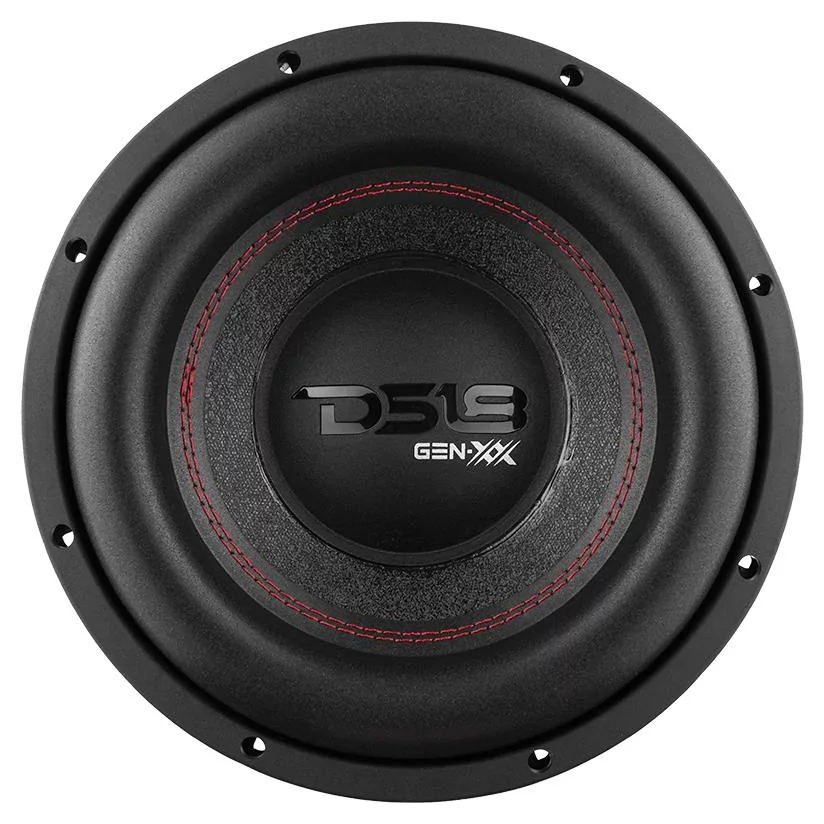

DS18 GEN-XX10.4DHE
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 261 mm |
| Resonance | 37.6 Hz |
| Q factor | 0.43 |
| Sensitivity | 84.9 dB |
| Program Power | 1000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.9dB
- Frequency response 20 - 1100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 37.6Hz
- Mechanical quality factor QMS 4.71
- Electrical quality factor QES 0.48
- Total quality factor QTS 0.43
Large signal parameters
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series) LE 6.74mH
- VC Diameter 50.8mm
- Winding material SV
- Former material Black Aluminum
Magnet
- Force factor (in series) Bl 23N/A
- Motor constant Bl/√RE 9.11N/√W
- Diameter 156mm
- Weight 3.855kg
- Material Ferrite
Diaphragm
- Effective diameter 205mm
- Effective area SD 331cm²
- Moving mass MMS 167g
- Moving mass (without air load) MMD 162g
- Material Paper
Suspensions
- Stiffness KMS 9.35N/mm
- Compliance CMS 107µm/N
- Equivalent volume to the compliance VAS 16.6L
- Mechanical resistance RMS 8.38N·s/m
- Surround material Foam

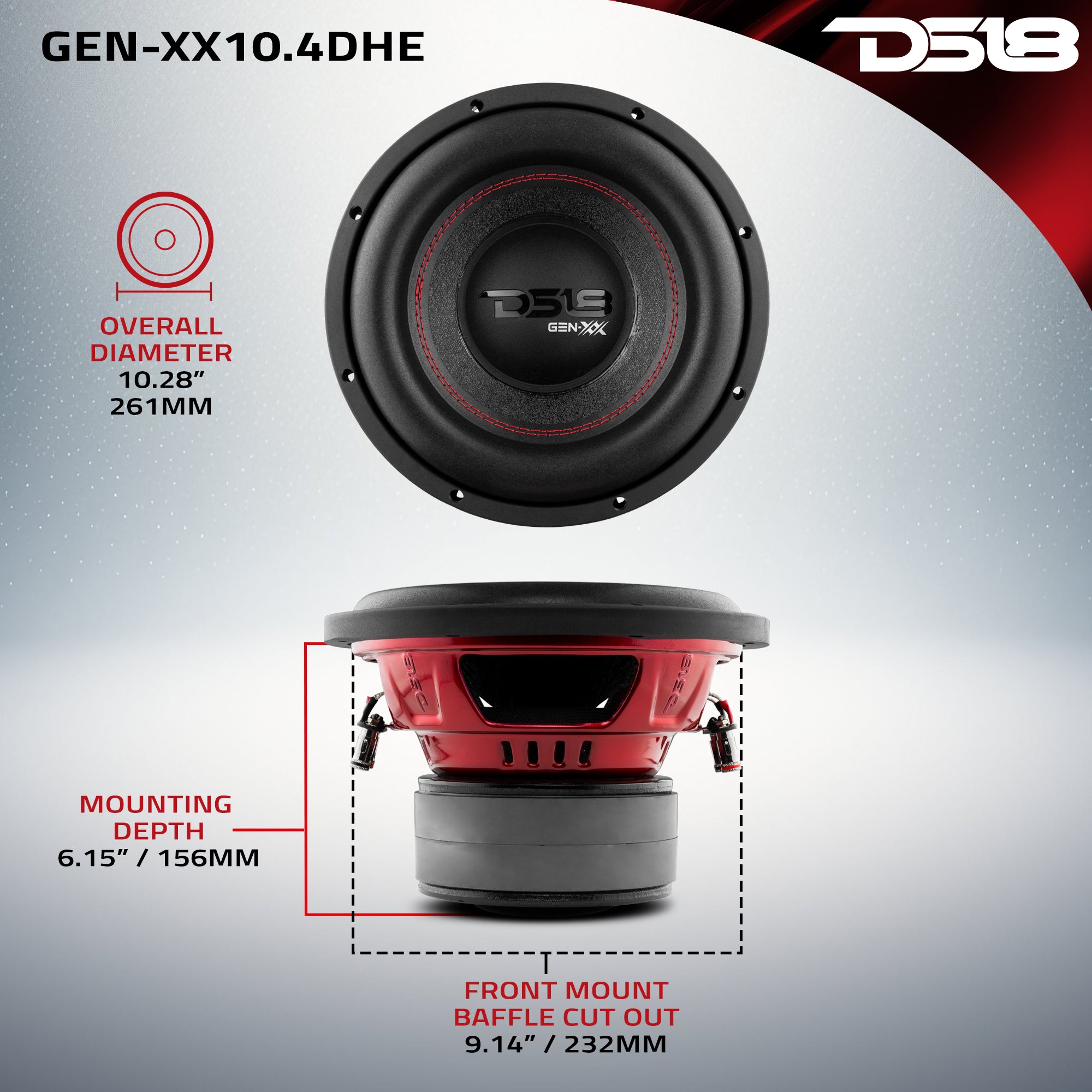

Dimensions
- Nominal diameter 10″
- 261mm
- Overall diameter 261mm
- Baffle cutout diameter 232mm
- Overall depth 183mm
- Flange thickness 27mm
- Mounting depth 156mm
- Volume occupied by the driver 1.82L
- Frame material Steel
