Hertz MPX 690.3 PRO 3 Way

Hertz MPX 690.3 PRO

4 Ω
6 x 9″ 3 Way
fS50 Hz
SD223 cm²
30 - 24000 Hz
QTS0.43
xmax4 mm
SPL1W89.4 dB
Bl/√RE4.16
Pmax260 W
Discontinued

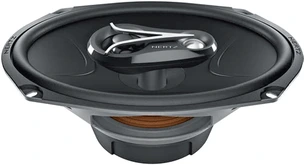

Hertz ECX 690.5 3 Way

Hertz ECX 690.5

4 Ω
6 x 9″ 3 Way
fS59 Hz
SD232 cm²
40 - 23000 Hz
QTS0.73
xmax3.5 mm
SPL1W89.4 dB
Bl/√RE2.75
Pmax300 W
Hertz CX 690 3 Way

Hertz CX 690

4 Ω
6 x 9″ 3 Way
fS70 Hz
SD152 cm²
40 - 23000 Hz
QTS0.67
xmax3.5 mm
SPL1W89.2 dB
Bl/√RE2.7
Pmax200 W
Hertz CPX 690 PRO 3 Way

Hertz CPX 690 PRO

4 Ω
6 x 9″ 3 Way
fS60 Hz
SD232 cm²
35 - 24000 Hz
QTS0.61
xmax5 mm
SPL1W89.3 dB
Bl/√RE3.57
Pmax360 W
