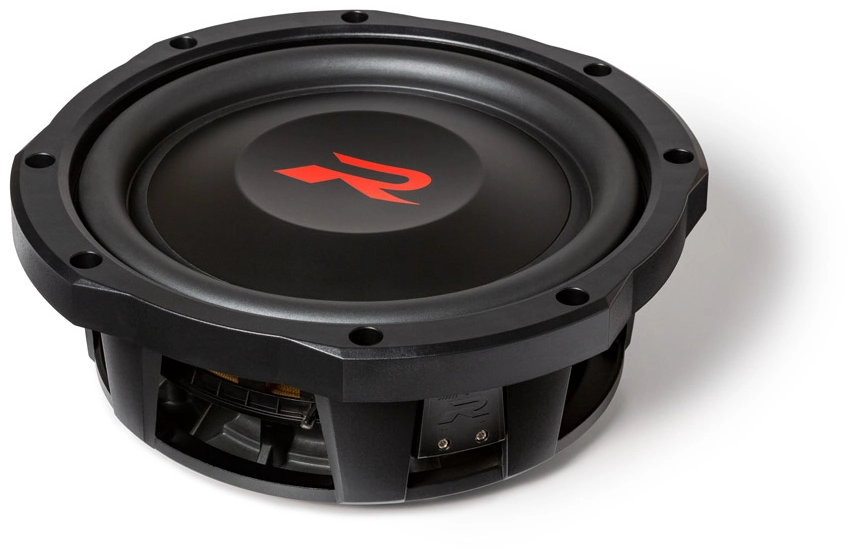

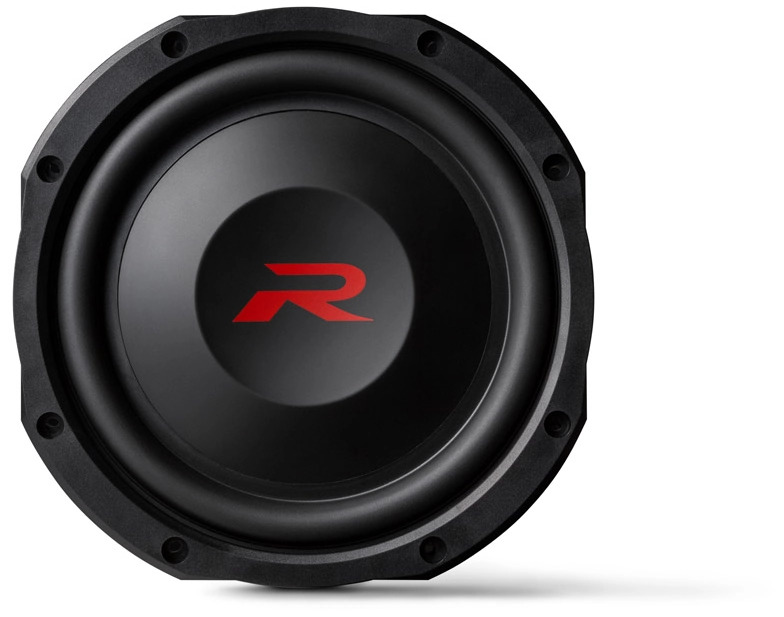

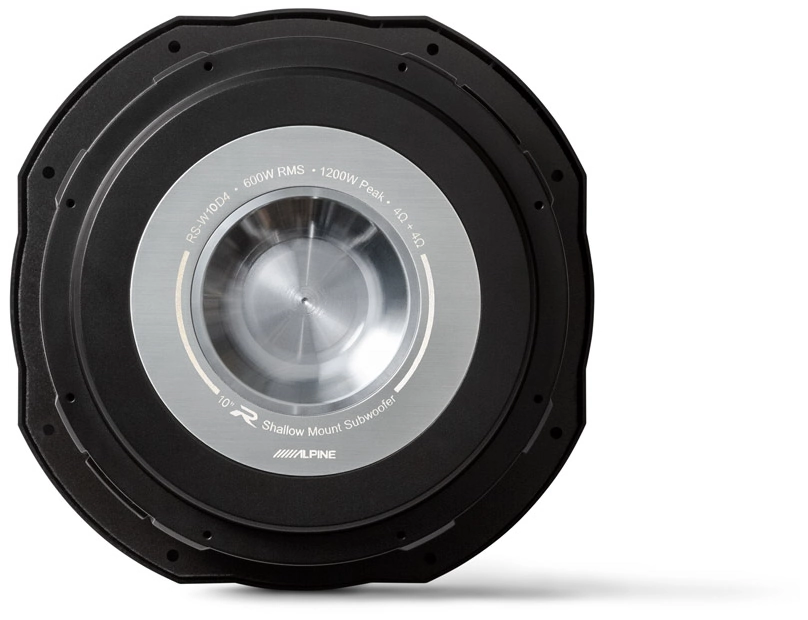

ALPINE RS-W10D4
2x2Ω
2x4Ω
Shallow Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 31 Hz |
| Q factor | 1.19 |
| Sensitivity | 81.4 dB |
| Linear excursion | ± 20 mm |
| Program power | 1200 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.4dB
- Frequency response 25 - 100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 31Hz
- Mechanical quality factor QMS 5.72
- Electrical quality factor QES 1.66
- Total quality factor QTS 1.19
Large signal parameters
- Maximum linear excursion (one way) xmax 20mm
- Maximum excursion before damage xlim 27mm
- Air volume displaced at xmax VD 760cm³
- Power handling P 600W
- Program power Pmax 1200W
- Peak power Ppeak 1800W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series, estimated) LE 5.98mH
- VC Diameter 100mm
- Winding material High Temp USA wire
Magnet
- Force factor (in series) Bl 14N/A
- Motor constant Bl/√RE 5.22N/√W
- Weight 0.295kg
- Material Neodymium (High Grade SH Magnet)
Diaphragm
- Effective diameter 220mm
- Effective area SD 380cm²
- Moving mass (including air load) MMS 231g
- Moving mass MMD 227g
Suspensions
- Stiffness KMS 8.77N/mm
- Compliance CMS 114µm/N
- Equivalent volume to the compliance VAS 23.4L
- Mechanical resistance RMS 7.87N·s/m

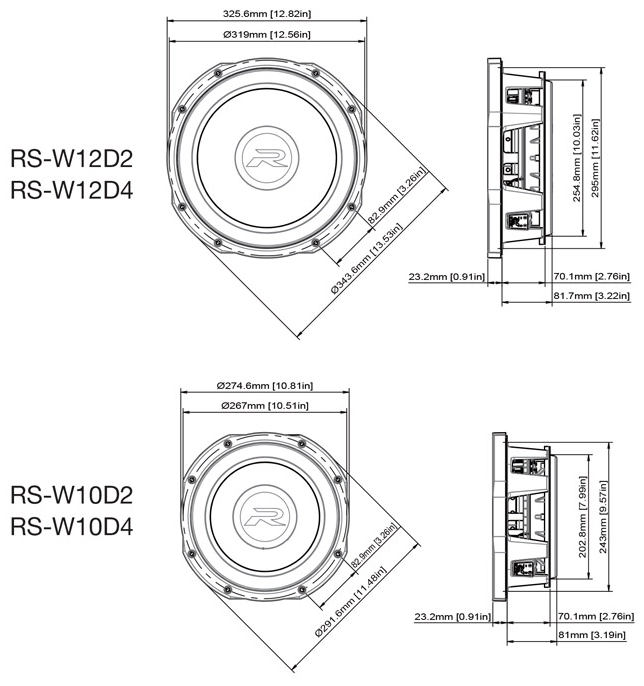

Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 295mm
- Baffle cutout diameter 243mm
- Overall depth 81mm
- Flange thickness 23mm
- Mounting depth 70mm
- Volume occupied by the driver 1.13L
- Frame material Die-Cast Aluminium
