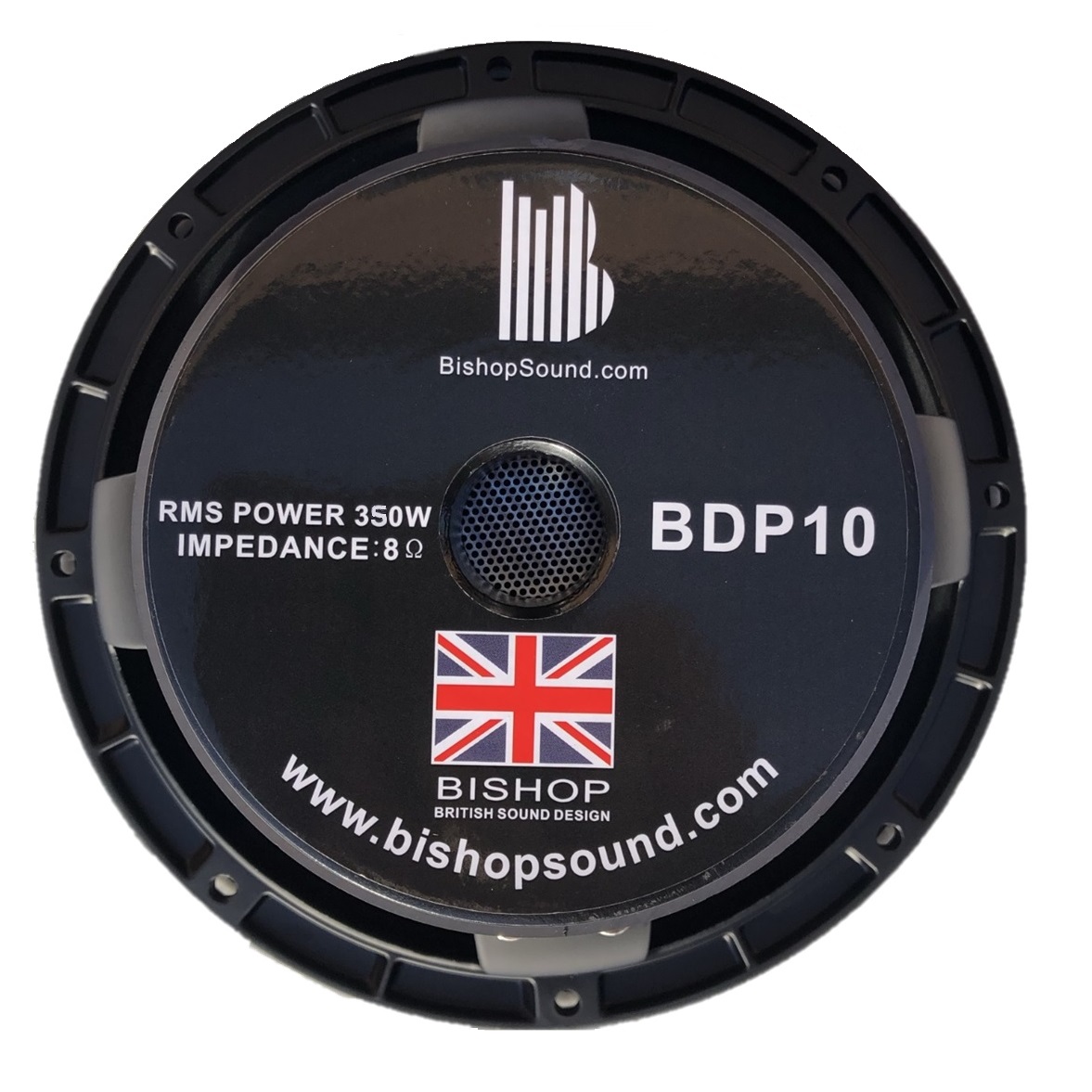

BishopSound BDP10

• Sensitivity (1W, 1m, infinite baffle) SPL1W 97.1dB
• Frequency response 46 - 4000Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 75Hz
• Mechanical quality factor QMS 4.80
• Electrical quality factor QES 0.22
• Total quality factor QTS 0.21

Large signal parameters

• Maximum linear excursion xmax 7mm
• Maximum excursion before damage xlim 13mm
• Air volume displaced at xmax VD 210cm³
• Power handling P 350W
• Program power Pmax 700W

Voice Coil

• Nominal impedance Z 8Ω
• DC resistance RE 5.4Ω
• Inductance (1kHz) LE 0.5mH
• VC Diameter 50mm
• Winding height HVC 14mm
• Winding material Copper
• Former material Glass Fiber

Magnet

• Flux density B 0.5T
• Force factor Bl 19.3N/A
• Motor constant Bl/√RE 8.31N/√W
• Air gap height HAG 10mm
• Material Ferrite Ring

Diaphragm

• Effective diameter 195mm
• Effective area SD 300cm²
• Moving mass MMS 31.9g
• Moving mass (without air load) MMD 27.9g

Suspensions

• Stiffness KMS 11.1N/mm
• Compliance CMS 90µm/N
• Equivalent volume to the compliance VAS 22.4L
• Mechanical resistance RMS 4.3N·s/m

Dimensions

• Nominal diameter 10″
• 258mm
• Overall diameter 258mm
• Overall depth 124mm
• Flange thickness 1mm
• Mounting depth 123mm
• Volume occupied by the driver 6.5L
• Net weight 6.0kg
• Frame material Aluminium
