.webp.webp)
Oberton 10NDG5008 Ω | |
|---|---|
| 10″ Mid Bass | |
| fS | 55.9 Hz |
| SD | 317 cm² |
| 40 - 4000 Hz | |
| QTS | 0.34 |
| xmax | 9.5 mm |
| SPL1W | 92 dB |
| Bl/√RE | 7.42 |
| Pmax | 1000 W |
483 results
Brand
Type
Available on
•
Nominal diameter
″
•
SensitivitySPL1W
dB
Thiele & Small parameters
•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS
Large signal parameters
•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W
Voice Coil & Magnet
•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm
Diaphragm
•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g
Suspensions
•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m
Dimensions
•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
.webp.webp)
REDCATT 10FIND8 Ω | |
|---|---|
| 10″ Mid Bass | |
| fS | 66 Hz |
| SD | 346 cm² |
| QTS | 0.39 |
| xmax | 7.7 mm |
| SPL1W | 94 dB |
| Bl/√RE | 6.61 |
| Pmax | 500 W |
.webp.webp)
REDCATT 121FIND4 Ω | |
|---|---|
| 12″ Mid Bass | |
| fS | 59 Hz |
| SD | 531 cm² |
| QTS | 0.52 |
| xmax | 6.5 mm |
| SPL1W | 94.7 dB |
| Bl/√RE | 5.79 |
| Pmax | 500 W |
.webp.webp)
REDCATT 121NPM8 Ω | |
|---|---|
| 12″ Mid Bass | |
| fS | 50 Hz |
| SD | 531 cm² |
| QTS | 0.16 |
| xmax | 7.1 mm |
| SPL1W | 98.9 dB |
| Bl/√RE | 11.3 |
| Pmax | 900 W |
.webp.webp)
REDCATT 123FPM4 Ω | |
|---|---|
| 12″ Mid Bass | |
| fS | 45 Hz |
| SD | 531 cm² |
| QTS | 0.27 |
| xmax | 5.1 mm |
| SPL1W | 96.3 dB |
| Bl/√RE | 7.27 |
| Pmax | 600 W |
.webp.webp)
REDCATT 123NPM8 Ω | |
|---|---|
| 12″ Mid Bass | |
| fS | 58 Hz |
| SD | 551 cm² |
| QTS | 0.43 |
| xmax | 10.6 mm |
| SPL1W | 93.1 dB |
| Bl/√RE | 9.04 |
| Pmax | 1600 W |
.webp.webp)
REDCATT 12NPM8 Ω | |
|---|---|
| 12″ Mid Bass | |
| fS | 49 Hz |
| SD | 531 cm² |
| QTS | 0.31 |
| xmax | 9.1 mm |
| SPL1W | 95.2 dB |
| Bl/√RE | 7.98 |
| Pmax | 900 W |
.webp.webp)
REDCATT 154FIND8 Ω | |
|---|---|
| 15″ Mid Bass | |
| fS | 38 Hz |
| SD | 881 cm² |
| QTS | 0.40 |
| xmax | 8.6 mm |
| SPL1W | 95.1 dB |
| Bl/√RE | 7.65 |
| Pmax | 1000 W |
.webp.webp)
REDCATT 15FPM8 Ω | |
|---|---|
| 15″ Mid Bass | |
| fS | 41 Hz |
| SD | 908 cm² |
| QTS | 0.36 |
| xmax | 7.7 mm |
| SPL1W | 95.3 dB |
| Bl/√RE | 9.34 |
| Pmax | 2000 W |
.webp.webp)
REDCATT 15NPM8 Ω | |
|---|---|
| 15″ Mid Bass | |
| fS | 48 Hz |
| SD | 855 cm² |
| QTS | 0.46 |
| xmax | 10.6 mm |
| SPL1W | 95 dB |
| Bl/√RE | 8.9 |
| Pmax | 1600 W |
.webp.webp)

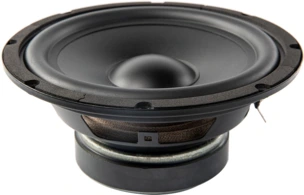

REDCATT 61FHM8 Ω | |
|---|---|
| 6.5″ Mid Bass | |
| fS | 37 Hz |
| SD | 133 cm² |
| QTS | 0.49 |
| xmax | 8.7 mm |
| SPL1W | 86.2 dB |
| Bl/√RE | 2.74 |
| Pmax | 120 W |
.webp.webp)
REDCATT 61FIND16 Ω | |
|---|---|
| 6.5″ Mid Bass | |
| fS | 130 Hz |
| SD | 133 cm² |
| QTS | 0.62 |
| xmax | 3.6 mm |
| SPL1W | 90.8 dB |
| Bl/√RE | 4.05 |
| Pmax | 300 W |
.webp.webp)
REDCATT 61NPM8 Ω | |
|---|---|
| 6.5″ Mid Bass | |
| fS | 92 Hz |
| SD | 143 cm² |
| QTS | 0.36 |
| xmax | 5.2 mm |
| SPL1W | 93 dB |
| Bl/√RE | 4.3 |
| Pmax | 200 W |
.webp.webp)
REDCATT 61XR4 Ω | |
|---|---|
| 6″ Mid Bass | |
| fS | 64 Hz |
| SD | 133 cm² |
| QTS | 0.72 |
| xmax | 9.8 mm |
| SPL1W | 86.1 dB |
| Bl/√RE | 2.71 |
| Pmax | 200 W |
.webp.webp)
REDCATT 6FHM8 Ω | |
|---|---|
| 6″ Mid Bass | |
| fS | 36 Hz |
| SD | 133 cm² |
| QTS | 0.29 |
| xmax | 4.4 mm |
| SPL1W | 88.2 dB |
| Bl/√RE | 3.77 |
| Pmax | 80 W |
.webp.webp)
REDCATT 81FIND8 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 80 Hz |
| SD | 214 cm² |
| QTS | 0.50 |
| xmax | 6.6 mm |
| SPL1W | 92.1 dB |
| Bl/√RE | 4.7 |
| Pmax | 400 W |
.webp.webp)
REDCATT 81NPM8 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 72 Hz |
| SD | 219 cm² |
| QTS | 0.33 |
| xmax | 7.5 mm |
| SPL1W | 91.2 dB |
| Bl/√RE | 7.32 |
| Pmax | 400 W |
.webp.webp)
REDCATT 82FHM8 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 42 Hz |
| SD | 214 cm² |
| QTS | 0.61 |
| xmax | 8.4 mm |
| SPL1W | 86.8 dB |
| Bl/√RE | 3.17 |
| Pmax | 120 W |
.webp.webp)
REDCATT 8FIND8 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 70 Hz |
| SD | 227 cm² |
| QTS | 0.25 |
| xmax | 4.7 mm |
| SPL1W | 95.5 dB |
| Bl/√RE | 5.99 |
| Pmax | 400 W |
.webp.webp)
REDCATT 8NPM8 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 79 Hz |
| SD | 214 cm² |
| QTS | 0.29 |
| xmax | 5.1 mm |
| SPL1W | 93.8 dB |
| Bl/√RE | 6.11 |
| Pmax | 400 W |
.jpg.webp)
Ciare FXI3.218 Ω | |
|---|---|
| 3″ Full-range | |
| fS | 90 Hz |
| SD | 29 cm² |
| 80 - 20000 Hz | |
| QTS | 0.44 |
| xmax | 2 mm |
| SPL1W | 85.2 dB |
| Bl/√RE | 1.5 |
| Pmax | 50 W |
.jpg.webp)
Ciare NDI3.218 Ω | |
|---|---|
| 3″ Full-range | |
| fS | 90 Hz |
| SD | 29 cm² |
| 80 - 20000 Hz | |
| QTS | 0.38 |
| xmax | 2 mm |
| SPL1W | 87.3 dB |
| Bl/√RE | 1.62 |
| Pmax | 50 W |
.jpg.webp)
Ciare NDI3.258 Ω | |
|---|---|
| 3″ Full-range | |
| fS | 77 Hz |
| SD | 29 cm² |
| 70 - 20000 Hz | |
| QTS | 0.40 |
| xmax | 3.9 mm |
| SPL1W | 83.8 dB |
| Bl/√RE | 1.74 |
| Pmax | 80 W |
.jpg.webp)
ATOHM LD150CR044 Ω | |
|---|---|
| 6″ Mid Bass | |
| fS | 59.4 Hz |
| SD | 105 cm² |
| 59 - 3000 Hz | |
| QTS | 0.53 |
| xmax | 6 mm |
| SPL1W | 87.4 dB |
| Bl/√RE | 2.74 |
| Pmax | 100 W |
.jpg.webp)
ATOHM C150DCR088 Ω | |
|---|---|
| 6″ Mid Bass | |
| fS | 49 Hz |
| SD | 97.7 cm² |
| 49 - 4000 Hz | |
| QTS | 0.51 |
| xmax | 6 mm |
| SPL1W | 85.4 dB |
| Bl/√RE | 2.55 |
| Pmax | 160 W |
.jpg.webp)
ATOHM C150DCR044 Ω | |
|---|---|
| 6″ Mid Bass | |
| fS | 48 Hz |
| SD | 97.7 cm² |
| 48 - 4000 Hz | |
| QTS | 0.42 |
| xmax | 6 mm |
| SPL1W | 85.9 dB |
| Bl/√RE | 2.9 |
| Pmax | 160 W |
.webp.webp)

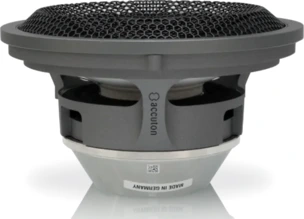

accuton C6.5AM-6-6704 Ω | |
|---|---|
| 7″ Mid Bass | |
| fS | 66.8 Hz |
| SD | 137 cm² |
| 35 - 2800 Hz | |
| QTS | 0.55 |
| xmax | 6 mm |
| SPL1W | 88.5 dB |
| Bl/√RE | 3.27 |
| Pmax | 240 W |
.webp.webp)
accuton C165AM-4-7704 Ω | |
|---|---|
| 7″ Mid Bass | |
| fS | 66.8 Hz |
| SD | 137 cm² |
| 35 - 2800 Hz | |
| QTS | 0.55 |
| xmax | 6 mm |
| SPL1W | 88.5 dB |
| Bl/√RE | 3.27 |
| Pmax | 240 W |
.webp.webp)

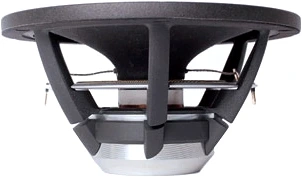

SB Acoustics MW16P-1212 Ω | |
|---|---|
| 6.5″ Mid Bass | |
| fS | 30.6 Hz |
| SD | 119 cm² |
| QTS | 0.37 |
| xmax | 6.2 mm |
| SPL1W | 87.5 dB |
| Bl/√RE | 2.34 |
| Pmax | 100 W |
.png.webp)
ETON 8-212/C8/37 HEX8 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 27 Hz |
| SD | 222 cm² |
| 40 - 2000 Hz | |
| QTS | 0.31 |
| xmax | 14.2 mm |
| SPL1W | 88 dB |
| Bl/√RE | 3.84 |
| Pmax | 240 W |
.png.webp)
ETON 7-312/C8/32 HEX8 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 34 Hz |
| SD | 137 cm² |
| 50 - 3000 Hz | |
| QTS | 0.29 |
| xmax | 8.8 mm |
| SPL1W | 87.8 dB |
| Bl/√RE | 3.4 |
| Pmax | 160 W |
.png.webp)
ETON 7-212/C8/32 HEX8 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 33 Hz |
| SD | 137 cm² |
| 50 - 3000 Hz | |
| QTS | 0.29 |
| xmax | 8.8 mm |
| SPL1W | 87.5 dB |
| Bl/√RE | 3.4 |
| Pmax | 160 W |
.png.webp)
ETON 5-312/C8/25 HEX8 Ω | |
|---|---|
| 6″ Mid Bass | |
| fS | 53 Hz |
| SD | 80 cm² |
| 50 - 4000 Hz | |
| QTS | 0.44 |
| xmax | 7.5 mm |
| SPL1W | 85.7 dB |
| Bl/√RE | 2.45 |
| Pmax | 100 W |
.png.webp)
ETON 5-212/C8/25 HEX8 Ω | |
|---|---|
| 5″ Mid Bass | |
| fS | 57 Hz |
| SD | 55 cm² |
| 100 - 5400 Hz | |
| QTS | 0.39 |
| xmax | 5.5 mm |
| SPL1W | 85.8 dB |
| Bl/√RE | 2.39 |
| Pmax | 100 W |
.png.webp)
ETON 4-312/C8/25 HEX8 Ω | |
|---|---|
| 5″ Mid Bass | |
| fS | 60 Hz |
| SD | 55 cm² |
| 100 - 5400 Hz | |
| QTS | 0.39 |
| xmax | 5.5 mm |
| SPL1W | 86.4 dB |
| Bl/√RE | 2.39 |
| Pmax | 100 W |
.png.webp)
ETON 4-212/C8/25 HEX8 Ω | |
|---|---|
| 5″ Mid Bass | |
| fS | 57 Hz |
| SD | 55 cm² |
| 100 - 5400 Hz | |
| QTS | 0.39 |
| xmax | 5.5 mm |
| SPL1W | 85.8 dB |
| Bl/√RE | 2.39 |
| Pmax | 100 W |
.png.webp)
ETON 3-212/C8/25 HEX8 Ω | |
|---|---|
| 5″ Mid Bass | |
| fS | 57 Hz |
| SD | 55 cm² |
| 100 - 5400 Hz | |
| QTS | 0.39 |
| xmax | 5.5 mm |
| SPL1W | 85.8 dB |
| Bl/√RE | 2.39 |
| Pmax | 100 W |
.jpg.webp)
PRV Audio 12MB2000FT-NDY8 Ω | |
|---|---|
| 12″ Mid Bass | |
| fS | 55.1 Hz |
| SD | 585 cm² |
| 72 - 5200 Hz | |
| QTS | 0.30 |
| xmax | 6 mm |
| SPL1W | 97.1 dB |
| Bl/√RE | 7.86 |
| Pmax | 2000 W |
.jpg.webp)
Kartesian Wom180_vMS8 Ω | |
|---|---|
| 7″ Mid Bass | |
| fS | 46 Hz |
| SD | 137 cm² |
| 40 - 2500 Hz | |
| QTS | 0.38 |
| xmax | 8 mm |
| SPL1W | 88.8 dB |
| Bl/√RE | 3.18 |
| Pmax | 160 W |
.webp.webp)
Kartesian Lom120_vMS4 Ω | |
|---|---|
| 4.5″ Mid Bass | |
| fS | 72 Hz |
| SD | 52.8 cm² |
| 80 - 4000 Hz | |
| QTS | 0.35 |
| xmax | 4 mm |
| SPL1W | 87.2 dB |
| Bl/√RE | 2.6 |
| Pmax | 100 W |
