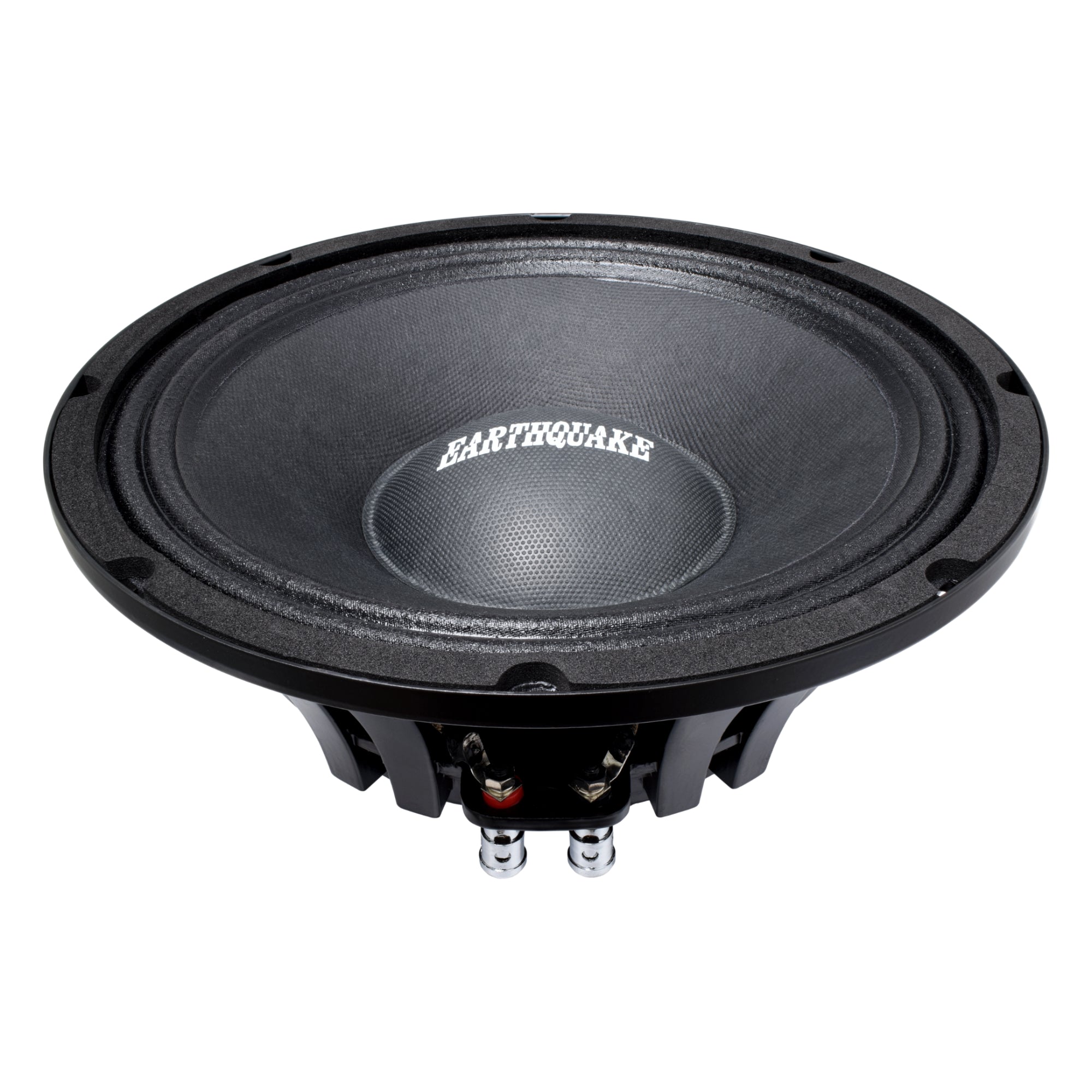

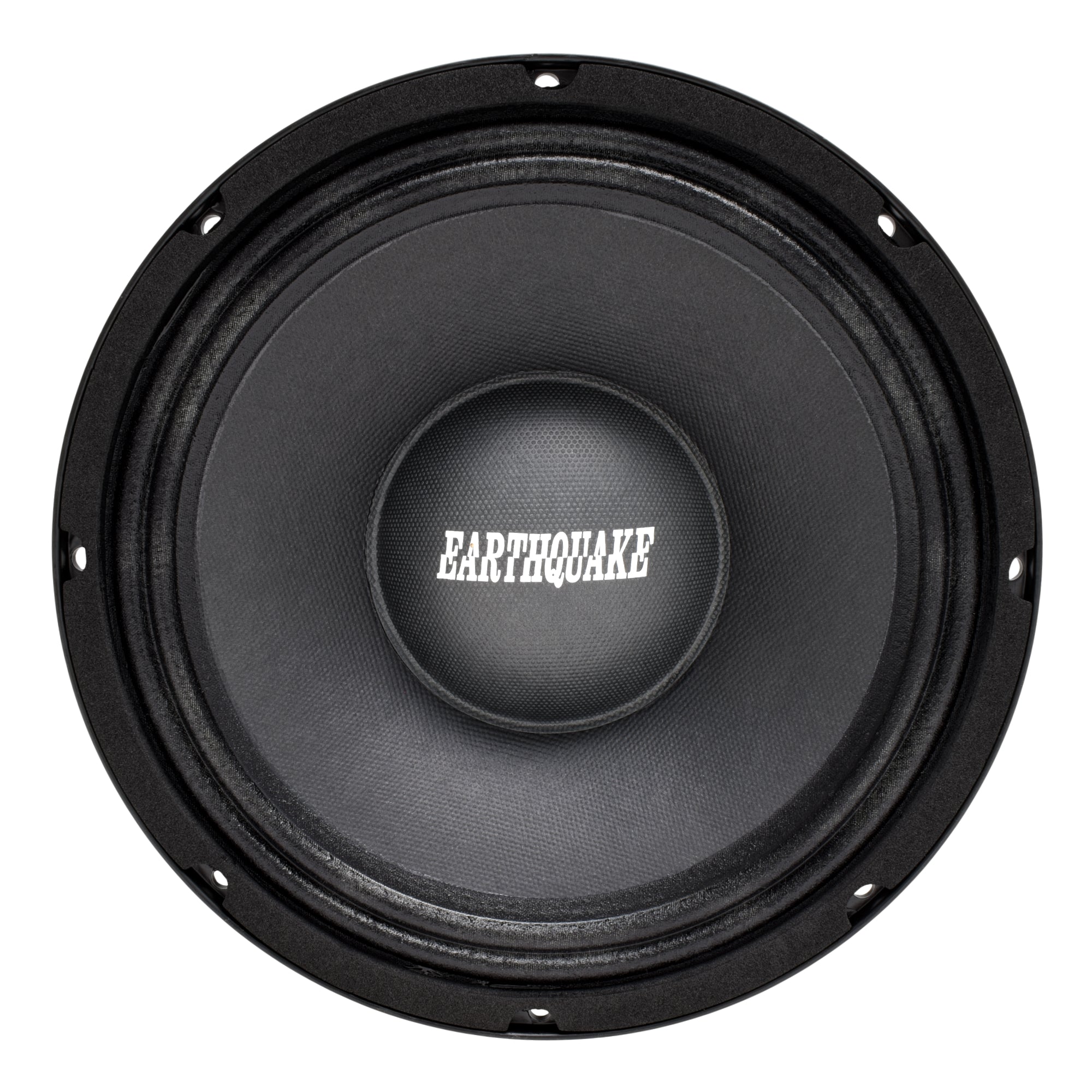

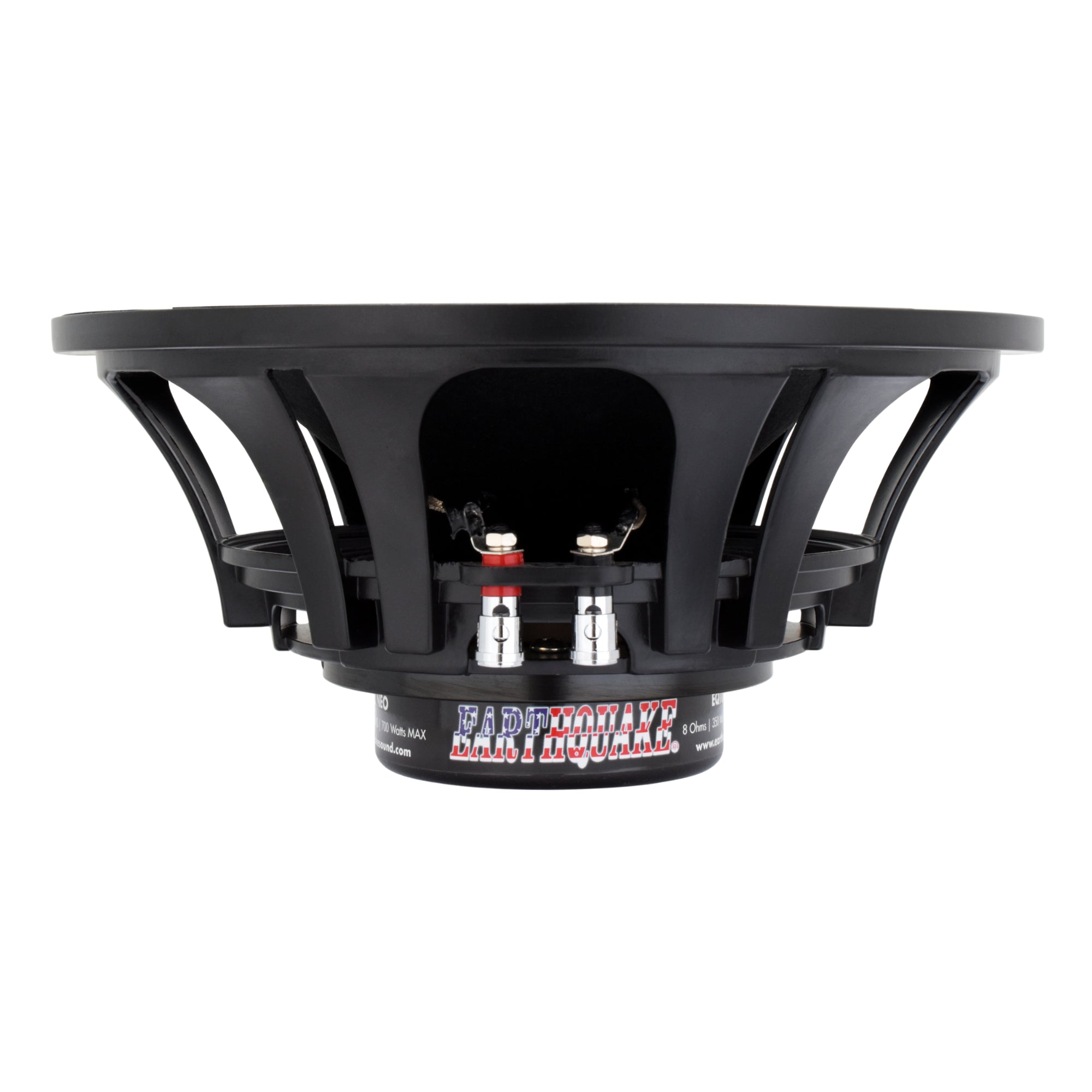

Earthquake EQ1000 NEO
8Ω
Mid Bass
| Nominal diameter | 10″ / 254 mm |
| Resonance | 70 Hz |
| Q factor | 0.35 |
| Sensitivity | 96.2 dB |
| Program power | 700 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 96.2dB
- Frequency response 69 - 6000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 70Hz
- Mechanical quality factor QMS 3.74
- Electrical quality factor QES 0.39
- Total quality factor QTS 0.35
Large signal parameters
- Power handling P 350W
- Program power Pmax 700W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.8Ω
- Inductance (1kHz, estimated) LE 1.1mH
- VC Diameter 63.5mm
- Winding material Copper
Magnet
- Force factor Bl 12.8N/A
- Motor constant Bl/√RE 5.31N/√W
- Material Neodymium
Diaphragm
- Effective diameter 216mm
- Effective area SD 366cm²
- Moving mass (including air load) MMS 25g
- Moving mass MMD 20g
- Material Non-pressed paper
Suspensions
- Stiffness KMS 4.81N/mm
- Compliance CMS 208µm/N
- Equivalent volume to the compliance VAS 39.7L
- Mechanical resistance RMS 2.94N·s/m
- Surround material Cloth
Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 260mm
- Baffle cutout diameter 235mm
- Overall depth 120mm
- Flange thickness 8mm
- Mounting depth 112mm
- Volume occupied by the driver (estimated) 1.5L
- Frame material Die cast Aluminium
