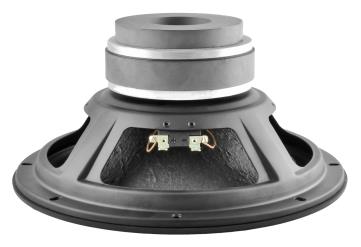

SICA 10 H 2 CS
8Ω
Mid Bass
| Nominal diameter | 10″ / 266 mm |
| Resonance | 30.3 Hz |
| Q factor | 0.37 |
| Sensitivity | 89.1 dB |
| Linear excursion | ± 6 mm |
| Program Power | 400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89.1dB

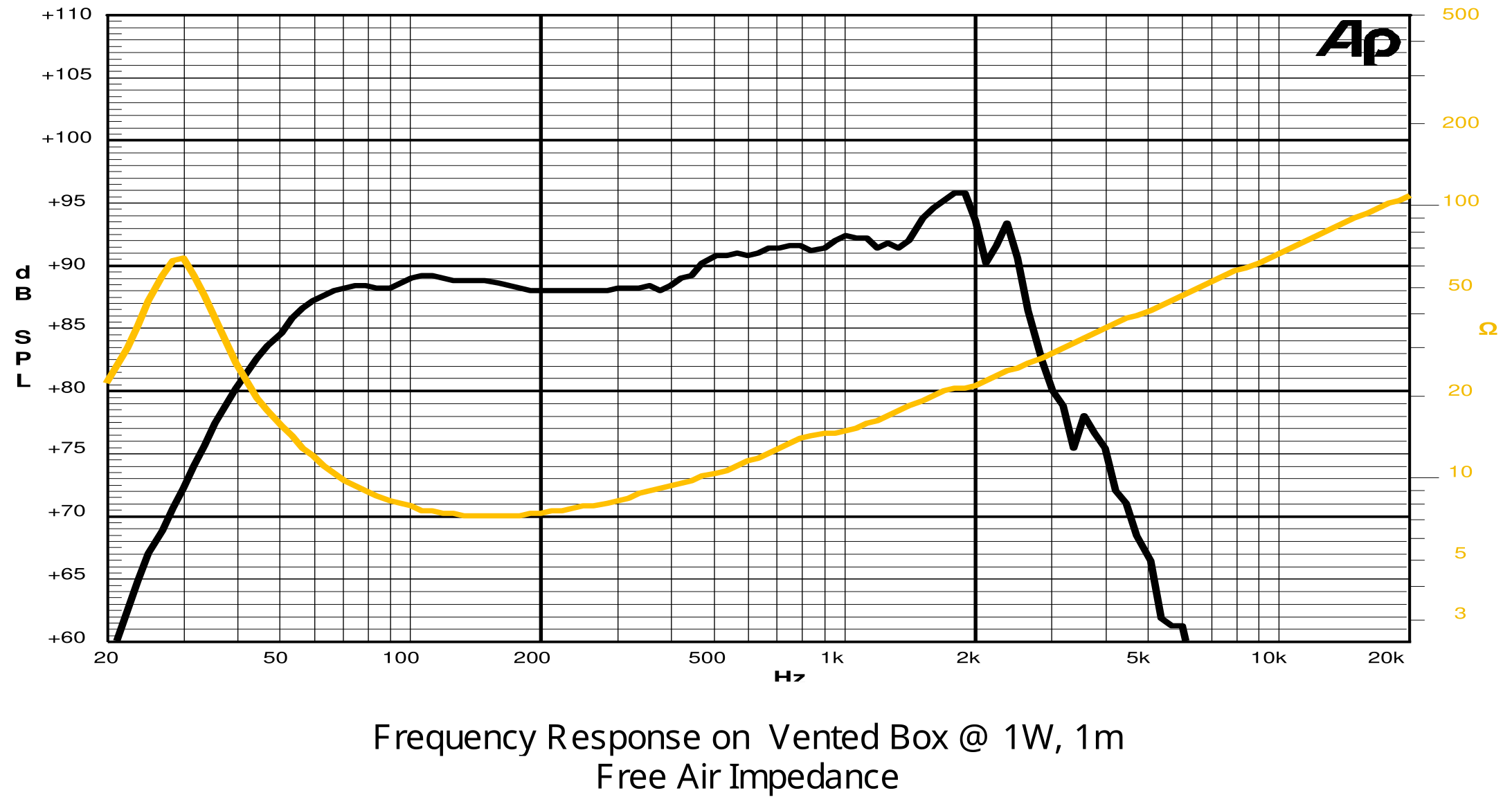

- Frequency response 30 - 2500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30.3Hz
- Mechanical quality factor QMS 4.00
- Electrical quality factor QES 0.41
- Total quality factor QTS 0.37
Large signal parameters
- Maximum linear excursion (one way) xmax 6mm
- Air volume displaced at xmax VD 204cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.1Ω
- Inductance (1kHz) LE 1.58mH
- VC Diameter 50mm
- Winding height HVC 8mm
- Winding material Copper
- Former material Glass Fiber
Magnet
- Flux density B 0.87T
- Force factor Bl 12.4N/A
- Motor constant Bl/√RE 5.01N/√W
- Weight 1.356kg
Diaphragm
- Effective diameter 208mm
- Effective area SD 340cm²
- Moving mass MMS 53.7g
- Moving mass (without air load) MMD 49g
- Material Paper
Suspensions
- Stiffness KMS 1.95N/mm
- Compliance CMS 514µm/N
- Equivalent volume to the compliance VAS 84.3L
- Mechanical resistance RMS 2.56N·s/m
- Surround material Rubber

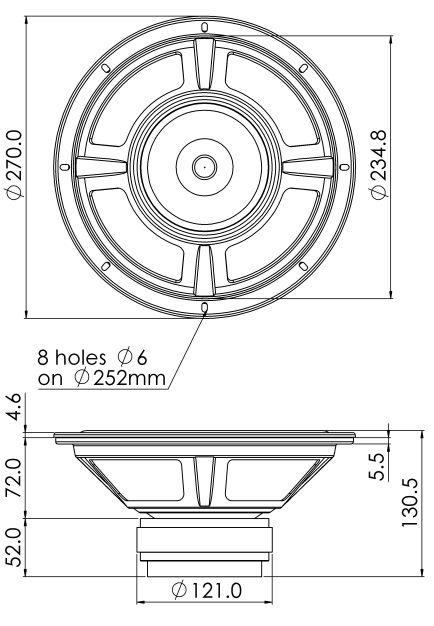

Dimensions
- Nominal diameter 10″
- 266mm
- Overall diameter 270mm
- Baffle cutout diameter 237mm
- Overall depth 131mm
- Volume occupied by the driver (estimated) 1.6L
- Net weight 3.5kg
