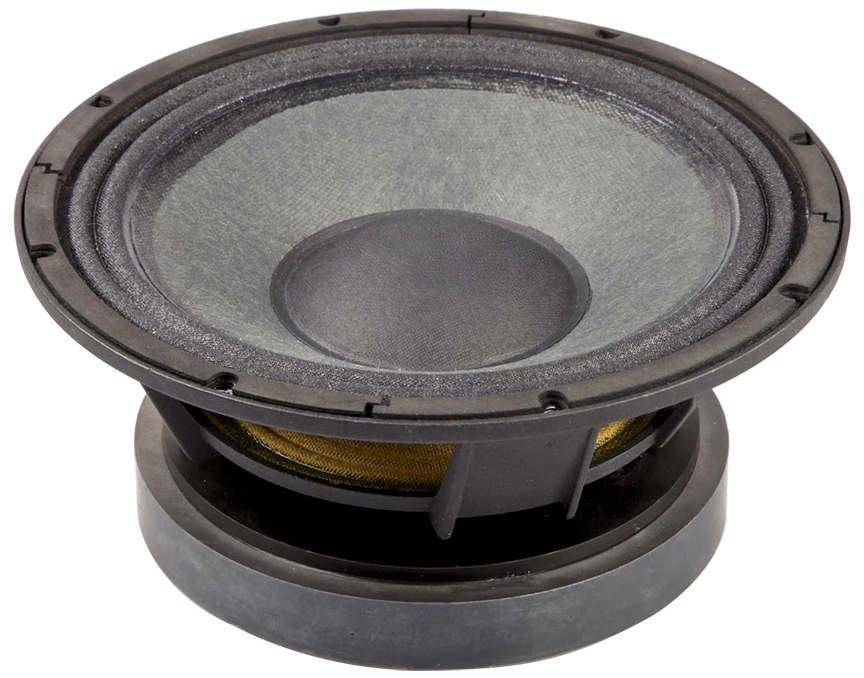

REDCATT 10FIND
8Ω
Mid Bass
| Nominal diameter | 10″ / 262 mm |
| Resonance | 66 Hz |
| Q factor | 0.39 |
| Sensitivity | 94 dB |
| Linear excursion | ± 7.7 mm |
| Program Power | 500 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94dB
Thiele & Small parameters
- Resonance frequency (free air) fS 66Hz
- Mechanical quality factor QMS 13.13
- Electrical quality factor QES 0.41
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion (one way) xmax 7.7mm
- Air volume displaced at xmax VD 266cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 0.68mH
- VC Diameter 63.5mm
- Winding height HVC 13.5mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 15.5N/A
- Motor constant Bl/√RE 6.61N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 41.3g
- Moving mass (without air load) MMD 36.6g
- Material Paper
Suspensions
- Stiffness KMS 7.41N/mm
- Compliance CMS 135µm/N
- Equivalent volume to the compliance VAS 23.5L
- Mechanical resistance RMS 1.3N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 262mm
- Overall diameter 262mm
- Baffle cutout diameter 230mm
- Mounting depth 109mm
- Volume occupied by the driver (estimated) 2L
- Net weight 4.55kg
.webp)
.webp)
