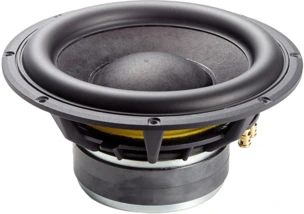

REDCATT 101FHW Subwoofer

REDCATT 101FHW

4 Ω
10″ Subwoofer
fS27 Hz
SD330 cm²
QTS0.30
xmax11.3 mm
SPL1W86.2 dB
Bl/√RE6.69
Pmax400 W

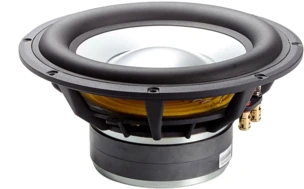

REDCATT 10FHW Subwoofer

REDCATT 10FHW

4 Ω
10″ Subwoofer
fS25 Hz
SD330 cm²
QTS0.39
xmax14.7 mm
SPL1W93.7 dB
Bl/√RE6.69
Pmax400 W

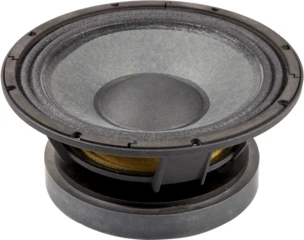

REDCATT 10FIND Mid Bass

REDCATT 10FIND

8 Ω
10″ Mid Bass
fS66 Hz
SD346 cm²
QTS0.39
xmax7.7 mm
SPL1W94 dB
Bl/√RE6.61
Pmax500 W
REDCATT 10NPM Woofer

REDCATT 10NPM

8 Ω
10″ Woofer
fS58 Hz
SD363 cm²
QTS0.33
xmax7.7 mm
SPL1W93.7 dB
Bl/√RE7.02
Pmax400 W

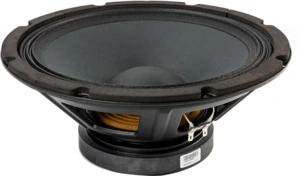

REDCATT 121FIND Mid Bass

REDCATT 121FIND

4 Ω
12″ Mid Bass
fS59 Hz
SD531 cm²
QTS0.52
xmax6.5 mm
SPL1W94.7 dB
Bl/√RE5.79
Pmax500 W

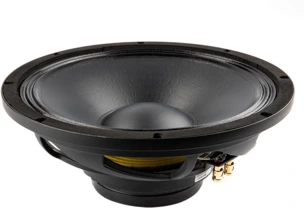

REDCATT 121NPM Mid Bass

REDCATT 121NPM

8 Ω
12″ Mid Bass
fS50 Hz
SD531 cm²
QTS0.16
xmax7.1 mm
SPL1W98.9 dB
Bl/√RE11.3
Pmax900 W

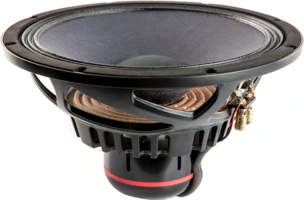

REDCATT 121XR Subwoofer

REDCATT 121XR

8 Ω
12″ Subwoofer
fS46 Hz
SD531 cm²
QTS0.33
xmax12.7 mm
SPL1W95 dB
Bl/√RE6.76
Pmax1000 W

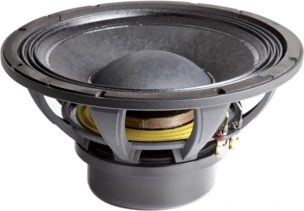

REDCATT 122NPW Woofer

REDCATT 122NPW

8 Ω
12″ Woofer
fS35 Hz
SD551 cm²
QTS0.17
xmax9.6 mm
SPL1W96.6 dB
Bl/√RE11.5
Pmax1600 W

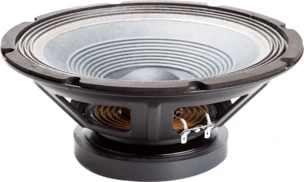

REDCATT 123FPM Mid Bass

REDCATT 123FPM

4 Ω
12″ Mid Bass
fS45 Hz
SD531 cm²
QTS0.27
xmax5.1 mm
SPL1W96.3 dB
Bl/√RE7.27
Pmax600 W

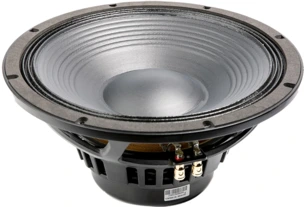

REDCATT 123NPM Mid Bass

REDCATT 123NPM

8 Ω
12″ Mid Bass
fS58 Hz
SD551 cm²
QTS0.43
xmax10.6 mm
SPL1W93.1 dB
Bl/√RE9.04
Pmax1600 W

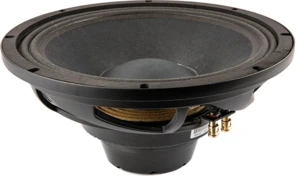

REDCATT 12NPM Mid Bass

REDCATT 12NPM

8 Ω
12″ Mid Bass
fS49 Hz
SD531 cm²
QTS0.31
xmax9.1 mm
SPL1W95.2 dB
Bl/√RE7.98
Pmax900 W

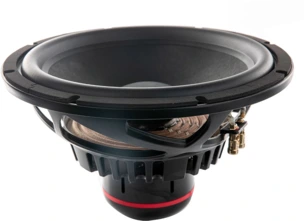

REDCATT 12XR Woofer

REDCATT 12XR

8 Ω
12″ Woofer
fS35 Hz
SD531 cm²
QTS0.68
xmax14.1 mm
SPL1W89.7 dB
Bl/√RE5.15
Pmax1000 W

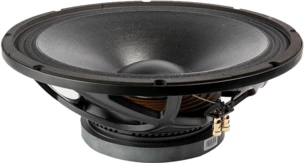

REDCATT 152FIND Subwoofer

REDCATT 152FIND

8 Ω
15″ Subwoofer
fS37 Hz
SD804 cm²
QTS0.44
xmax10 mm
SPL1W93.1 dB
Bl/√RE8.58
Pmax1600 W

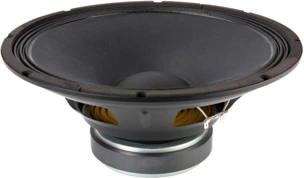

REDCATT 154FIND Mid Bass

REDCATT 154FIND

8 Ω
15″ Mid Bass
fS38 Hz
SD881 cm²
QTS0.40
xmax8.6 mm
SPL1W95.1 dB
Bl/√RE7.65
Pmax1000 W

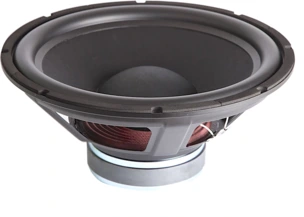

REDCATT 15FHW Subwoofer

REDCATT 15FHW

8 Ω
15″ Subwoofer
fS24 Hz
SD804 cm²
QTS0.60
xmax9.8 mm
SPL1W89 dB
Bl/√RE6.56
Pmax800 W
REDCATT 15FIND Woofer

REDCATT 15FIND

8 Ω
15″ Woofer
fS42 Hz
SD881 cm²
QTS0.36
xmax10.5 mm
SPL1W94.3 dB
Bl/√RE10.6
Pmax2000 W
REDCATT 15FPM Mid Bass

REDCATT 15FPM

8 Ω
15″ Mid Bass
fS41 Hz
SD908 cm²
QTS0.36
xmax7.7 mm
SPL1W95.3 dB
Bl/√RE9.34
Pmax2000 W

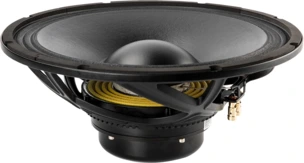

REDCATT 15NPM Mid Bass

REDCATT 15NPM

8 Ω
15″ Mid Bass
fS48 Hz
SD855 cm²
QTS0.46
xmax10.6 mm
SPL1W95 dB
Bl/√RE8.9
Pmax1600 W

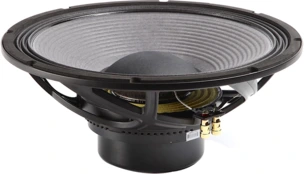

REDCATT 15NPW Woofer

REDCATT 15NPW

8 Ω
15″ Woofer
fS40 Hz
SD881 cm²
QTS0.27
xmax7.3 mm
SPL1W95.5 dB
Bl/√RE12
Pmax2400 W
REDCATT 181NPW Woofer

REDCATT 181NPW

4 Ω
18″ Woofer
fS28 Hz
SD1225 cm²
QTS0.25
xmax15.2 mm
SPL1W93.4 dB
Bl/√RE16.6
Pmax3000 W

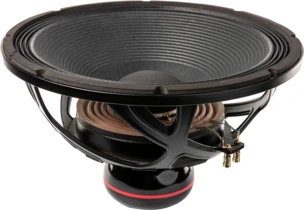

REDCATT 181XR Woofer

REDCATT 181XR

4 Ω
18″ Woofer
fS30 Hz
SD1257 cm²
QTS0.23
xmax22.2 mm
SPL1W95 dB
Bl/√RE15.6
Pmax2400 W

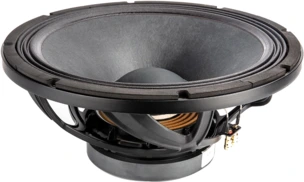

REDCATT 182FIND Woofer

REDCATT 182FIND

8 Ω
18″ Woofer
fS31 Hz
SD1257 cm²
QTS0.23
xmax13.6 mm
SPL1W95.4 dB
Bl/√RE15.1
Pmax2000 W

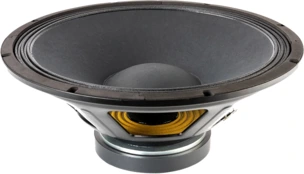

REDCATT 183FIND Woofer

REDCATT 183FIND

8 Ω
18″ Woofer
fS32 Hz
SD1225 cm²
QTS0.42
xmax8.4 mm
SPL1W95.9 dB
Bl/√RE8.7
Pmax1200 W

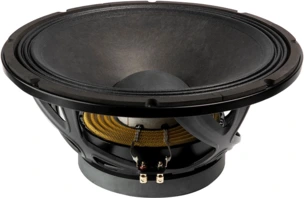

REDCATT 186FIND Woofer

REDCATT 186FIND

8 Ω
18″ Woofer
fS33 Hz
SD1256 cm²
QTS0.35
xmax9.5 mm
SPL1W94 dB
Bl/√RE12.9
Pmax3600 W

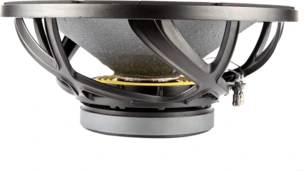

REDCATT 18FIND Woofer

REDCATT 18FIND

8 Ω
18″ Woofer
fS36 Hz
SD1257 cm²
QTS0.42
xmax10.4 mm
SPL1W94.6 dB
Bl/√RE10.3
Pmax2000 W
REDCATT 18NPW Woofer

REDCATT 18NPW

8 Ω
18″ Woofer
fS36 Hz
SD1257 cm²
QTS0.28
xmax10.7 mm
SPL1W96.3 dB
Bl/√RE12.1
Pmax2400 W
REDCATT 18XR Subwoofer

REDCATT 18XR

4 Ω
18″ Subwoofer
fS21 Hz
SD1257 cm²
QTS0.35
xmax26 mm
SPL1W90.8 dB
Bl/√RE12.2
Pmax2400 W

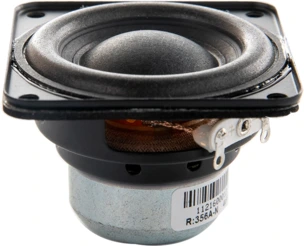

REDCATT 20NFR Full-range

REDCATT 20NFR

4 Ω
2″ Full-range
fS185 Hz
SD11.3 cm²
QTS0.52
xmax3 mm
SPL1W82.7 dB
Bl/√RE1.71
Pmax20 W
REDCATT 21NFR Full-range

REDCATT 21NFR

16 Ω
2″ Full-range
fS157 Hz
SD16.6 cm²
QTS0.68
xmax4.1 mm
SPL1W82.8 dB
Bl/√RE1.38
Pmax20 W

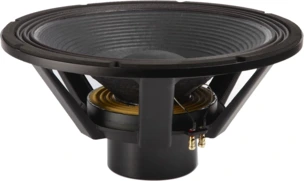

REDCATT 21NPW Woofer

REDCATT 21NPW

4 Ω
21″ Woofer
fS35 Hz
SD1662 cm²
QTS0.32
xmax15.5 mm
SPL1W94.8 dB
Bl/√RE19
Pmax3600 W

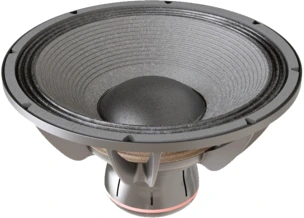

REDCATT 21XR Woofer

REDCATT 21XR

8 Ω
21″ Woofer
fS32.3 Hz
SD1662 cm²
QTS0.50
xmax24.8 mm
SPL1W92.9 dB
Bl/√RE13.8
Pmax3600 W
REDCATT 22NFR Full-range

REDCATT 22NFR

8 Ω
2″ Full-range
fS255 Hz
SD15.9 cm²
QTS0.85
xmax1.8 mm
SPL1W83.9 dB
Bl/√RE1.65
Pmax40 W

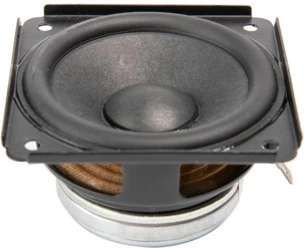

REDCATT 25NFR Full-range

REDCATT 25NFR

8 Ω
2.5″ Full-range
fS123 Hz
SD21.2 cm²
QTS0.71
xmax3.9 mm
SPL1W82.6 dB
Bl/√RE1.48
Pmax40 W
REDCATT 30FF Full-range

REDCATT 30FF

8 Ω
3″ Full-range
fS119 Hz
SD28.3 cm²
QTS0.78
xmax3.7 mm
SPL1W83.8 dB
Bl/√RE1.37
Pmax40 W
REDCATT 31NFR Full-range

REDCATT 31NFR

8 Ω
3″ Full-range
fS115 Hz
SD28.3 cm²
QTS0.88
xmax2.9 mm
SPL1W83.9 dB
Bl/√RE1.39
Pmax60 W

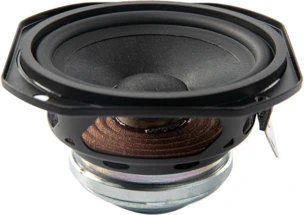

REDCATT 32NFR Full-range

REDCATT 32NFR

8 Ω
3″ Full-range
fS118 Hz
SD33.2 cm²
QTS0.32
xmax3.2 mm
SPL1W89 dB
Bl/√RE2.28
Pmax60 W

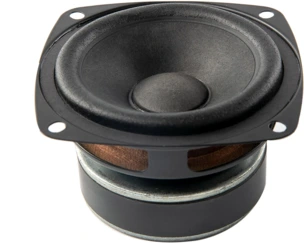

REDCATT 35FR Full-range

REDCATT 35FR

4 Ω
3.5″ Full-range
fS67 Hz
SD38.5 cm²
QTS0.34
xmax6.1 mm
SPL1W82.9 dB
Bl/√RE2.92
Pmax50 W

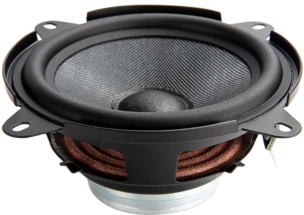

REDCATT 40NFR Full-range

REDCATT 40NFR

16 Ω
4″ Full-range
fS115 Hz
SD50.2 cm²
QTS1.10
xmax2.9 mm
SPL1W85.9 dB
Bl/√RE1.51
Pmax50 W
REDCATT 41FR Full-range

REDCATT 41FR

8 Ω
4″ Full-range
fS134 Hz
SD50.3 cm²
QTS0.75
xmax3.5 mm
SPL1W88.2 dB
Bl/√RE2.02
Pmax40 W

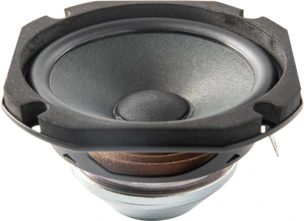

REDCATT 41NFR Full-range

REDCATT 41NFR

16 Ω
4″ Full-range
fS98 Hz
SD56.8 cm²
QTS0.37
xmax5.1 mm
SPL1W88.8 dB
Bl/√RE2.86
Pmax80 W
