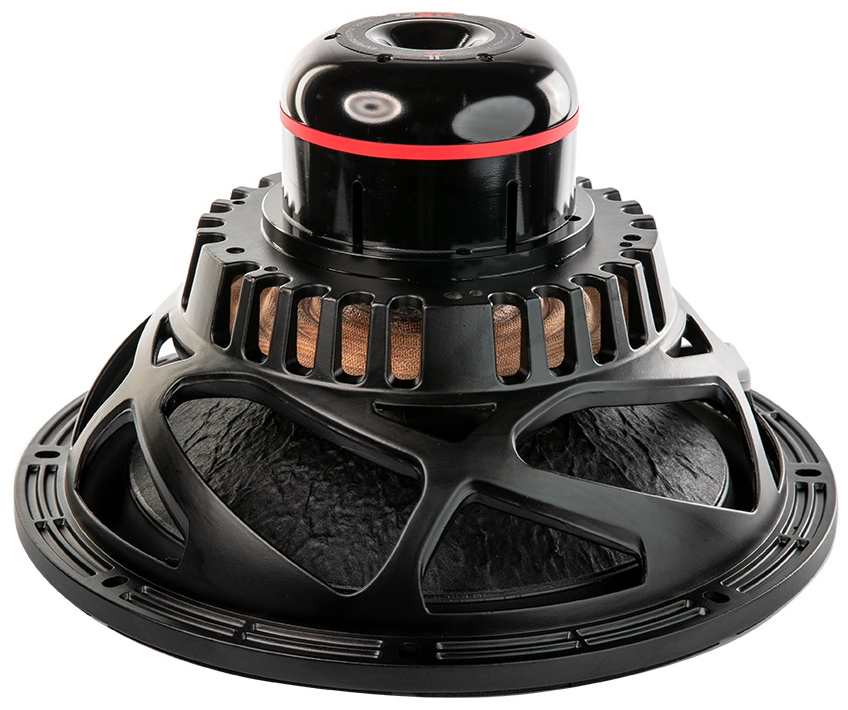

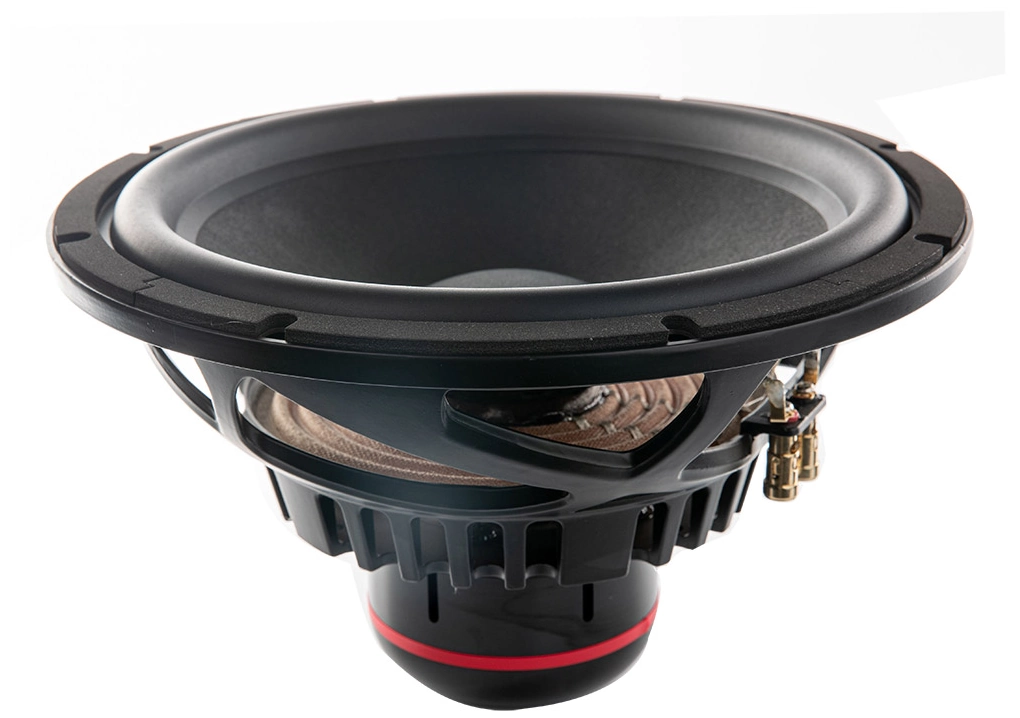

REDCATT 12XR
8Ω
Woofer
| Nominal diameter | 12″ / 320 mm |
| Resonance | 35 Hz |
| Q factor | 0.68 |
| Sensitivity | 89.7 dB |
| Linear excursion | ± 14.1 mm |
| Program Power | 1000 W |

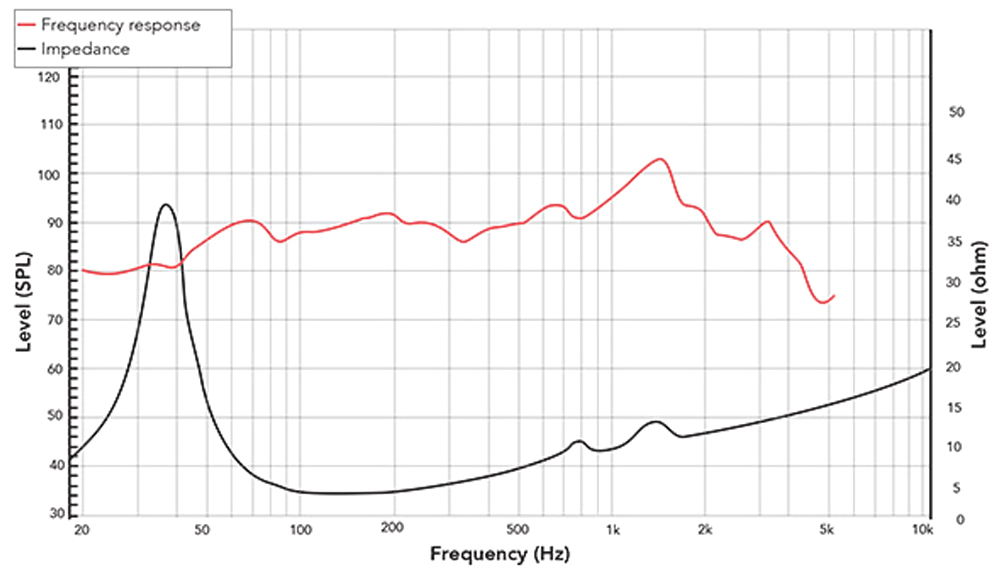

.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 10.50
- Electrical quality factor QES 0.73
- Total quality factor QTS 0.68
Large signal parameters
- Maximum linear excursion (one way) xmax 14.1mm
- Air volume displaced at xmax VD 749cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.7Ω
- Inductance (1kHz) LE 0.24mH
- VC Diameter 63.5mm
- Winding height HVC 12.6mm
- Winding material Copper
- Former material kapton
Magnet
- Force factor Bl 12.3N/A
- Motor constant Bl/√RE 5.15N/√W
- Air gap height HAG 31mm
- Material Neodymium
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 88.3g
- Moving mass (without air load) MMD 79.4g
- Material Paper
Suspensions
- Stiffness KMS 4.26N/mm
- Compliance CMS 235µm/N
- Equivalent volume to the compliance VAS 89.7L
- Mechanical resistance RMS 1.85N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 12″
- 320mm
- Overall diameter 320mm
- Baffle cutout diameter 281mm
- Mounting depth 173mm
- Volume occupied by the driver (estimated) 2.5L
- Net weight 5.7kg
