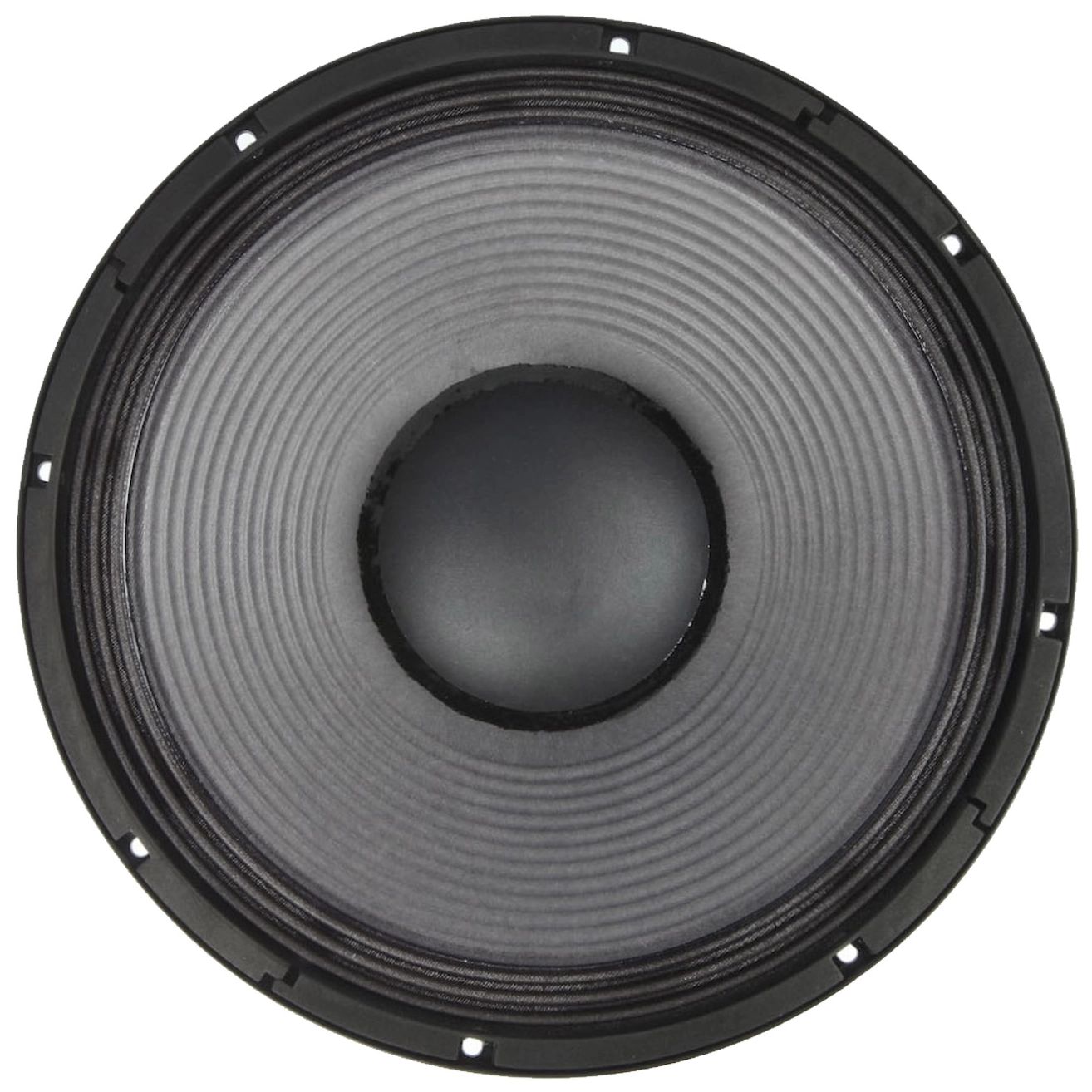

REDCATT 15FPM
8Ω
Mid Bass
| Nominal diameter | 15″ / 392 mm |
| Resonance | 41 Hz |
| Q factor | 0.36 |
| Sensitivity | 95.3 dB |
| Linear excursion | ± 7.7 mm |
| Program Power | 2000 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 41Hz
- Mechanical quality factor QMS 8.07
- Electrical quality factor QES 0.38
- Total quality factor QTS 0.36
Large signal parameters
- Maximum linear excursion (one way) xmax 7.7mm
- Air volume displaced at xmax VD 699cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 1.17mH
- VC Diameter 101.6mm
- Winding height HVC 21mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 21.3N/A
- Motor constant Bl/√RE 9.34N/√W
- Air gap height HAG 12mm
- Material Ferrite
Diaphragm
- Effective diameter 340mm
- Effective area SD 908cm²
- Moving mass MMS 127g
- Moving mass (without air load) MMD 108g
- Material Paper
Suspensions
- Stiffness KMS 8.55N/mm
- Compliance CMS 117µm/N
- Equivalent volume to the compliance VAS 135L
- Mechanical resistance RMS 4.04N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 15″
- 392mm
- Overall diameter 392mm
- Baffle cutout diameter 360mm
- Mounting depth 150mm
- Volume occupied by the driver (estimated) 5.5L
- Net weight 12.0kg
