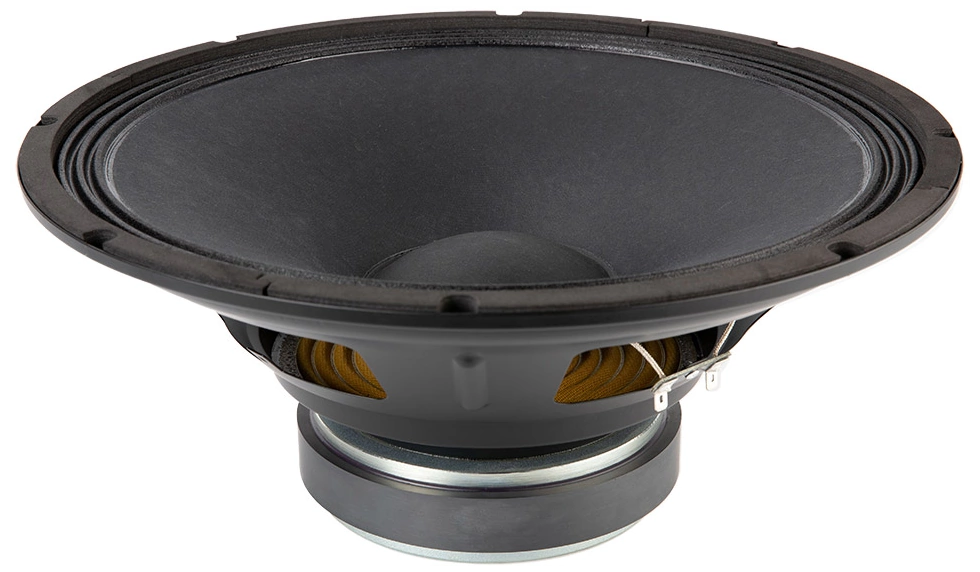

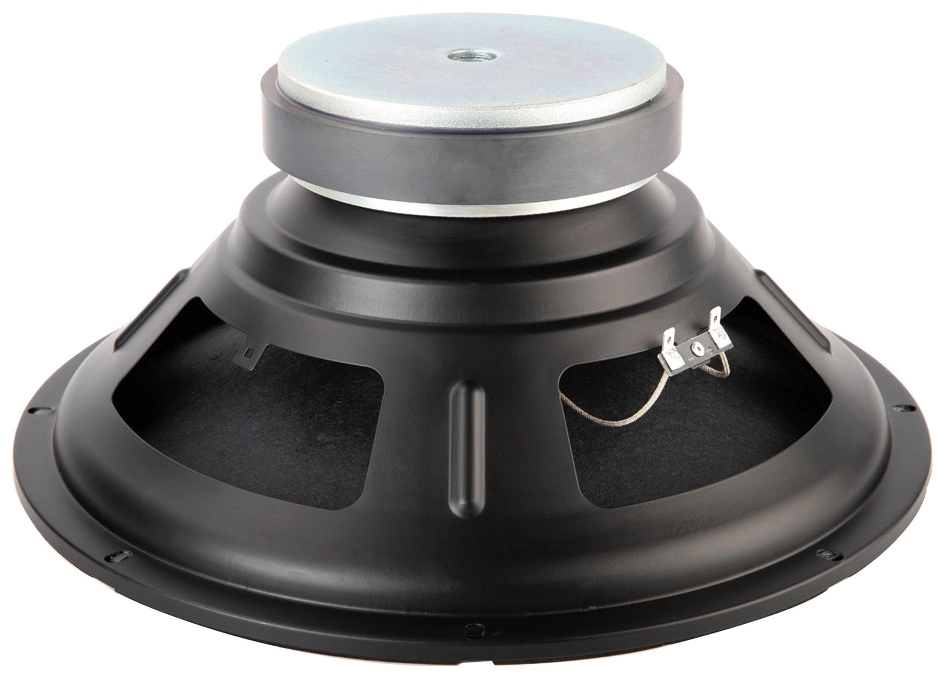

REDCATT 154FIND
8Ω
Mid Bass
| Nominal diameter | 15″ / 387 mm |
| Resonance | 38 Hz |
| Q factor | 0.40 |
| Sensitivity | 95.1 dB |
| Linear excursion | ± 8.6 mm |
| Program Power | 1000 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 8.10
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion (one way) xmax 8.6mm
- Air volume displaced at xmax VD 758cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 0.97mH
- VC Diameter 63.5mm
- Winding height HVC 17mm
- Winding material Copper
- Former material kapton
Magnet
- Force factor Bl 18.1N/A
- Motor constant Bl/√RE 7.65N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 335mm
- Effective area SD 881cm²
- Moving mass MMS 103g
- Moving mass (without air load) MMD 85.1g
- Material Paper
Suspensions
- Stiffness KMS 6.02N/mm
- Compliance CMS 166µm/N
- Equivalent volume to the compliance VAS 187L
- Mechanical resistance RMS 3.04N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 15″
- 387mm
- Overall diameter 387mm
- Baffle cutout diameter 355mm
- Mounting depth 155mm
- Volume occupied by the driver (estimated) 2.8L
- Net weight 6.3kg
.webp)
.webp)
