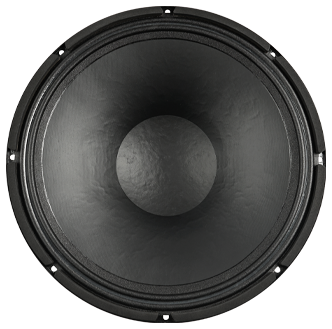

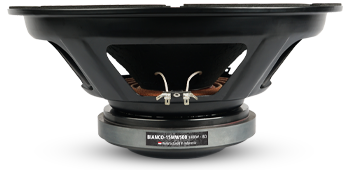

SB Audience BIANCO-15MW500
8Ω
Woofer
| Nominal diameter | 15″ / 386 mm |
| Resonance | 39 Hz |
| Q factor | 0.40 |
| Sensitivity | 95.3 dB |
| Linear excursion | ± 7.6 mm |
| Program Power | 1000 W |
.png)
.png)
Specifications

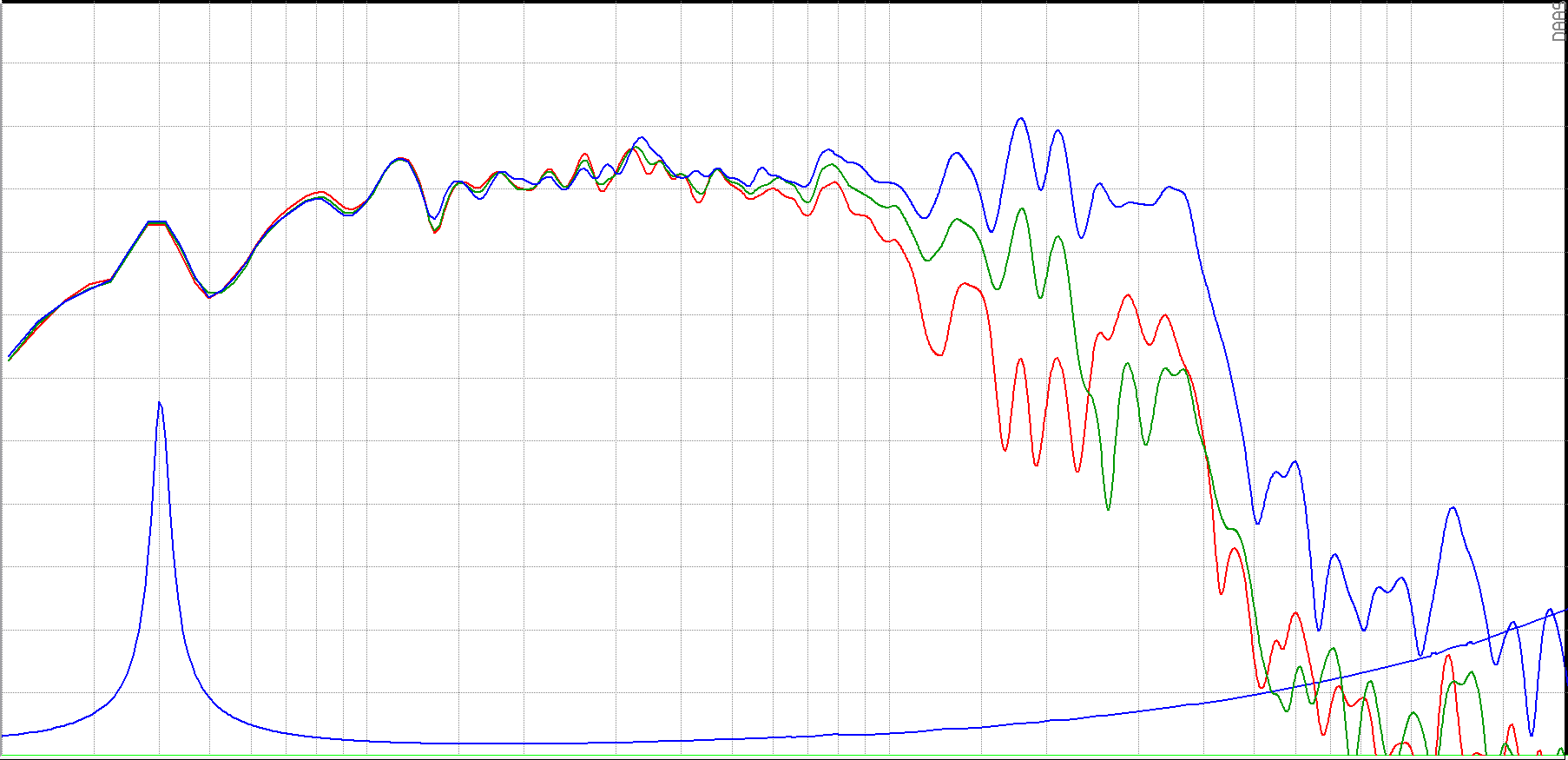

- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.3dB
- Frequency response 39 - 4300Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 39Hz
- Mechanical quality factor QMS 18.10
- Electrical quality factor QES 0.41
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion xmax 7.6mm
- Maximum excursion before damage xlim 18mm
- Air volume displaced at xmax VD 689cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 1.04mH
- VC Diameter 75.6mm
- Winding height HVC 18.6mm
- Winding material AISVW
- Former material Till
Magnet
- Flux density B 1.13T
- Force factor Bl 18.8N/A
- Motor constant Bl/√RE 8.17N/√W
- Air gap height HAG 10mm
- Material Ferrite
Diaphragm
- Effective diameter 340mm
- Effective area SD 907cm²
- Moving mass MMS 110g
- Moving mass (without air load) MMD 91.6g
- Material Paper
Suspensions
- Stiffness KMS 6.67N/mm
- Compliance CMS 150µm/N
- Equivalent volume to the compliance VAS 171L
- Mechanical resistance RMS 1.5N·s/m
- Surround material Double half roll
- Spider material Progressive height waves

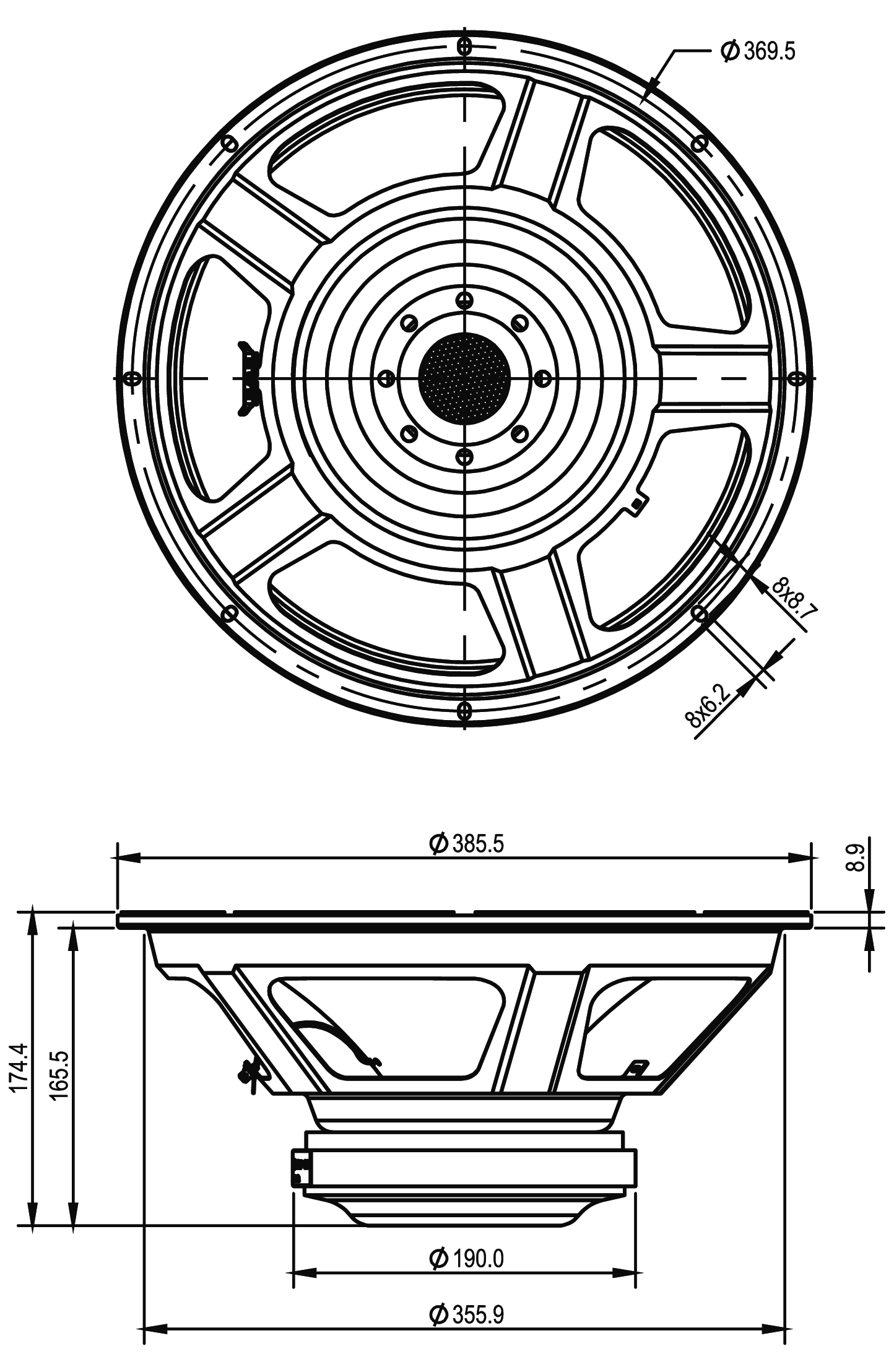

Dimensions
- Nominal diameter 15″
- 386mm
- Overall diameter 386mm
- Baffle cutout diameter 358mm
- Overall depth 174mm
- Flange thickness 9mm
- Mounting depth 166mm
- Volume occupied by the driver 6.06L
- Net weight 7.5kg
- Frame material Stamped steel
