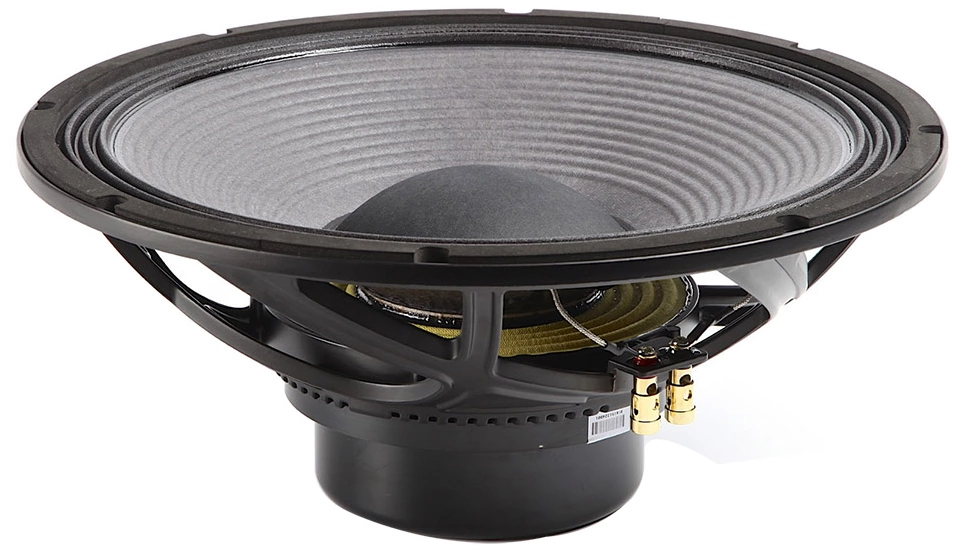

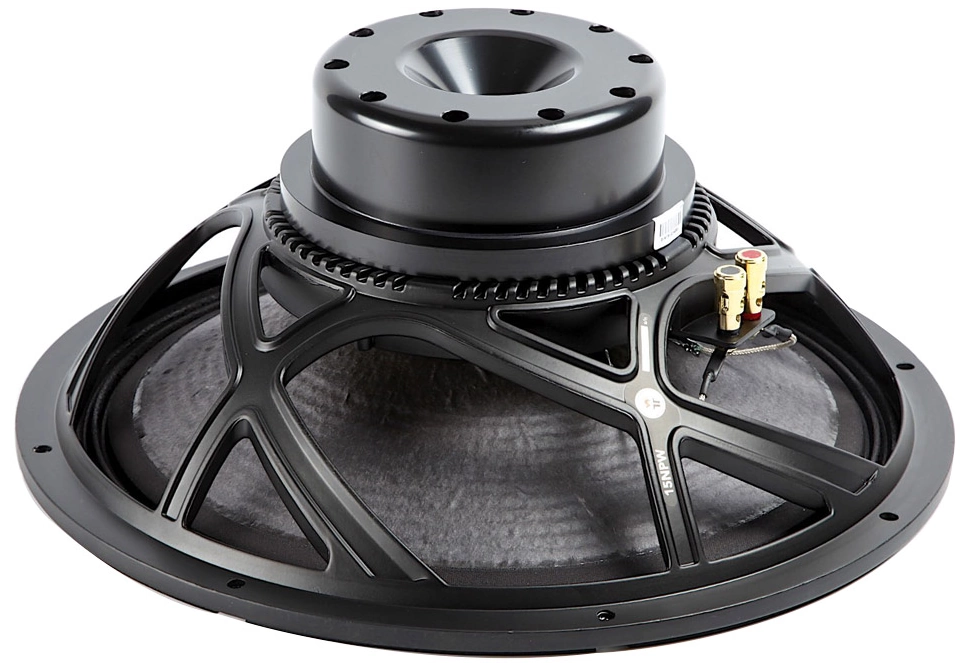

REDCATT 15NPW
8Ω
Woofer
| Nominal diameter | 15″ / 392 mm |
| Resonance | 40 Hz |
| Q factor | 0.27 |
| Sensitivity | 95.5 dB |
| Linear excursion | ± 7.3 mm |
| Program Power | 2400 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 40Hz
- Mechanical quality factor QMS 8.77
- Electrical quality factor QES 0.28
- Total quality factor QTS 0.27
Large signal parameters
- Maximum linear excursion (one way) xmax 7.3mm
- Air volume displaced at xmax VD 643cm³
- Power handling P 1200W
- Program power Pmax 2400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 1.65mH
- VC Diameter 101.6mm
- Winding height HVC 25.5mm
- Winding material Copper
- Former material kapton
Magnet
- Force factor Bl 28.3N/A
- Motor constant Bl/√RE 12N/√W
- Air gap height HAG 14mm
- Material Neodymium
Diaphragm
- Effective diameter 335mm
- Effective area SD 881cm²
- Moving mass MMS 155g
- Moving mass (without air load) MMD 137g
- Material Paper
Suspensions
- Stiffness KMS 10.1N/mm
- Compliance CMS 99µm/N
- Equivalent volume to the compliance VAS 107L
- Mechanical resistance RMS 4.44N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 15″
- 392mm
- Overall diameter 392mm
- Baffle cutout diameter 360mm
- Mounting depth 156mm
- Volume occupied by the driver (estimated) 3.8L
- Net weight 8.5kg
.webp)
.webp)
