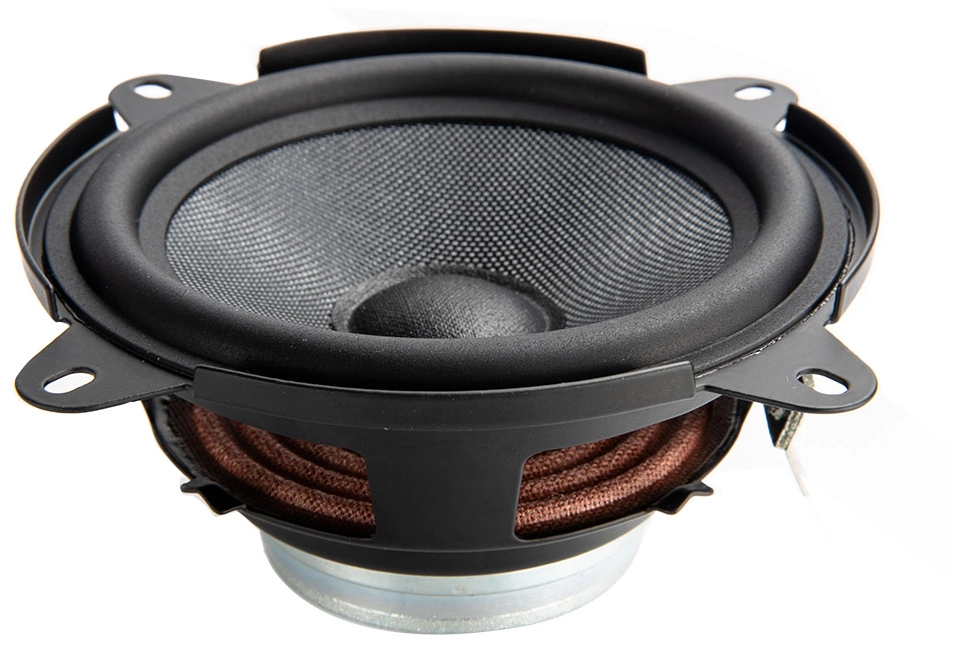

REDCATT 40NFR
16Ω
Full-range
| Nominal diameter | 4″ / 104 mm |
| Resonance | 115 Hz |
| Q factor | 1.10 |
| Sensitivity | 85.9 dB |
| Linear excursion | ± 2.9 mm |
| Program Power | 50 W |

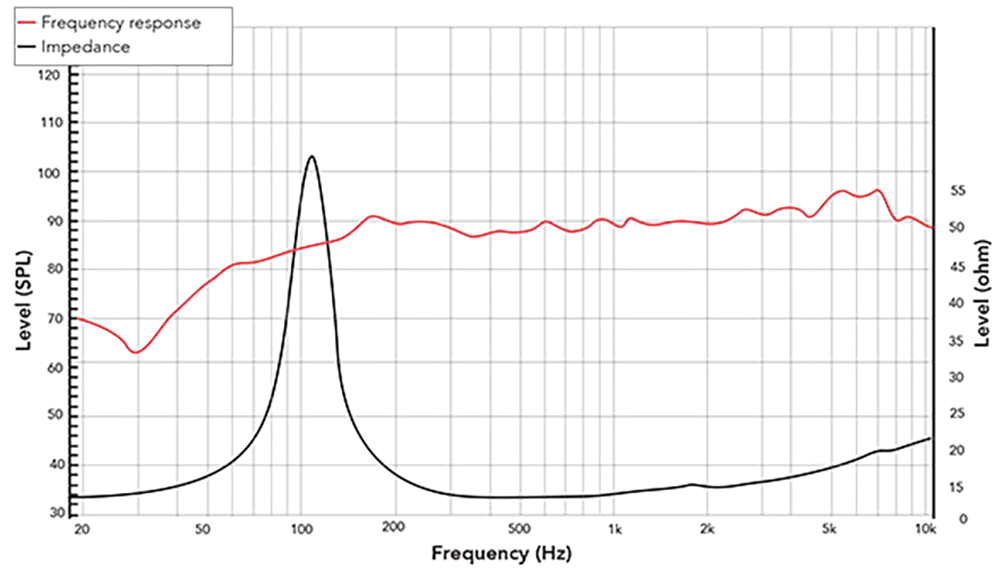

.webp)

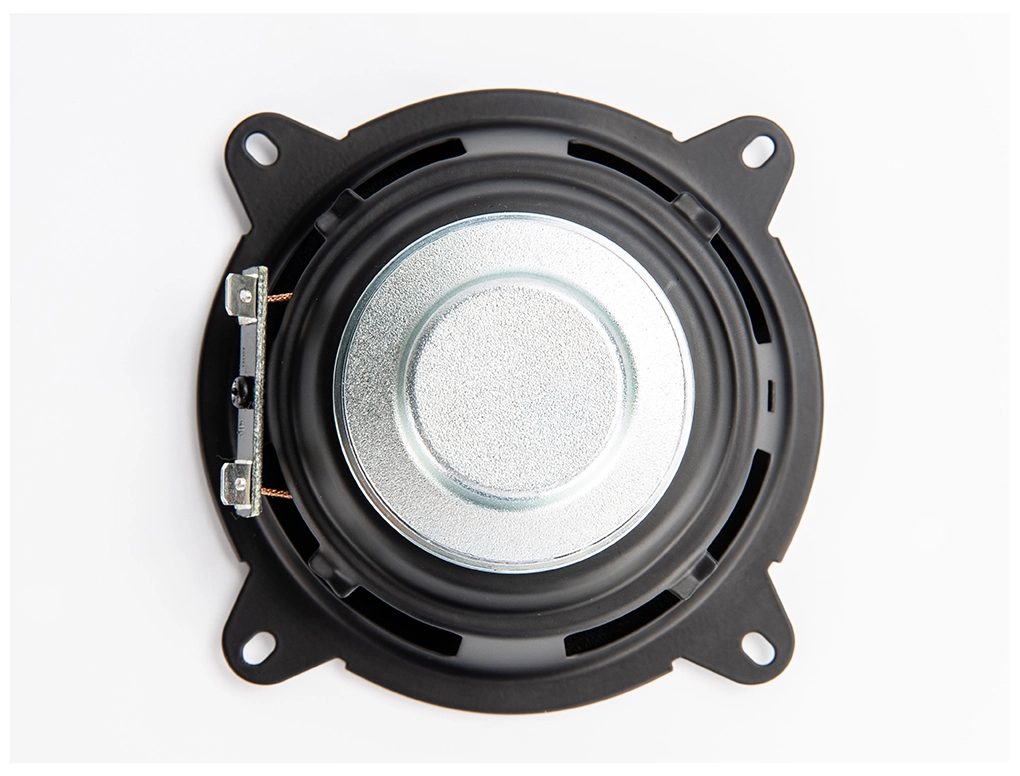

.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 115Hz
- Mechanical quality factor QMS 6.20
- Electrical quality factor QES 1.30
- Total quality factor QTS 1.10
Large signal parameters
- Maximum linear excursion (one way) xmax 2.9mm
- Air volume displaced at xmax VD 15cm³
- Power handling P 25W
- Program power Pmax 50W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 12.3Ω
- Inductance (1kHz) LE 0.2mH
- VC Diameter 19mm
- Winding height HVC 4.9mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 5.3N/A
- Motor constant Bl/√RE 1.51N/√W
- Air gap height HAG 4mm
- Material Neodymium
Diaphragm
- Effective diameter 80mm
- Effective area SD 50.2cm²
- Moving mass MMS 4.4g
- Moving mass (without air load) MMD 4.1g
- Material GF Honeycomb
Suspensions
- Stiffness KMS 2.15N/mm
- Compliance CMS 466µm/N
- Equivalent volume to the compliance VAS 1.5L
- Mechanical resistance RMS 0.51N·s/m
- Surround material Rubber
- Spider material Conex
Dimensions
- Nominal diameter 4″
- 104mm
- Overall diameter 104mm
- Baffle cutout diameter 91mm
- Mounting depth 51mm
- Volume occupied by the driver (estimated) 0.15L
- Net weight 0.2kg
