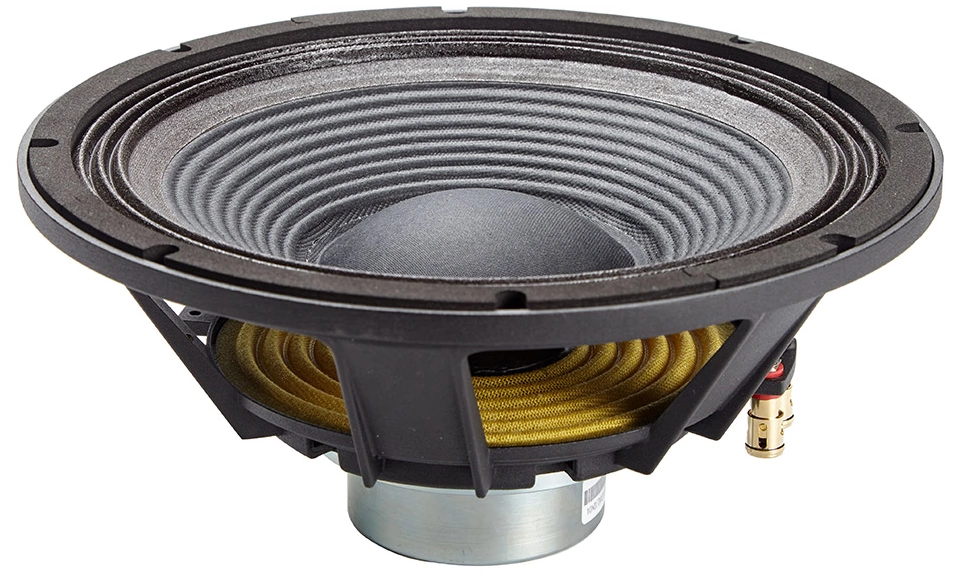

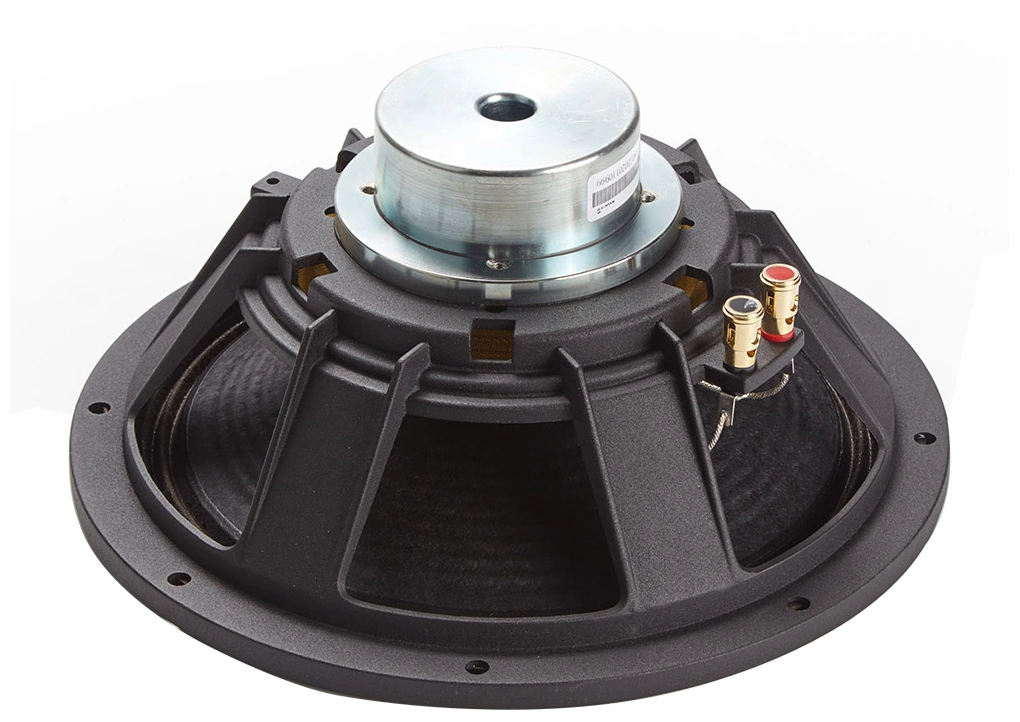

REDCATT 10NPM
8Ω
Woofer
| Nominal diameter | 10″ / 262 mm |
| Resonance | 58 Hz |
| Q factor | 0.33 |
| Sensitivity | 93.7 dB |
| Linear excursion | ± 7.7 mm |
| Program Power | 400 W |

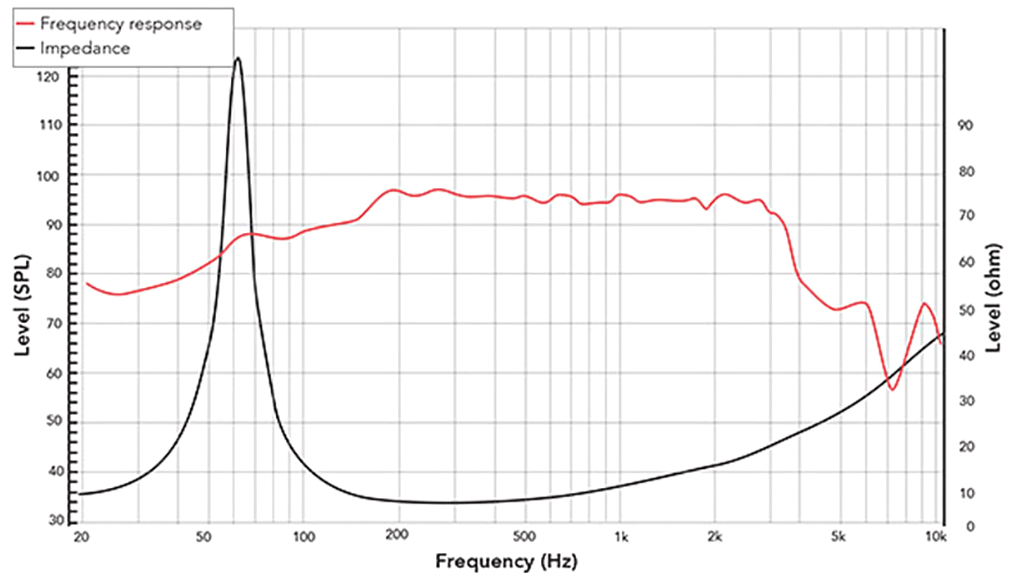

.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 58Hz
- Mechanical quality factor QMS 4.68
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.33
Large signal parameters
- Maximum linear excursion (one way) xmax 7.7mm
- Air volume displaced at xmax VD 280cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.5Ω
- Inductance (1kHz) LE 0.79mH
- VC Diameter 76.2mm
- Winding height HVC 23.2mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 17.9N/A
- Motor constant Bl/√RE 7.02N/√W
- Air gap height HAG 10.5mm
- Material Neodymium
Diaphragm
- Effective diameter 215mm
- Effective area SD 363cm²
- Moving mass MMS 47g
- Moving mass (without air load) MMD 42g
- Material Paper
Suspensions
- Stiffness KMS 6.45N/mm
- Compliance CMS 155µm/N
- Equivalent volume to the compliance VAS 29.3L
- Mechanical resistance RMS 3.66N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 262mm
- Overall diameter 262mm
- Baffle cutout diameter 234mm
- Mounting depth 108mm
- Volume occupied by the driver (estimated) 1.5L
- Net weight 3.5kg
