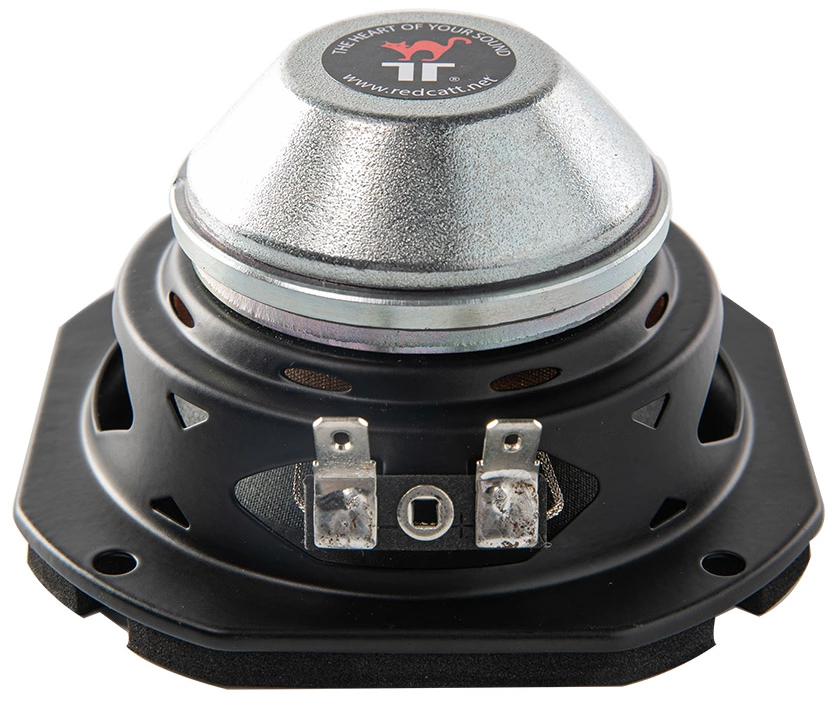

REDCATT 41NFR
16Ω
Full-range
| Nominal diameter | 4″ / 105 mm |
| Resonance | 98 Hz |
| Q factor | 0.37 |
| Sensitivity | 88.8 dB |
| Linear excursion | ± 5.1 mm |
| Program Power | 80 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 98Hz
- Mechanical quality factor QMS 5.05
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.37
Large signal parameters
- Maximum linear excursion (one way) xmax 5.1mm
- Air volume displaced at xmax VD 29cm³
- Power handling P 40W
- Program power Pmax 80W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 12.2Ω
- Inductance (1kHz) LE 0.58mH
- VC Diameter 25.4mm
- Winding height HVC 11.3mm
- Winding material Copper
- Former material kapton
Magnet
- Force factor Bl 10N/A
- Motor constant Bl/√RE 2.86N/√W
- Air gap height HAG 5mm
- Material Neodymium
Diaphragm
- Effective diameter 85mm
- Effective area SD 56.8cm²
- Moving mass MMS 5.4g
- Moving mass (without air load) MMD 5.1g
- Material Paper
Suspensions
- Stiffness KMS 2.02N/mm
- Compliance CMS 495µm/N
- Equivalent volume to the compliance VAS 2.1L
- Mechanical resistance RMS 0.66N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 4″
- 105mm
- Overall diameter 105mm
- Baffle cutout diameter 92mm
- Mounting depth 51mm
- Volume occupied by the driver (estimated) 0.21L
- Net weight 0.54kg
.webp)
.webp)
