LaVoce WSN041.00-16
8Ω
16Ω
Woofer
| Nominal diameter | 4″ / 100 mm |
| Resonance | 106 Hz |
| Q factor | 0.36 |
| Sensitivity | 89.6 dB |
| Linear excursion | ± 4.3 mm |
| Program Power | 80 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89.6dB

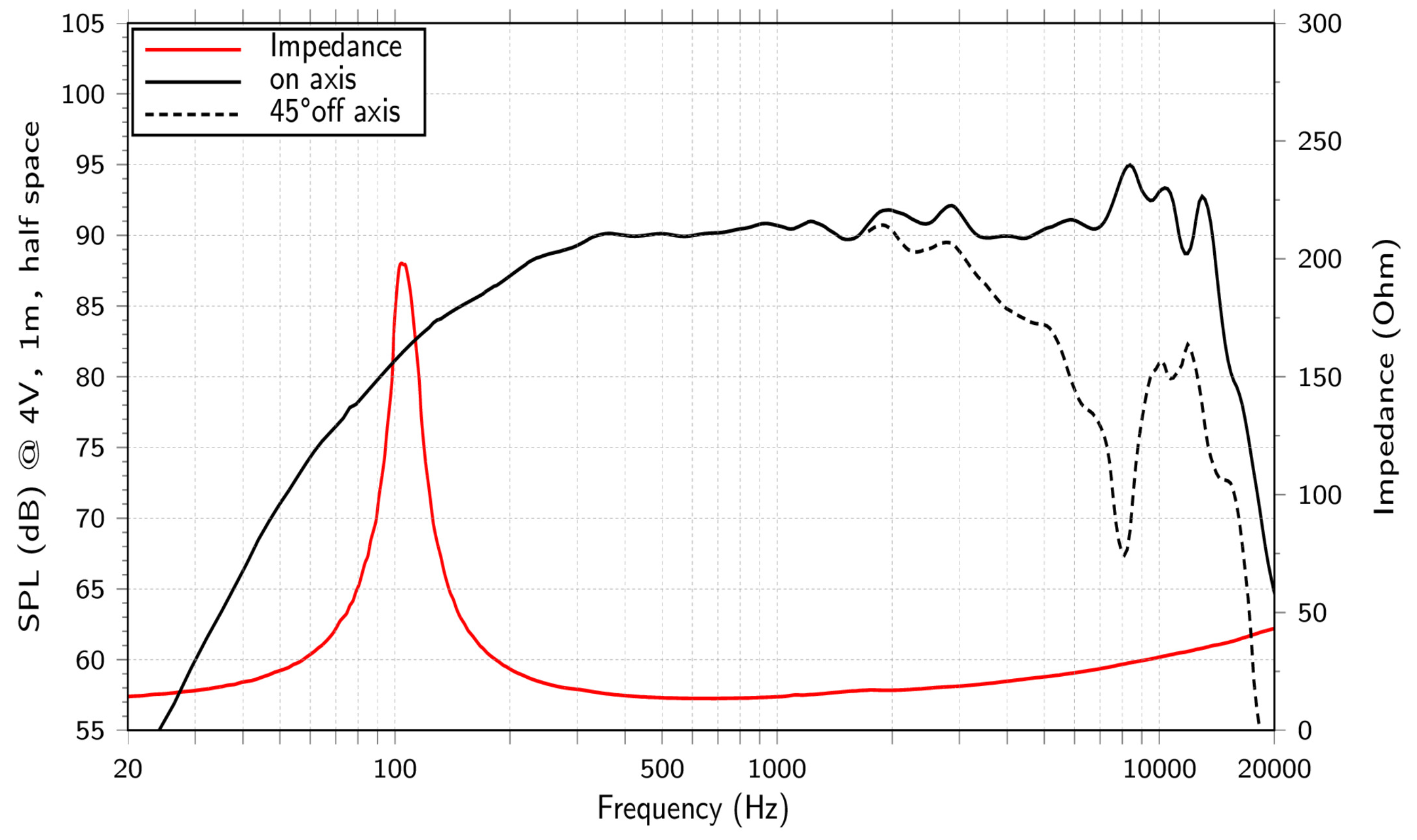

- Frequency response 100 - 12000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 106Hz
- Mechanical quality factor QMS 6.47
- Electrical quality factor QES 0.38
- Total quality factor QTS 0.36
Large signal parameters
- Maximum linear excursion (one way) xmax 4.3mm
- Maximum excursion before damage xlim 6mm
- Air volume displaced at xmax VD 24cm³
- Power handling P 40W
- Program power Pmax 80W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 12.0Ω
- Inductance (1kHz) LE 0.42mH
- VC Diameter 25mm
- Winding height HVC 11mm
- Winding material Copper
- Former material Polyimide
Magnet
- Force factor Bl 10.4N/A
- Motor constant Bl/√RE 3N/√W
- Air gap height HAG 5mm
- Diameter 65mm
- Height 4mm
- Material Neodymium
Diaphragm
- Effective diameter 84mm
- Effective area SD 56cm²
- Moving mass MMS 5.12g
- Moving mass (without air load) MMD 4.8g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 2.26N/mm
- Compliance CMS 442µm/N
- Equivalent volume to the compliance VAS 1.96L
- Mechanical resistance RMS 0.53N·s/m
- Surround material Rubber

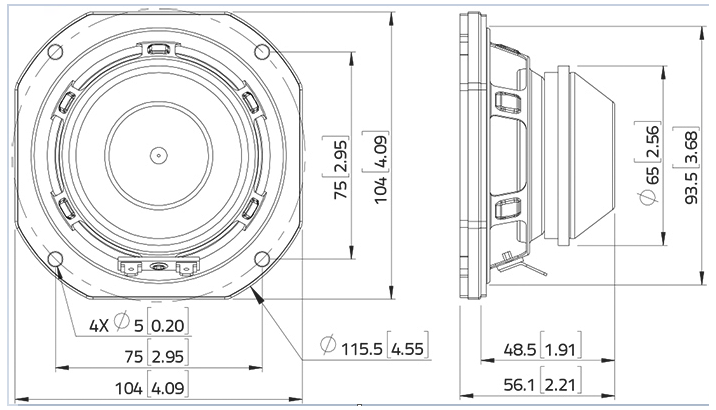

Dimensions
- Nominal diameter 4″
- 100mm
- Volume occupied by the driver 0.13L
- Net weight 0.5kg
- Frame material Steel
.webp)
.webp)
