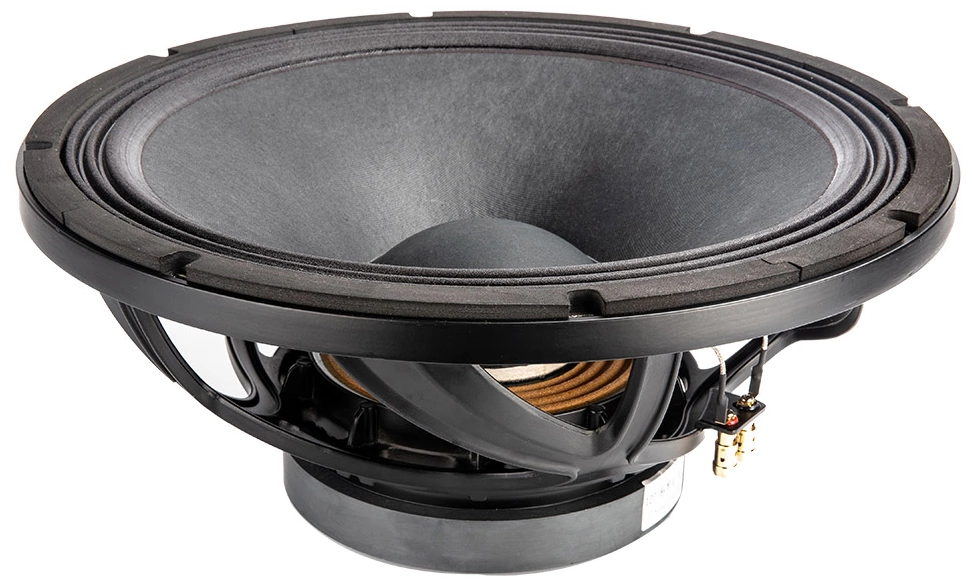

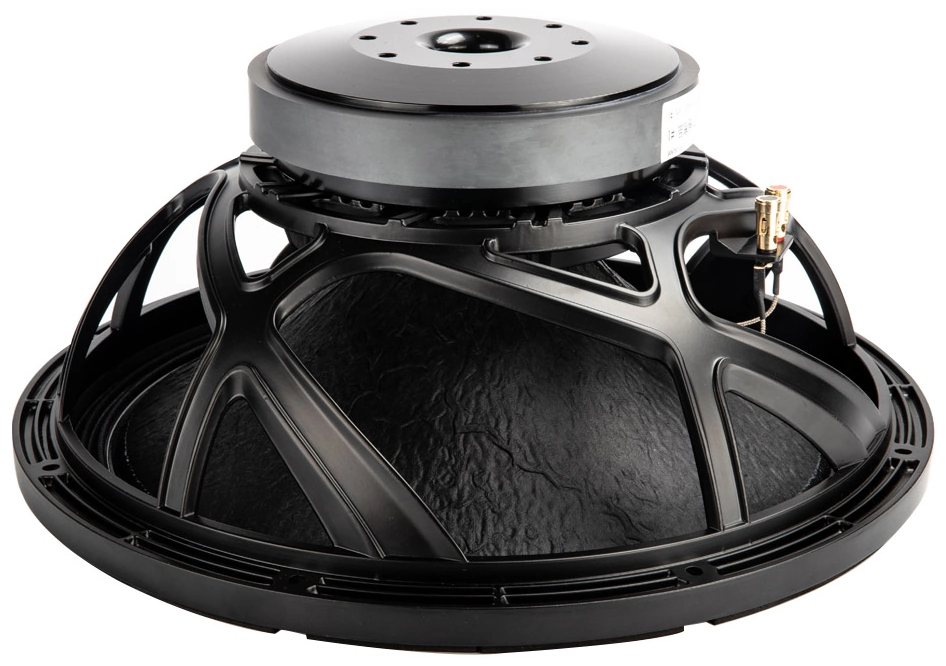

REDCATT 182FIND
8Ω
Woofer
| Nominal diameter | 18″ / 468 mm |
| Resonance | 31 Hz |
| Q factor | 0.23 |
| Sensitivity | 95.4 dB |
| Linear excursion | ± 13.6 mm |
| Program Power | 2000 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.4dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31Hz
- Mechanical quality factor QMS 8.85
- Electrical quality factor QES 0.24
- Total quality factor QTS 0.23
Large signal parameters
- Maximum linear excursion (one way) xmax 13.6mm
- Air volume displaced at xmax VD 1710cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 4.92mH
- VC Diameter 101.6mm
- Winding height HVC 25.5mm
- Winding material Copper
- Former material kapton
Magnet
- Force factor Bl 35.4N/A
- Motor constant Bl/√RE 15.1N/√W
- Air gap height HAG 14mm
- Material Ferrite
Diaphragm
- Effective diameter 400mm
- Effective area SD 1257cm²
- Moving mass MMS 281g
- Moving mass (without air load) MMD 250g
- Material Paper
Suspensions
- Stiffness KMS 10.6N/mm
- Compliance CMS 94µm/N
- Equivalent volume to the compliance VAS 209L
- Mechanical resistance RMS 6.18N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 18″
- 468mm
- Overall diameter 468mm
- Baffle cutout diameter 426mm
- Mounting depth 189mm
- Volume occupied by the driver (estimated) 6.5L
- Net weight 14.0kg
.webp)
.webp)
