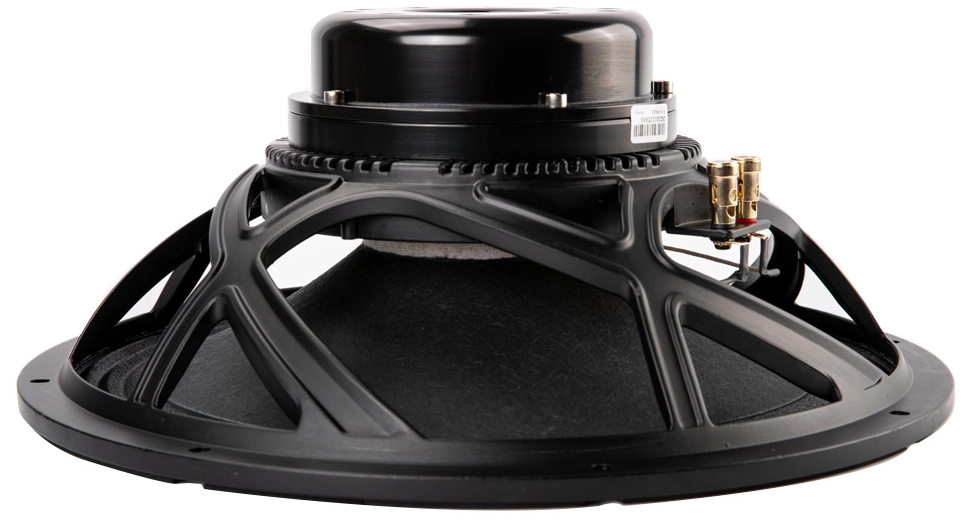

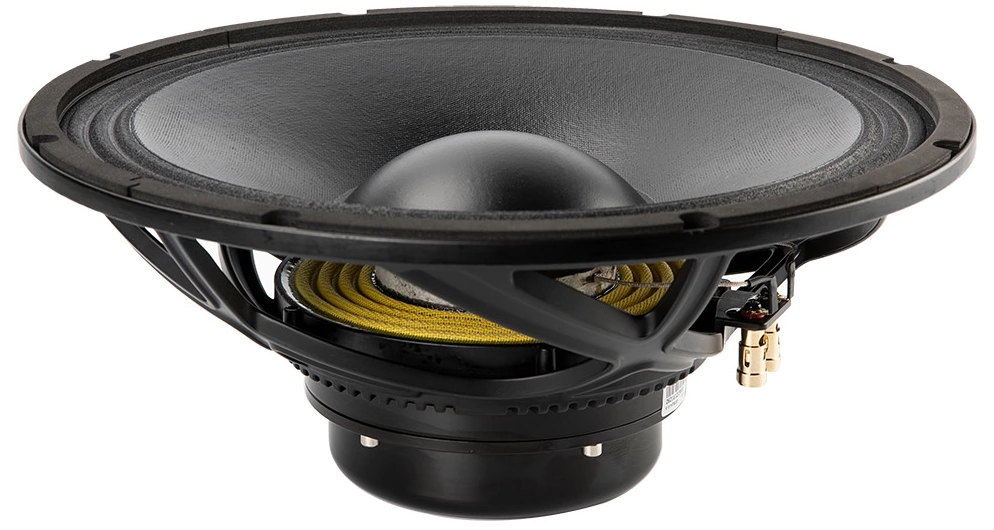

REDCATT 15NPM
8Ω
Mid Bass
| Nominal diameter | 15″ / 392 mm |
| Resonance | 48 Hz |
| Q factor | 0.46 |
| Sensitivity | 95 dB |
| Linear excursion | ± 10.6 mm |
| Program Power | 1600 W |
.webp)
.webp)

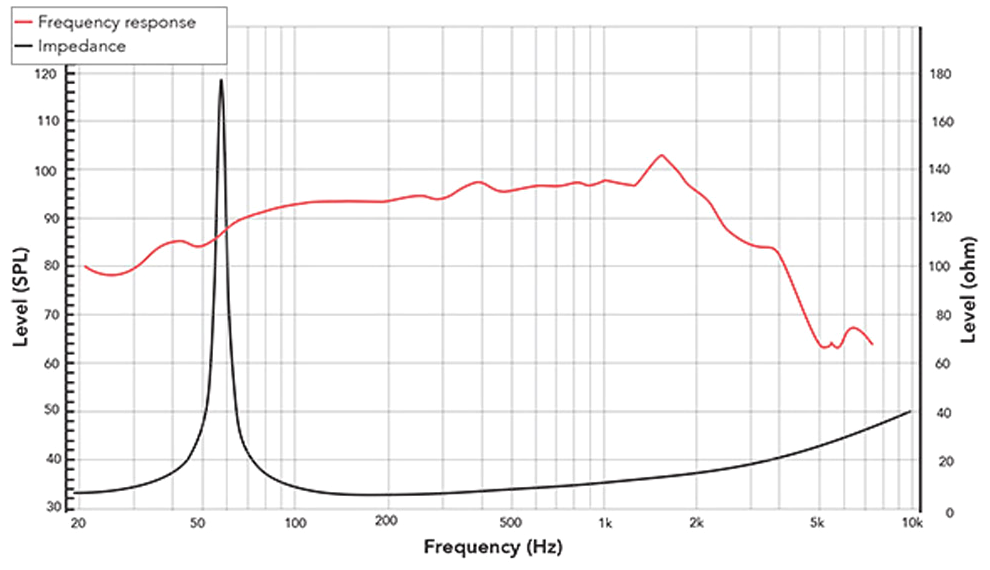

Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95dB
Thiele & Small parameters
- Resonance frequency (free air) fS 48Hz
- Mechanical quality factor QMS 16.50
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.46
Large signal parameters
- Maximum linear excursion (one way) xmax 10.6mm
- Air volume displaced at xmax VD 907cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 4.7Ω
- Inductance (1kHz) LE 0.68mH
- VC Diameter 101.6mm
- Winding height HVC 23mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 19.3N/A
- Motor constant Bl/√RE 8.9N/√W
- Air gap height HAG 12.5mm
- Material Neodymium
Diaphragm
- Effective diameter 330mm
- Effective area SD 855cm²
- Moving mass MMS 123g
- Moving mass (without air load) MMD 105g
- Material Paper
Suspensions
- Stiffness KMS 11.2N/mm
- Compliance CMS 89µm/N
- Equivalent volume to the compliance VAS 89.9L
- Mechanical resistance RMS 2.25N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 15″
- 392mm
- Overall diameter 392mm
- Baffle cutout diameter 360mm
- Mounting depth 150mm
- Volume occupied by the driver (estimated) 2.9L
- Net weight 6.65kg
.webp)
.webp)
