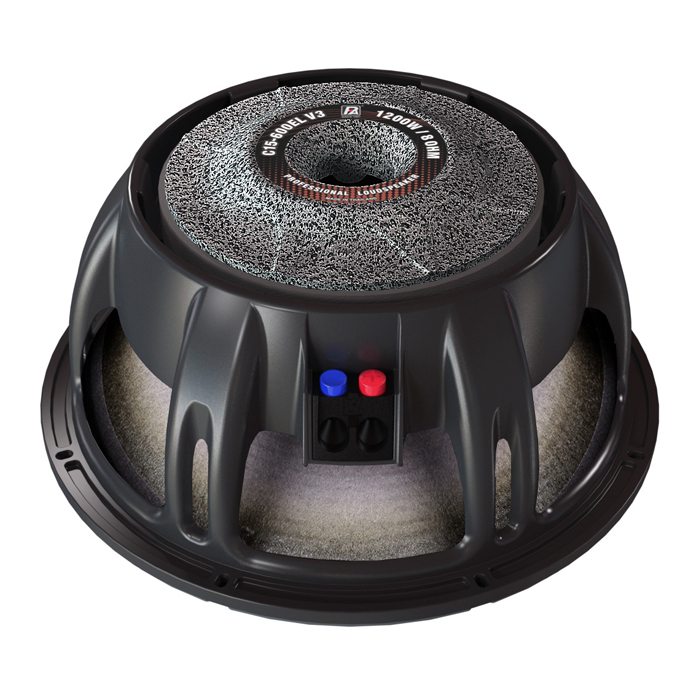

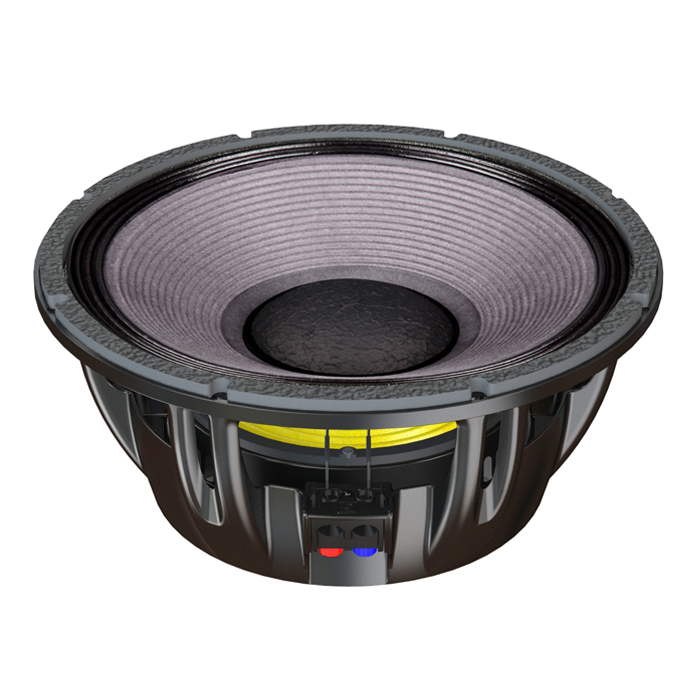

P.Audio C15-600EL v3
8Ω
Low frequency
| Nominal diameter | 15″ / 381 mm |
| Resonance | 45 Hz |
| Q factor | 0.40 |
| Sensitivity | 95.5 dB |
| Linear excursion | ± 5.3 mm |
| Program Power | 2400 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.5dB

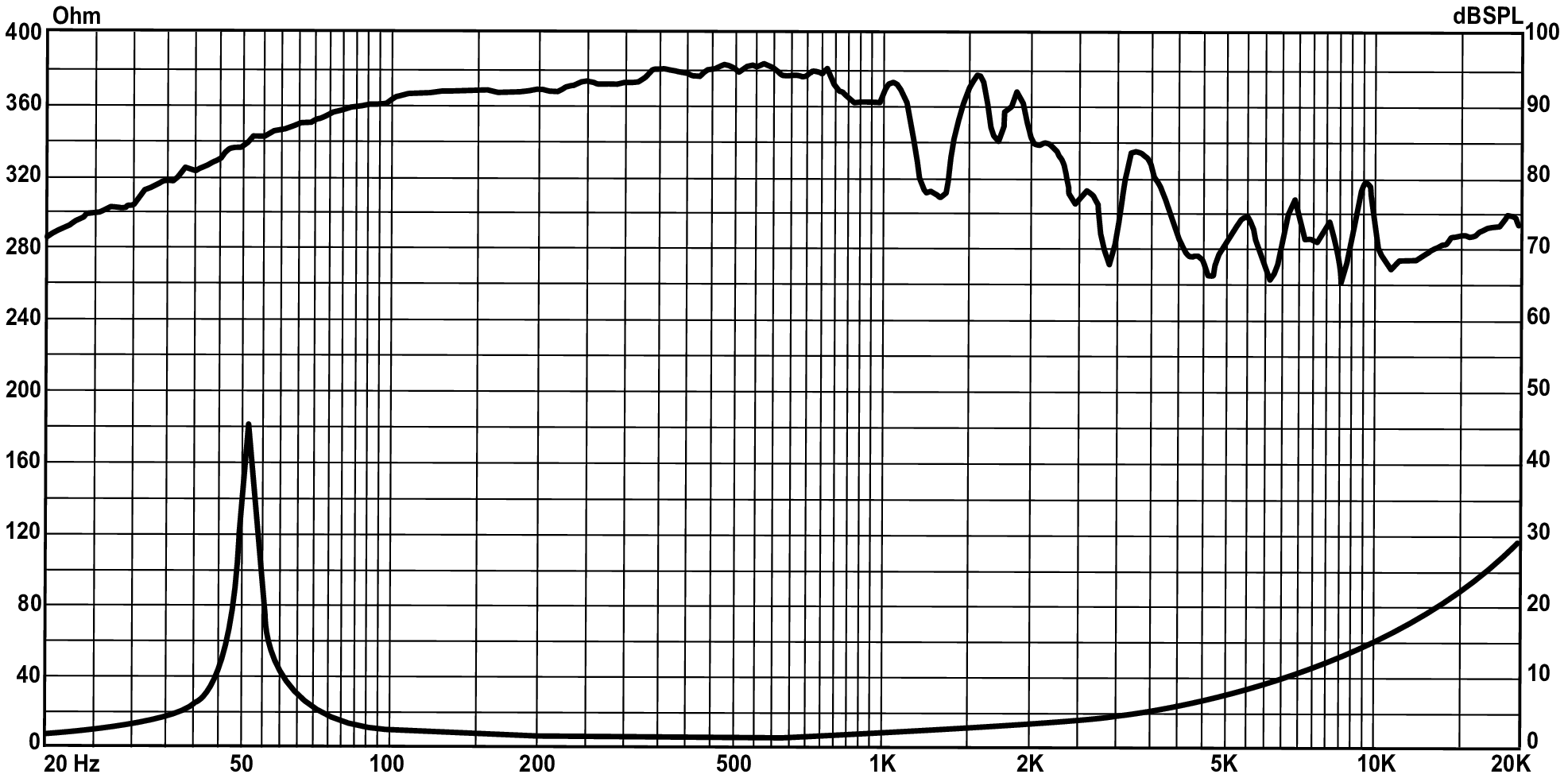

- Frequency response 45 - 2000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 45Hz
- Mechanical quality factor QMS 7.96
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion xmax 5.3mm
- Air volume displaced at xmax VD 449cm³
- Power handling P 1200W
- Program power Pmax 2400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 0.67mH
- VC Diameter 101.6mm
- Winding height HVC 25.5mm
- Winding material Flat Copper Wire
- Former material Glass Fiber
Magnet
- Flux density B 0.8T
- Force factor Bl 20.4N/A
- Motor constant Bl/√RE 8.7N/√W
- Air gap height HAG 15mm
- Material Ferrite
Diaphragm
- Effective diameter 328mm
- Effective area SD 855cm²
- Moving mass MMS 116g
- Moving mass (without air load) MMD 98.4g
- Material Paper
Suspensions
- Stiffness KMS 9.17N/mm
- Compliance CMS 109µm/N
- Equivalent volume to the compliance VAS 94.6L
- Mechanical resistance RMS 4.11N·s/m
- Surround material Cloth
- Spider material Double Layer

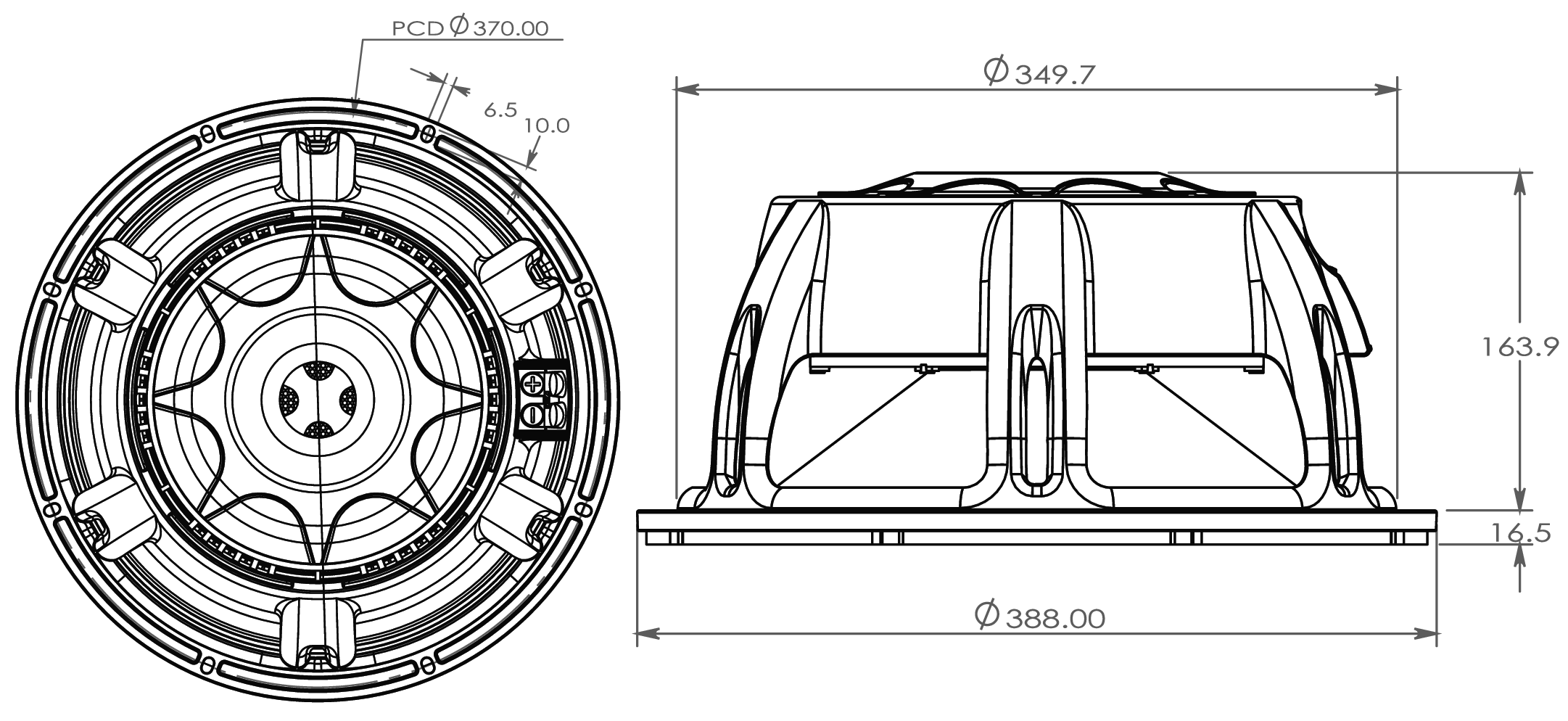

Dimensions
- Nominal diameter 15″
- 381mm
- Overall diameter 388mm
- Baffle cutout diameter 350mm
- Overall depth 181mm
- Flange thickness 17mm
- Mounting depth 164mm
- Volume occupied by the driver (estimated) 5.9L
- Net weight 13.2kg
- Frame material Aluminium
