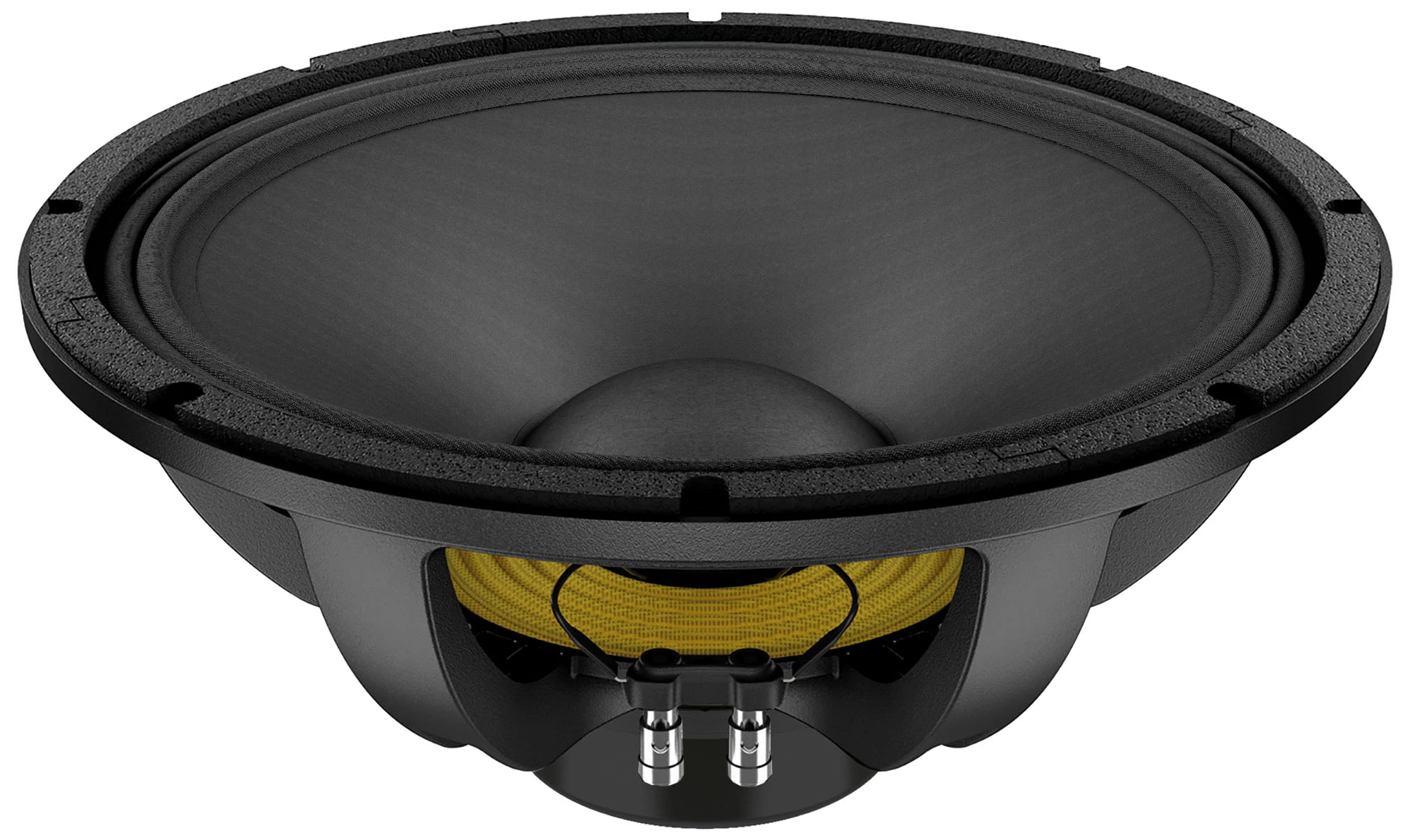

LaVoce WAN153.00-4
4Ω
8ΩWoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 43 Hz |
| Q factor | 0.34 |
| Sensitivity | 95.9 dB |
| Linear excursion | ± 7 mm |
| Program Power | 1000 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.9dB

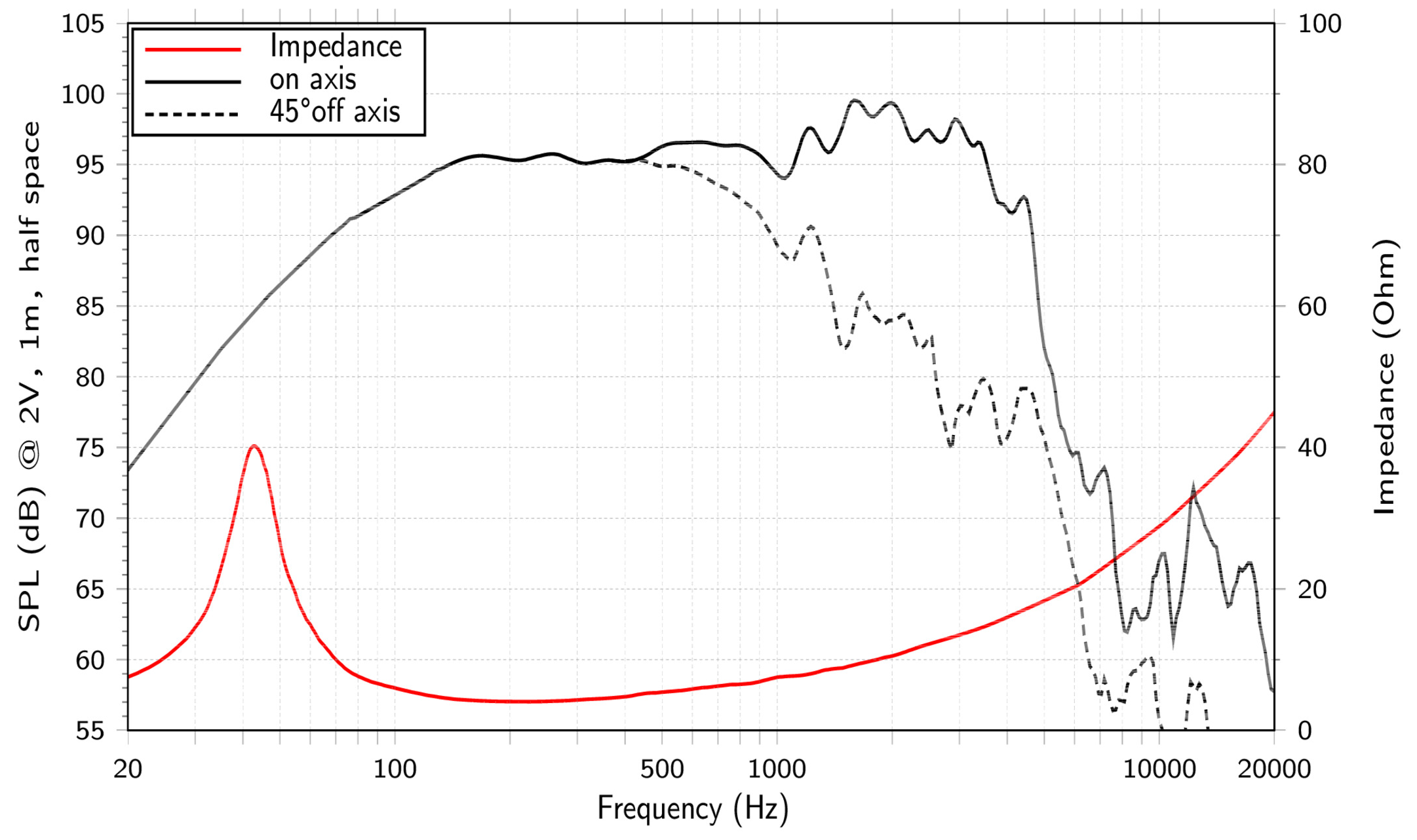

- Frequency response 45 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 43Hz
- Mechanical quality factor QMS 4.48
- Electrical quality factor QES 0.37
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion (one way) xmax 7mm
- Maximum excursion before damage xlim 12.7mm
- Air volume displaced at xmax VD 599cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.5Ω
- Inductance (1kHz) LE 0.62mH
- VC Diameter 75mm
- Winding height HVC 19mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 16.2N/A
- Motor constant Bl/√RE 8.65N/√W
- Air gap height HAG 10.5mm
- Diameter 75mm
- Height 10mm
- Material Neodymium
Diaphragm
- Effective diameter 330mm
- Effective area SD 855cm²
- Moving mass MMS 103g
- Moving mass (without air load) MMD 85.7g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 7.52N/mm
- Compliance CMS 133µm/N
- Equivalent volume to the compliance VAS 138L
- Mechanical resistance RMS 6.2N·s/m
- Surround material Polycotton

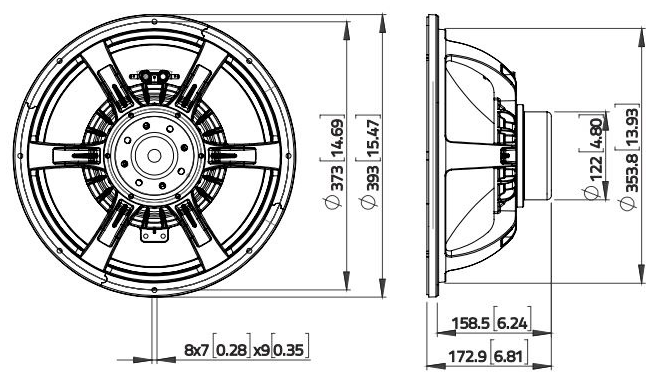

Dimensions
- Nominal diameter 15″
- 380mm
- Volume occupied by the driver 4.9L
- Net weight 5.8kg
- Frame material Aluminium
.webp)
.webp)
