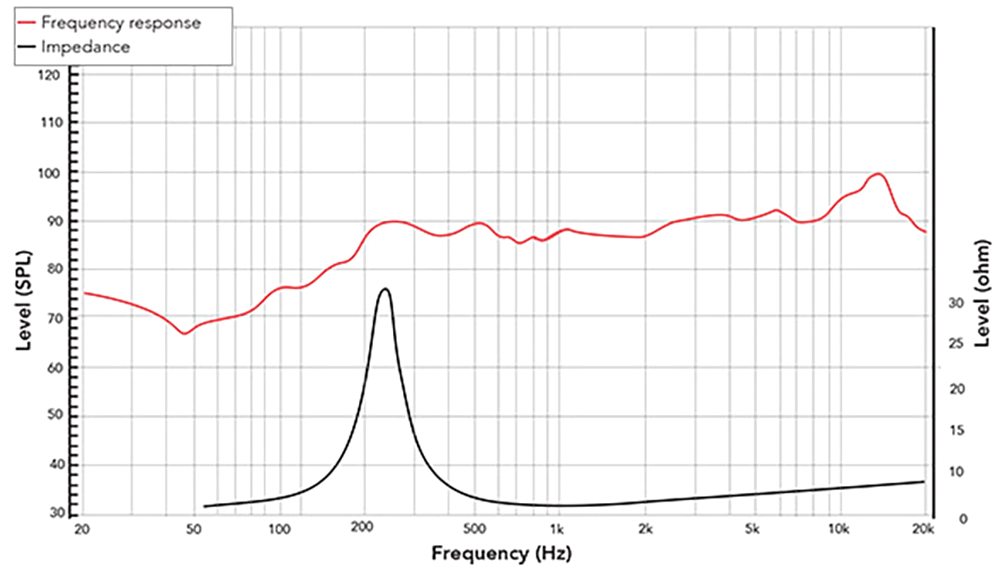

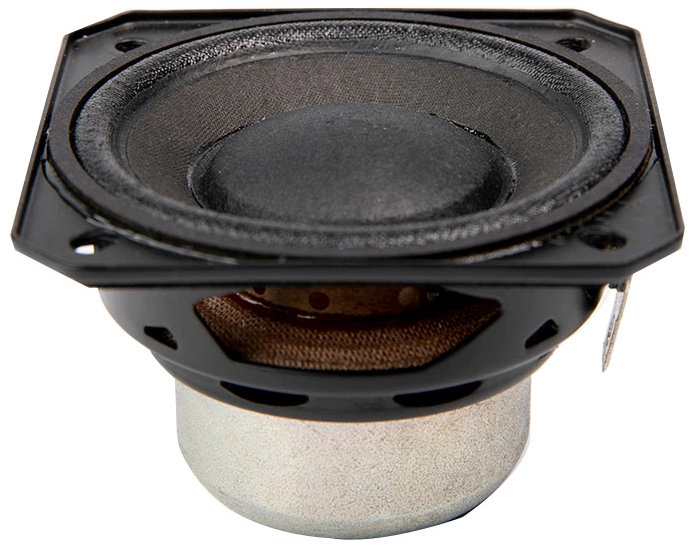

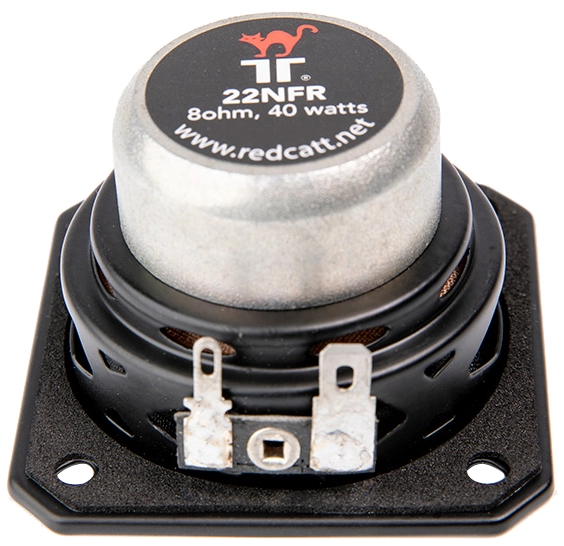

REDCATT 22NFR
8Ω
Full-range
| Nominal diameter | 2″ / 61 mm |
| Resonance | 255 Hz |
| Q factor | 0.85 |
| Sensitivity | 83.9 dB |
| Linear excursion | ± 1.8 mm |
| Program Power | 40 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 255Hz
- Mechanical quality factor QMS 6.46
- Electrical quality factor QES 0.98
- Total quality factor QTS 0.85
Large signal parameters
- Maximum linear excursion (one way) xmax 1.8mm
- Air volume displaced at xmax VD 2.9cm³
- Power handling P 20W
- Program power Pmax 40W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 0.06mH
- VC Diameter 25.4mm
- Winding height HVC 5.5mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 3.91N/A
- Motor constant Bl/√RE 1.65N/√W
- Air gap height HAG 4mm
- Material Neodymium
Diaphragm
- Effective diameter 45mm
- Effective area SD 15.9cm²
- Moving mass MMS 1.67g
- Moving mass (without air load) MMD 1.6g
- Material Paper
Suspensions
- Stiffness KMS 4.29N/mm
- Compliance CMS 233µm/N
- Equivalent volume to the compliance VAS 0.08L
- Mechanical resistance RMS 0.41N·s/m
- Surround material Fabric
- Spider material Conex
Dimensions
- Nominal diameter 2″
- 61mm
- Overall diameter 61mm
- Baffle cutout diameter 52mm
- Mounting depth 36mm
- Net weight 0.12kg
.webp)
.webp)
