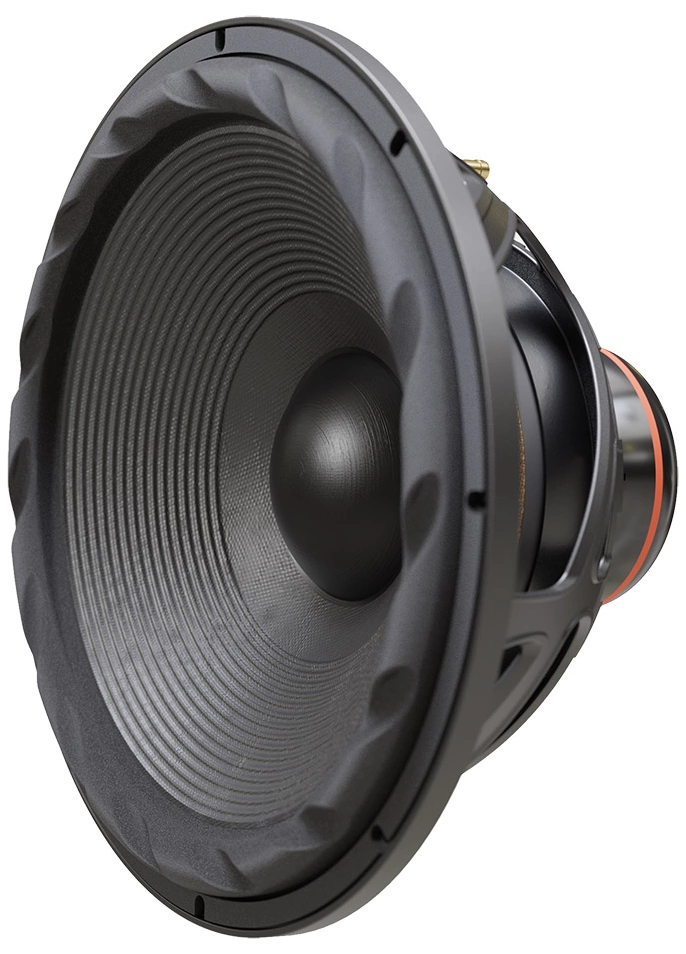

REDCATT 18XR
4Ω
Subwoofer
| Nominal diameter | 18″ / 468 mm |
| Resonance | 21 Hz |
| Q factor | 0.35 |
| Sensitivity | 90.8 dB |
| Linear excursion | ± 26 mm |
| Program Power | 2400 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 90.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 21Hz
- Mechanical quality factor QMS 17.00
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.35
Large signal parameters
- Maximum linear excursion (one way) xmax 26mm
- Air volume displaced at xmax VD 3267cm³
- Power handling P 1200W
- Program power Pmax 2400W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz) LE 0.54mH
- VC Diameter 101.6mm
- Winding height HVC 22mm
- Winding material Copper
- Former material kapton
Magnet
- Force factor Bl 22.2N/A
- Motor constant Bl/√RE 12.2N/√W
- Air gap height HAG 56mm
- Material Neodymium
Diaphragm
- Effective diameter 400mm
- Effective area SD 1257cm²
- Moving mass MMS 402g
- Moving mass (without air load) MMD 371g
- Material Paper
Suspensions
- Stiffness KMS 7.09N/mm
- Compliance CMS 141µm/N
- Equivalent volume to the compliance VAS 300L
- Mechanical resistance RMS 3.12N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 18″
- 468mm
- Overall diameter 468mm
- Baffle cutout diameter 422mm
- Mounting depth 257mm
- Volume occupied by the driver (estimated) 6.8L
- Net weight 14.7kg
.webp)
.webp)
