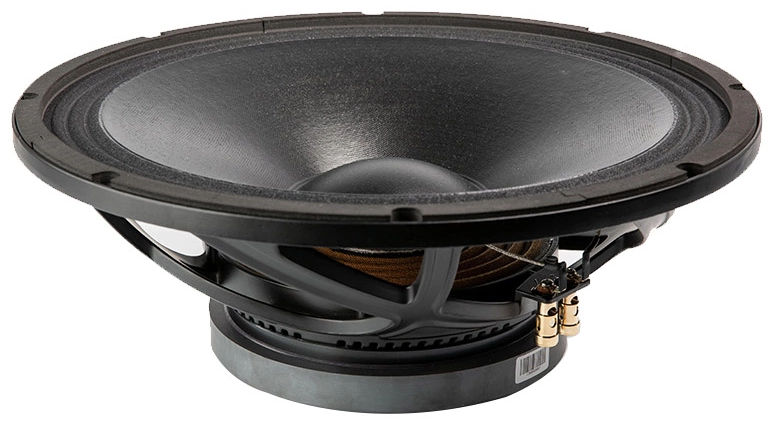

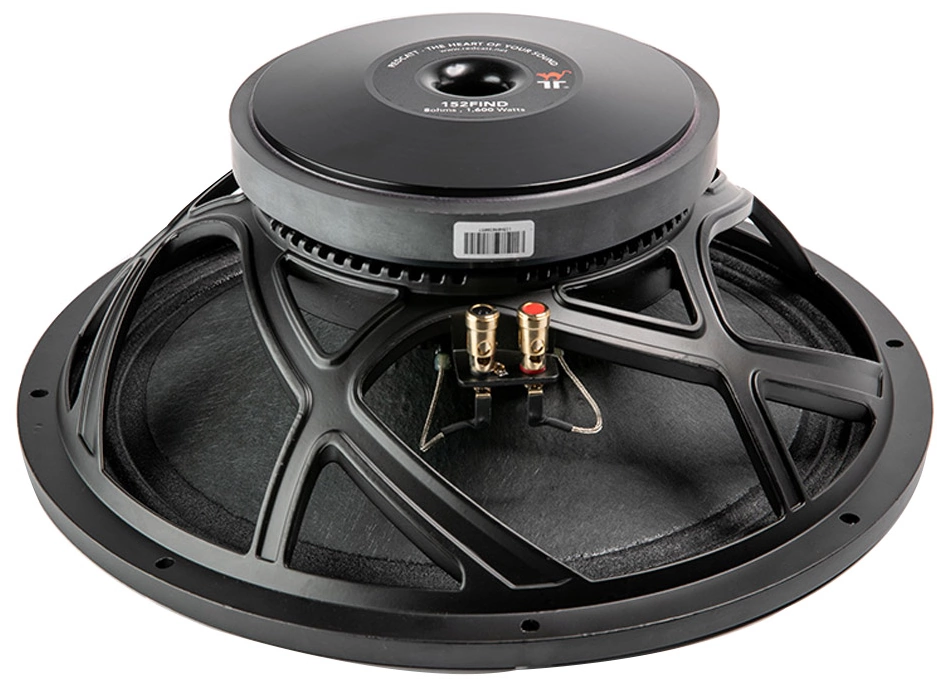

REDCATT 152FIND
8Ω
Subwoofer
| Nominal diameter | 15″ / 392 mm |
| Resonance | 37 Hz |
| Q factor | 0.44 |
| Sensitivity | 93.1 dB |
| Linear excursion | ± 10 mm |
| Program Power | 1600 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 37Hz
- Mechanical quality factor QMS 10.20
- Electrical quality factor QES 0.46
- Total quality factor QTS 0.44
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Air volume displaced at xmax VD 804cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 4.6Ω
- Inductance (1kHz) LE 0.55mH
- VC Diameter 76.2mm
- Winding height HVC 19mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 18.4N/A
- Motor constant Bl/√RE 8.58N/√W
- Air gap height HAG 10mm
- Material Ferrite
Diaphragm
- Effective diameter 320mm
- Effective area SD 804cm²
- Moving mass MMS 140g
- Moving mass (without air load) MMD 124g
- Material Paper
Suspensions
- Stiffness KMS 7.87N/mm
- Compliance CMS 127µm/N
- Equivalent volume to the compliance VAS 119L
- Mechanical resistance RMS 3.19N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 15″
- 392mm
- Overall diameter 392mm
- Baffle cutout diameter 360mm
- Mounting depth 143mm
- Volume occupied by the driver (estimated) 4L
- Net weight 9.0kg
.webp)
.webp)
