REDCATT 101FHW
4Ω
Subwoofer
| Nominal diameter | 10″ / 269 mm |
| Resonance | 27 Hz |
| Q factor | 0.30 |
| Sensitivity | 86.2 dB |
| Linear excursion | ± 11.3 mm |
| Program Power | 400 W |

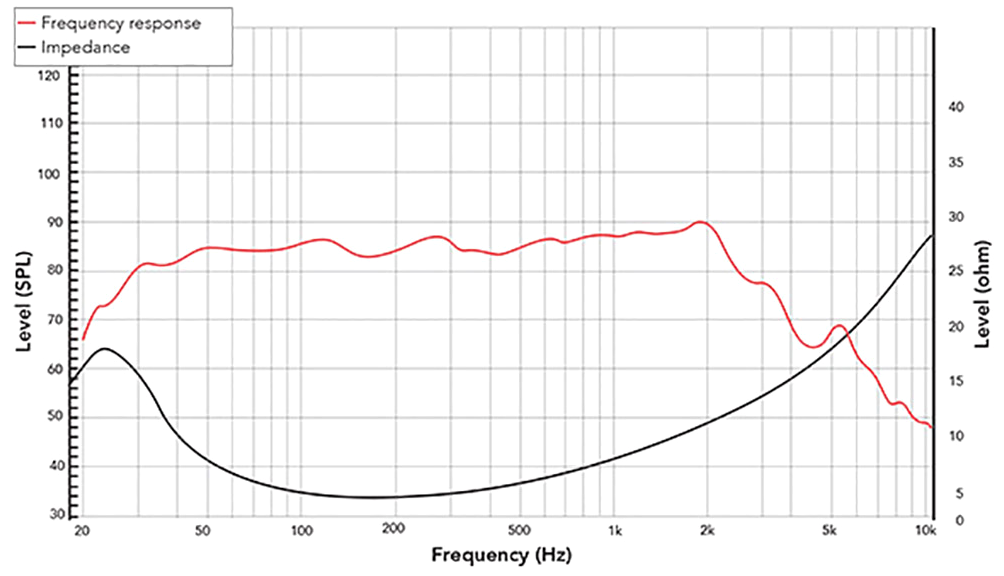

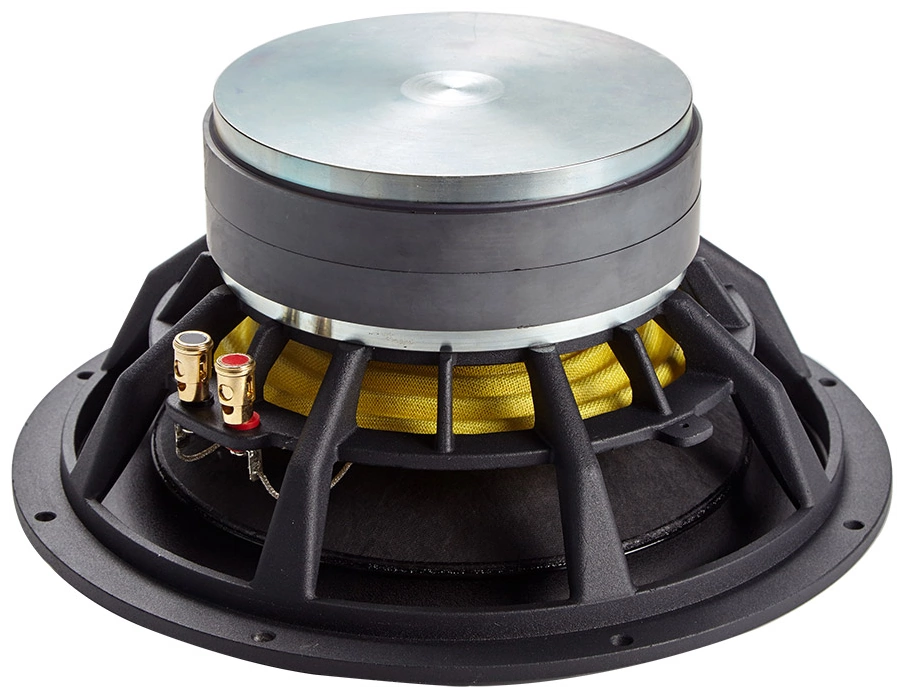

.webp)

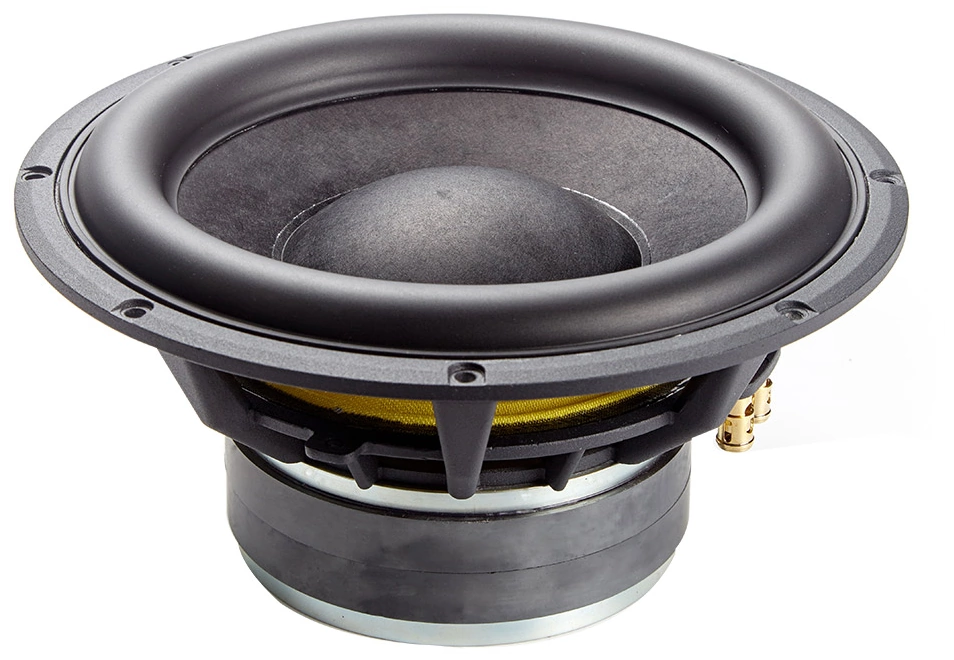

.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.2dB
Thiele & Small parameters
- Resonance frequency (free air) fS 27Hz
- Mechanical quality factor QMS 1.50
- Electrical quality factor QES 0.37
- Total quality factor QTS 0.30
Large signal parameters
- Maximum linear excursion (one way) xmax 11.3mm
- Air volume displaced at xmax VD 373cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.6Ω
- Inductance (1kHz) LE 0.82mH
- VC Diameter 50.8mm
- Winding height HVC 32.3mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor Bl 12.7N/A
- Motor constant Bl/√RE 6.69N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 97.8g
- Moving mass (without air load) MMD 93.2g
- Material Paper
Suspensions
- Stiffness KMS 2.81N/mm
- Compliance CMS 356µm/N
- Equivalent volume to the compliance VAS 54.7L
- Mechanical resistance RMS 11.1N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 269mm
- Overall diameter 269mm
- Baffle cutout diameter 239mm
- Mounting depth 117mm
- Volume occupied by the driver (estimated) 2.6L
- Net weight 6.0kg
.webp)
.webp)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
MfbLabs
