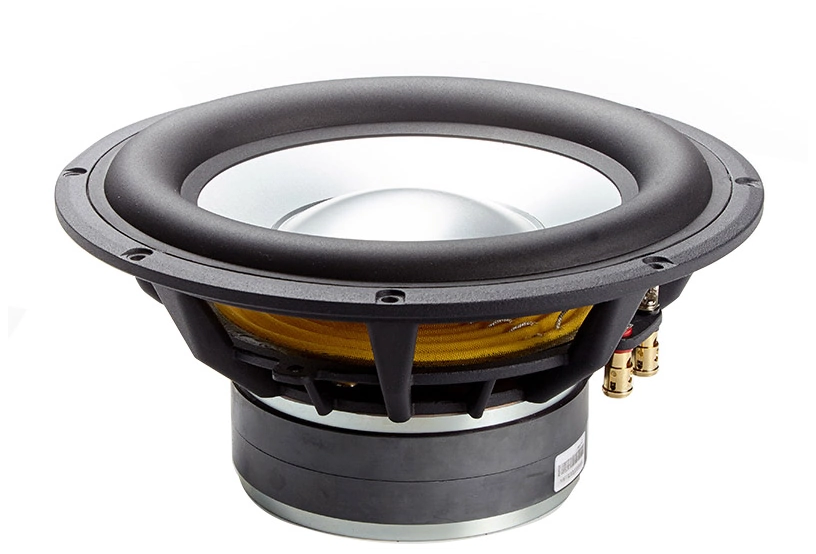

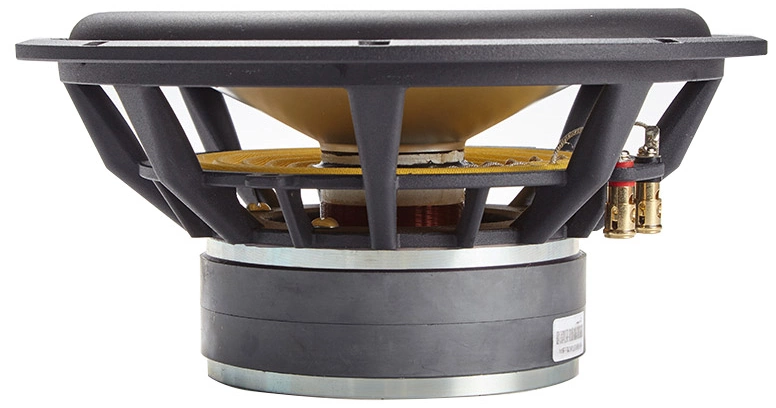

REDCATT 10FHW
4Ω
Subwoofer
| Nominal diameter | 10″ / 262 mm |
| Resonance | 25 Hz |
| Q factor | 0.39 |
| Sensitivity | 93.7 dB |
| Linear excursion | ± 14.7 mm |
| Program Power | 400 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 25Hz
- Mechanical quality factor QMS 13.72
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion (one way) xmax 14.7mm
- Air volume displaced at xmax VD 485cm³
- Power handling P 200W
- Program power Pmax 400W
- Peak power Ppeak 800W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.6Ω
- Inductance (1kHz) LE 0.62mH
- VC Diameter 50.8mm
- Winding height HVC 32.3mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Force factor Bl 12.7N/A
- Motor constant Bl/√RE 6.69N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 210mm
- Effective area SD 330cm²
- Moving mass MMS 110g
- Moving mass (without air load) MMD 36.6g
- Material Aluminum
Suspensions
- Stiffness KMS 7.41N/mm
- Compliance CMS 135µm/N
- Equivalent volume to the compliance VAS 57.9L
- Mechanical resistance RMS 1.3N·s/m
- Surround material Rubber
- Spider material Normex
Dimensions
- Nominal diameter 10″
- 262mm
- Overall diameter 269mm
- Baffle cutout diameter 239mm
- Mounting depth 117mm
- Volume occupied by the driver (estimated) 2.6L
- Net weight 6.0kg
.webp)
.webp)
