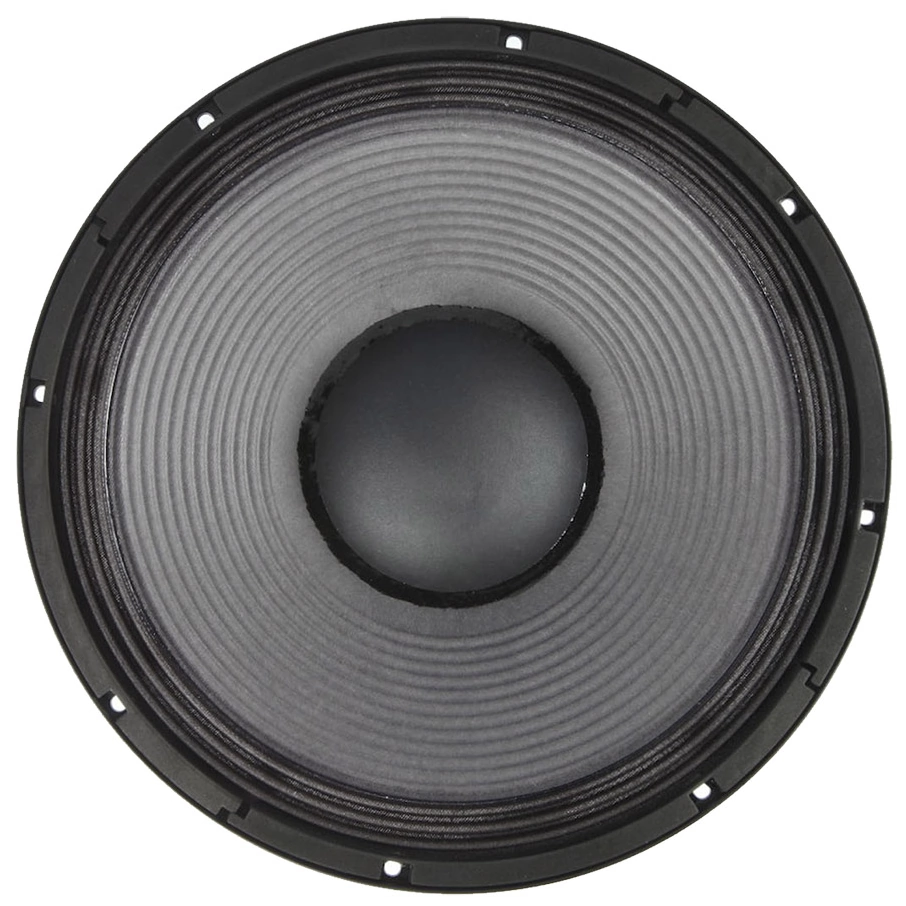

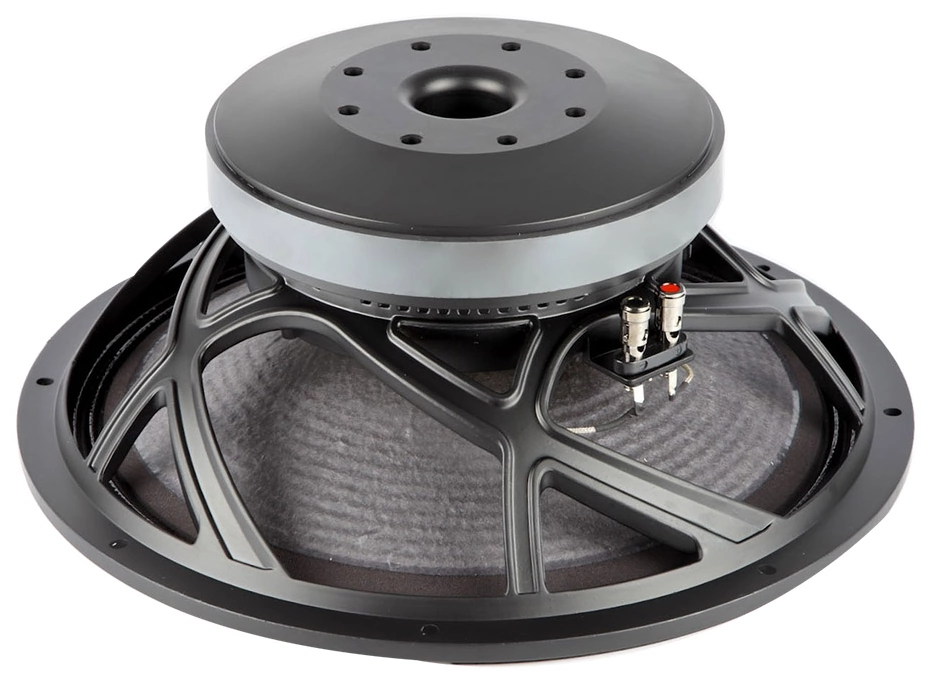

REDCATT 15FIND
8Ω
Woofer
| Nominal diameter | 15″ / 392 mm |
| Resonance | 42 Hz |
| Q factor | 0.36 |
| Sensitivity | 94.3 dB |
| Linear excursion | ± 10.5 mm |
| Program Power | 2000 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 42Hz
- Mechanical quality factor QMS 8.31
- Electrical quality factor QES 0.37
- Total quality factor QTS 0.36
Large signal parameters
- Maximum linear excursion (one way) xmax 10.5mm
- Air volume displaced at xmax VD 925cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 1.18mH
- VC Diameter 101.6mm
- Winding height HVC 25.5mm
- Winding material Copper
- Former material kapton
Magnet
- Force factor Bl 24.6N/A
- Motor constant Bl/√RE 10.6N/√W
- Air gap height HAG 12mm
- Material Ferrite
Diaphragm
- Effective diameter 335mm
- Effective area SD 881cm²
- Moving mass MMS 160g
- Moving mass (without air load) MMD 142g
- Material Paper
Suspensions
- Stiffness KMS 11N/mm
- Compliance CMS 91µm/N
- Equivalent volume to the compliance VAS 96.4L
- Mechanical resistance RMS 5.07N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 15″
- 392mm
- Overall diameter 392mm
- Baffle cutout diameter 360mm
- Mounting depth 150mm
- Volume occupied by the driver (estimated) 5.5L
- Net weight 12.0kg
