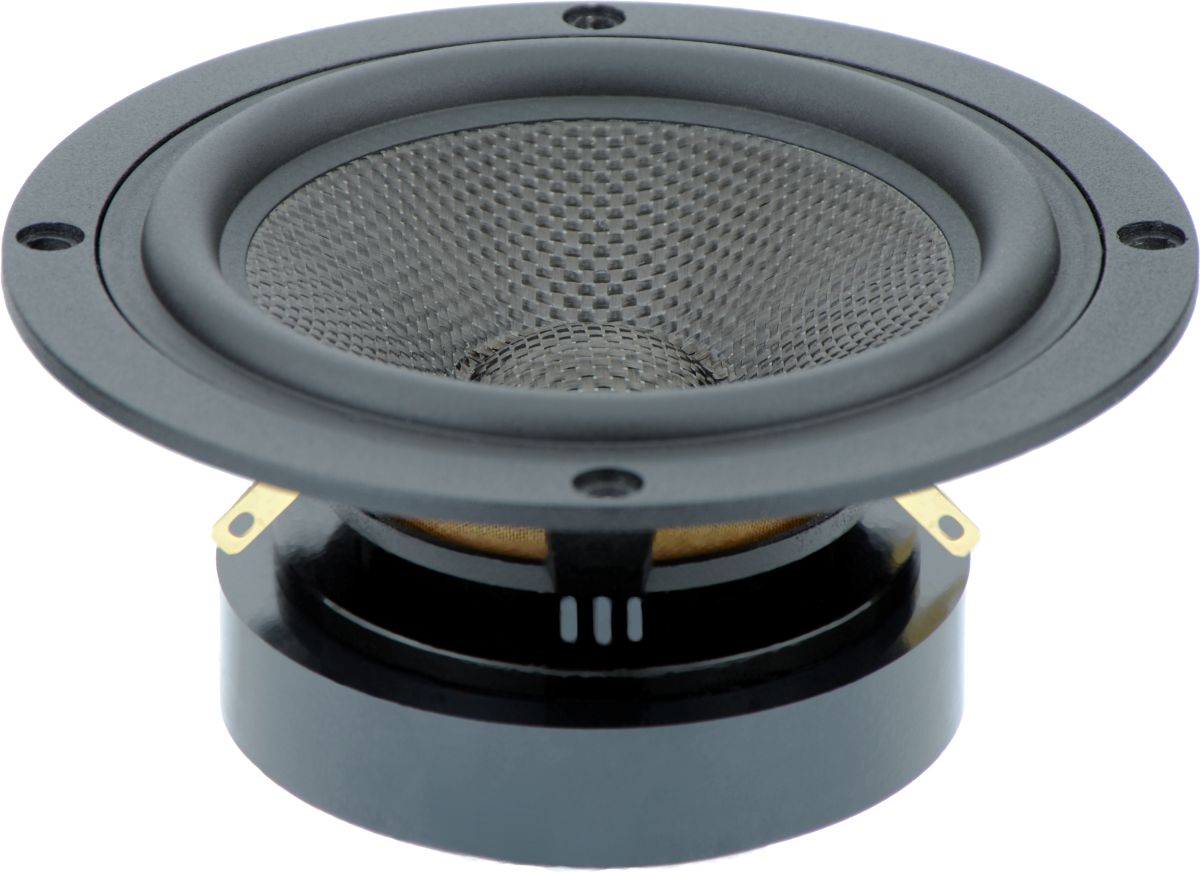

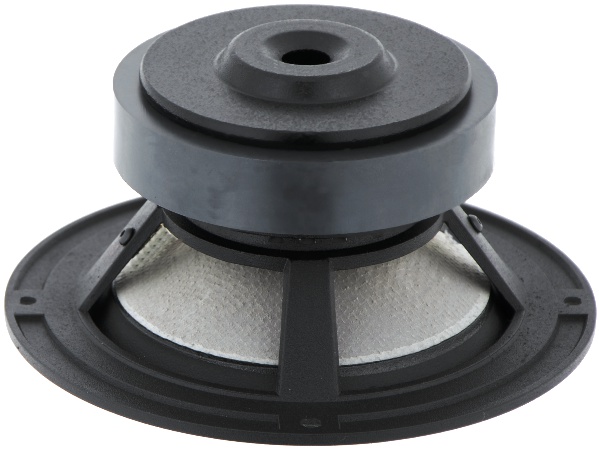

STX W.15.160.16.FCX
8Ω
16Ω
Mid Bass
| Nominal diameter | 6″ / 150 mm |
| Resonance | 38 Hz |
| Q factor | 0.36 |
| Sensitivity | 87.1 dB |
| Linear excursion | ± 5.3 mm |
| Program power | 160 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.1dB

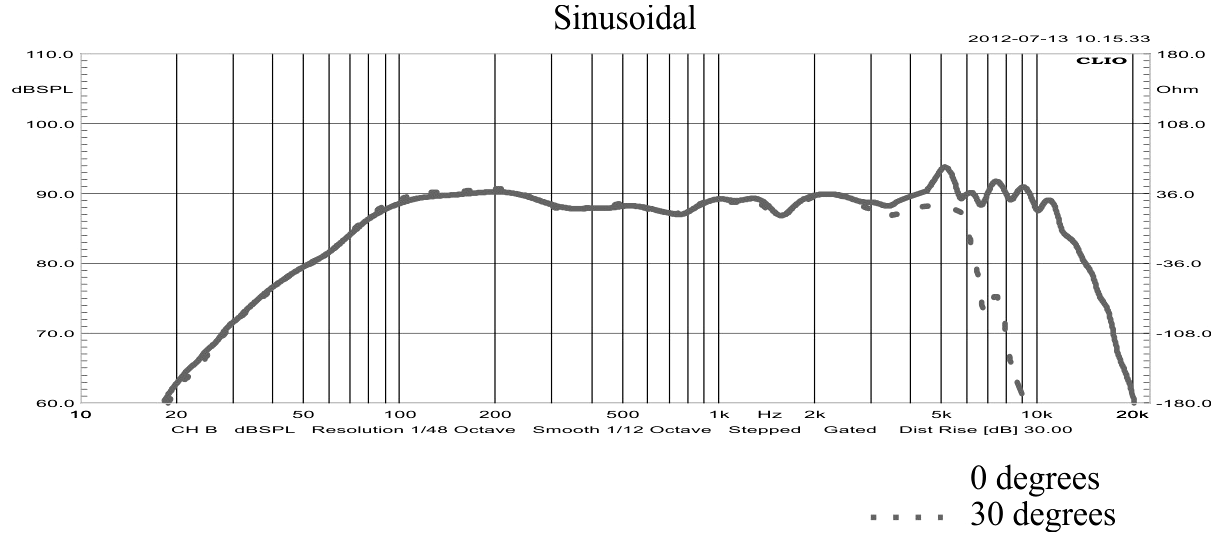

- Frequency response 30 - 10000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 6.30
- Electrical quality factor QES 0.38
- Total quality factor QTS 0.36
Large signal parameters
- Maximum linear excursion (one way) xmax 5.3mm
- Maximum excursion before damage xlim 9mm
- Air volume displaced at xmax VD 50cm³
- Power handling P 100W
- Program power Pmax 160W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 11.3Ω
- Inductance (1kHz) LE 0.28mH
- VC Diameter 25mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Force factor Bl 8.1N/A
- Motor constant Bl/√RE 2.41N/√W
- Material Ferrite
Diaphragm
- Effective diameter 110mm
- Effective area SD 95cm²
- Moving mass (including air load) MMS 9.5g
- Moving mass MMD 8.8g
- Material Carbon fiber
Suspensions
- Stiffness KMS 0.541N/mm
- Compliance CMS 1850µm/N
- Equivalent volume to the compliance VAS 25L
- Mechanical resistance RMS 0.36N·s/m
Dimensions
- Nominal diameter 6″
- 150mm
- Overall diameter 156mm
- Baffle cutout diameter 121mm
- Overall depth 76mm
- Volume occupied by the driver (estimated) 0.44L
- Net weight 1.4kg
- Frame material Aluminium
.webp)
.webp)
