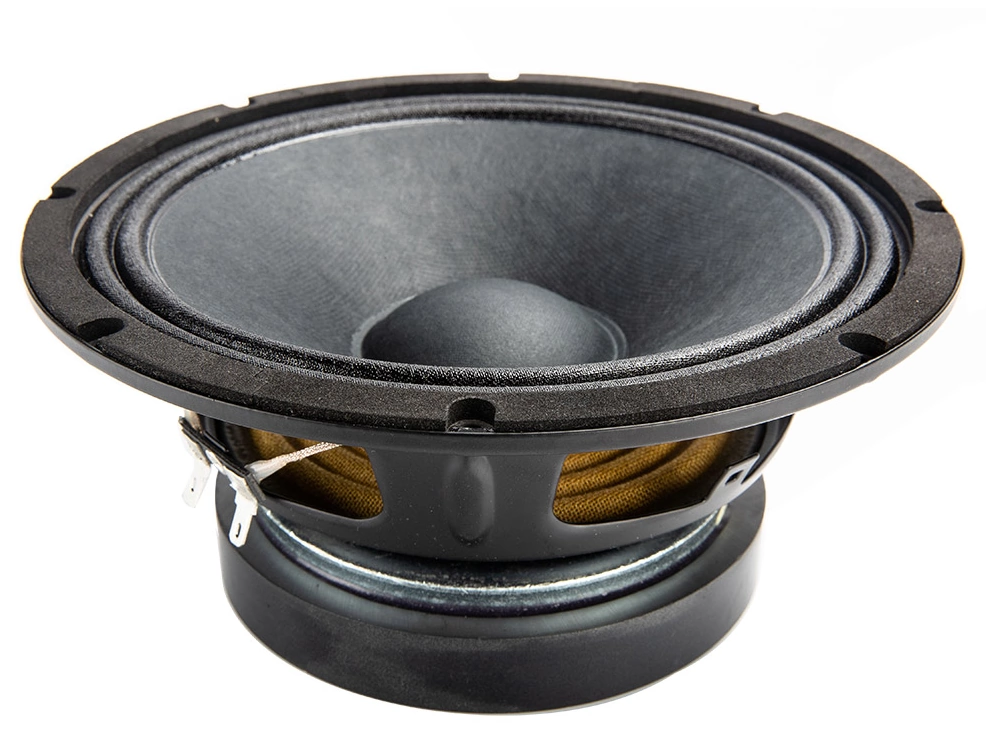

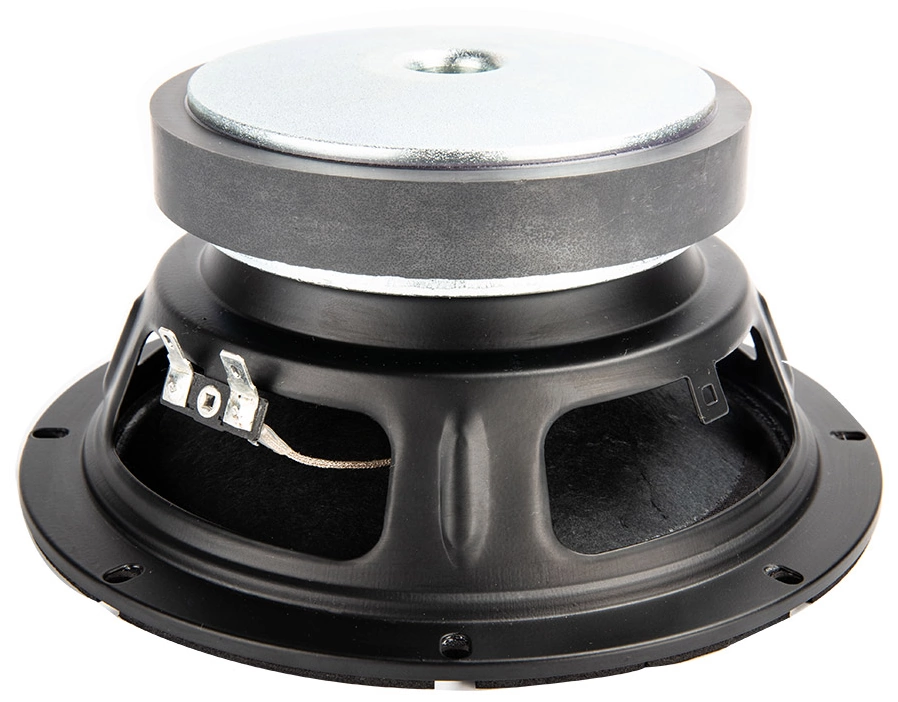

REDCATT 81FIND
8Ω
Mid Bass
| Nominal diameter | 8″ / 209 mm |
| Resonance | 80 Hz |
| Q factor | 0.50 |
| Sensitivity | 92.1 dB |
| Linear excursion | ± 6.6 mm |
| Program Power | 400 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 80Hz
- Mechanical quality factor QMS 8.35
- Electrical quality factor QES 0.53
- Total quality factor QTS 0.50
Large signal parameters
- Maximum linear excursion (one way) xmax 6.6mm
- Air volume displaced at xmax VD 141cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 4.7Ω
- Inductance (1kHz) LE 0.44mH
- VC Diameter 50.8mm
- Winding height HVC 12.5mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 10.2N/A
- Motor constant Bl/√RE 4.7N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 165mm
- Effective area SD 214cm²
- Moving mass MMS 22.6g
- Moving mass (without air load) MMD 20.3g
- Material Paper
Suspensions
- Stiffness KMS 5.88N/mm
- Compliance CMS 170µm/N
- Equivalent volume to the compliance VAS 11.3L
- Mechanical resistance RMS 1.36N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 8″
- 209mm
- Overall diameter 209mm
- Baffle cutout diameter 180mm
- Mounting depth 92mm
- Volume occupied by the driver (estimated) 1.2L
- Net weight 2.8kg
