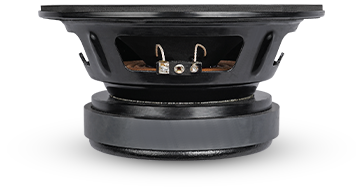

SB Audience BIANCO-8MW250
8Ω
Woofer
| Nominal diameter | 8″ / 206 mm |
| Resonance | 74 Hz |
| Q factor | 0.40 |
| Sensitivity | 92.5 dB |
| Linear excursion | ± 6.5 mm |
| Program Power | 500 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.5dB

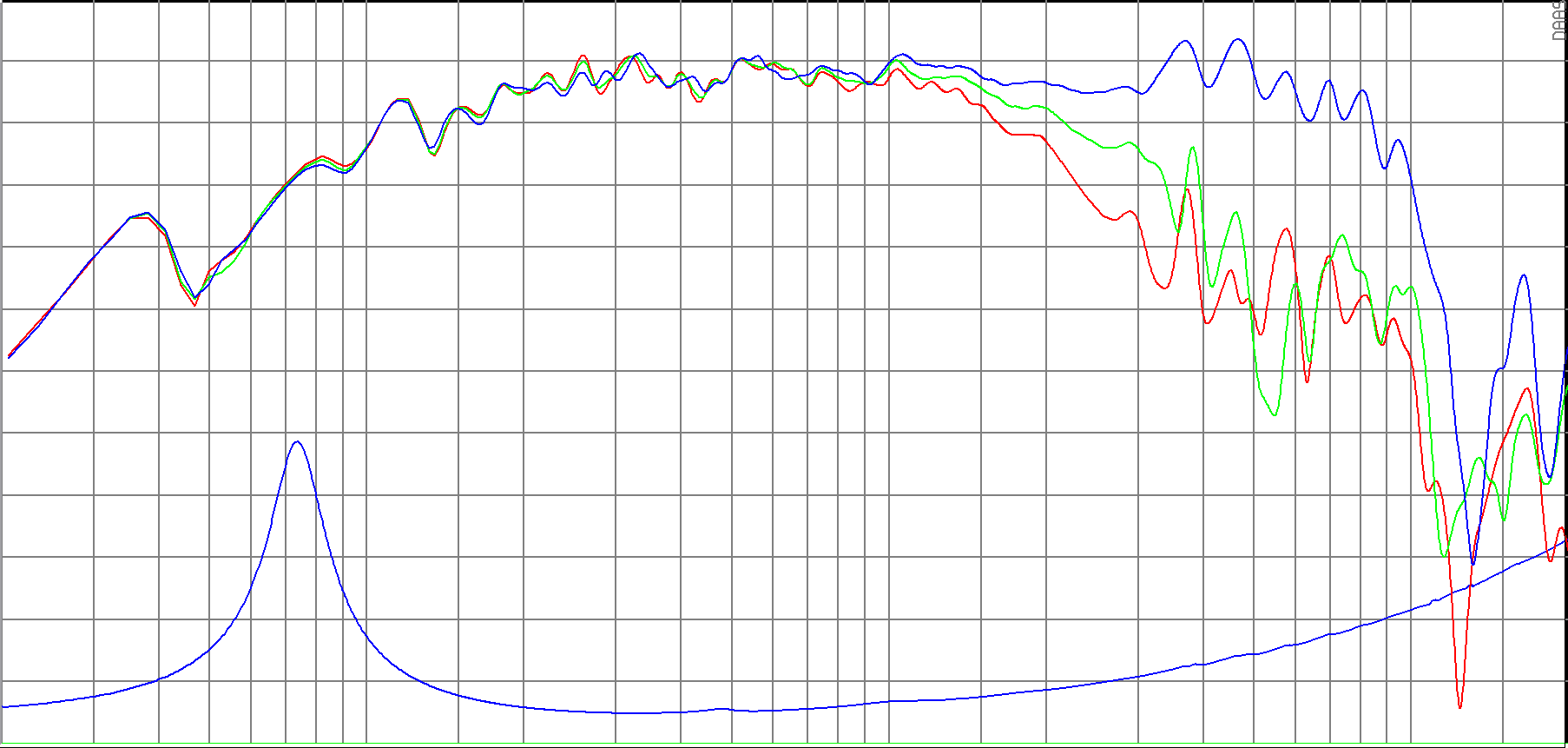

- Frequency response 75 - 10300Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 74Hz
- Mechanical quality factor QMS 3.86
- Electrical quality factor QES 0.45
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion xmax 6.5mm
- Maximum excursion before damage xlim 12mm
- Air volume displaced at xmax VD 137cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 0.53mH
- VC Diameter 49.5mm
- Winding height HVC 15.8mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.26T
- Force factor Bl 11N/A
- Motor constant Bl/√RE 4.65N/√W
- Air gap height HAG 8mm
- Diameter 145mm
- Material Ferrite
Diaphragm
- Effective diameter 164mm
- Effective area SD 211cm²
- Moving mass MMS 21g
- Moving mass (without air load) MMD 18.7g
- Material Paper (coated)
Suspensions
- Stiffness KMS 4.55N/mm
- Compliance CMS 220µm/N
- Equivalent volume to the compliance VAS 13.8L
- Mechanical resistance RMS 2.53N·s/m
- Surround material Cloth triple roll

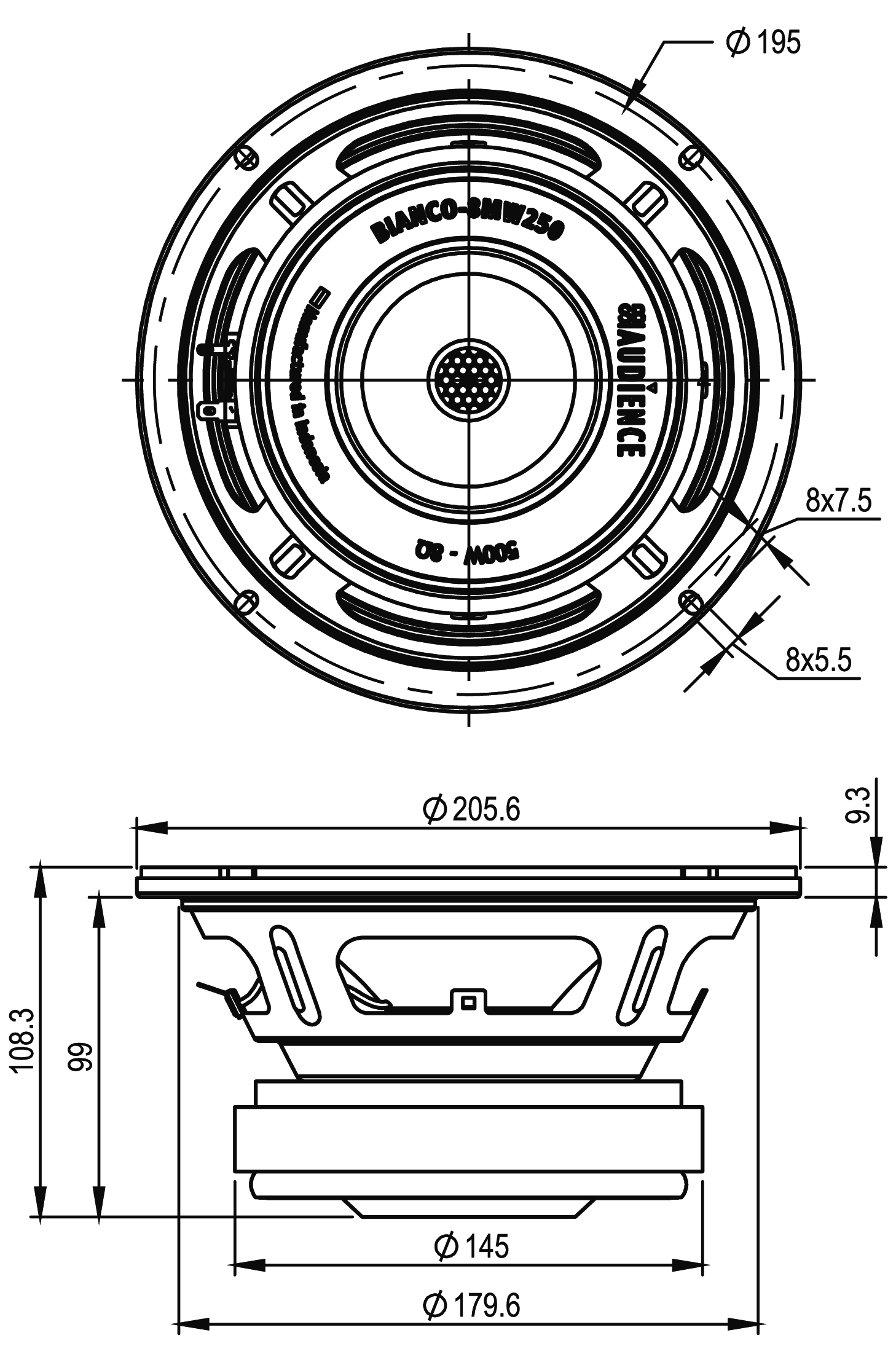

Dimensions
- Nominal diameter 8″
- 206mm
- Overall diameter 206mm
- Baffle cutout diameter 182mm
- Overall depth 108mm
- Flange thickness 9mm
- Mounting depth 99mm
- Volume occupied by the driver 1.8L
- Net weight 3.7kg
- Frame material Steel
