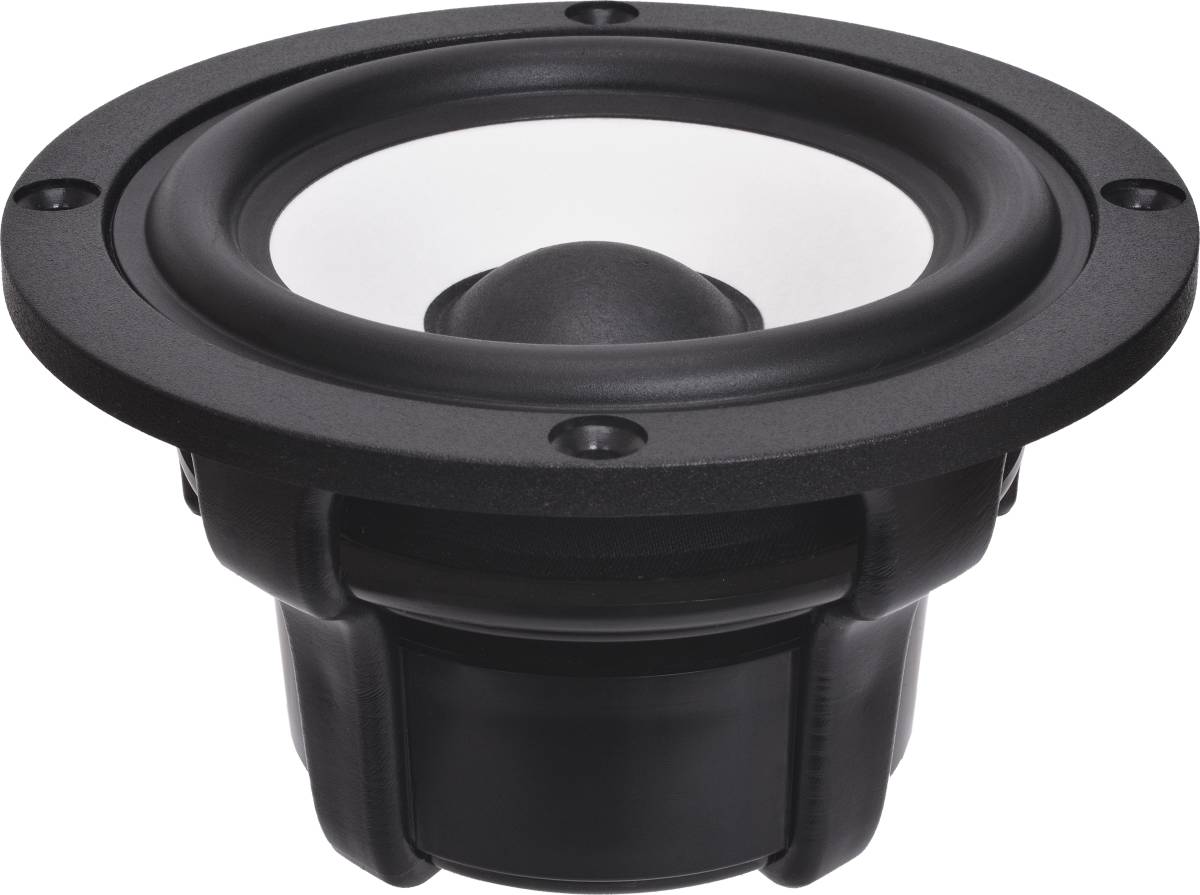

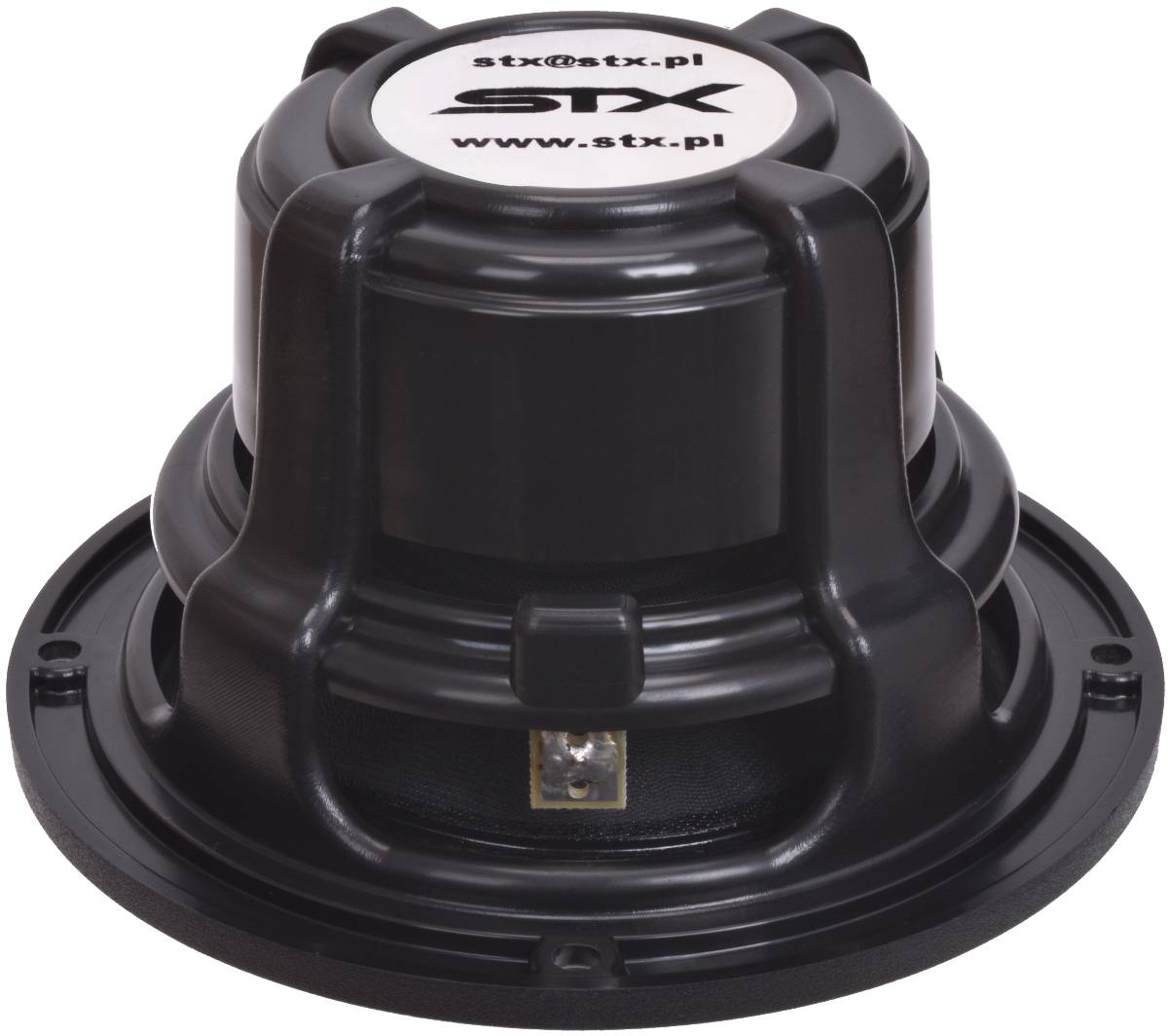

STX W.12.100.8.WMC
8Ω
Mid Bass
| Nominal diameter | 4.5″ / 120 mm |
| Resonance | 77 Hz |
| Q factor | 0.70 |
| Sensitivity | 83.7 dB |
| Linear excursion | ± 4 mm |
| Program power | 100 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.7dB
- Frequency response 70 - 15000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 77Hz
- Mechanical quality factor QMS 2.25
- Electrical quality factor QES 1.02
- Total quality factor QTS 0.70
Large signal parameters
- Maximum linear excursion (one way) xmax 4mm
- Maximum excursion before damage xlim 7.5mm
- Air volume displaced at xmax VD 23cm³
- Power handling P 50W
- Program power Pmax 100W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.0Ω
- Inductance (1kHz) LE 0.32mH
- VC Diameter 25mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor Bl 3.5N/A
- Motor constant Bl/√RE 1.57N/√W
- Material Ferrite
Diaphragm
- Effective diameter 85mm
- Effective area SD 57cm²
- Moving mass (including air load) MMS 5.4g
- Moving mass MMD 5.1g
- Material Modified cellulose
Suspensions
- Stiffness KMS 1.28N/mm
- Compliance CMS 780µm/N
- Equivalent volume to the compliance VAS 3.5L
- Mechanical resistance RMS 1.16N·s/m
Dimensions
- Nominal diameter 4.5″
- 120mm
- Overall diameter 121mm
- Baffle cutout diameter 98mm
- Overall depth 68mm
- Volume occupied by the driver (estimated) 0.22L
- Net weight 0.7kg
- Frame material Plastic (ABS)
.webp)
.webp)
