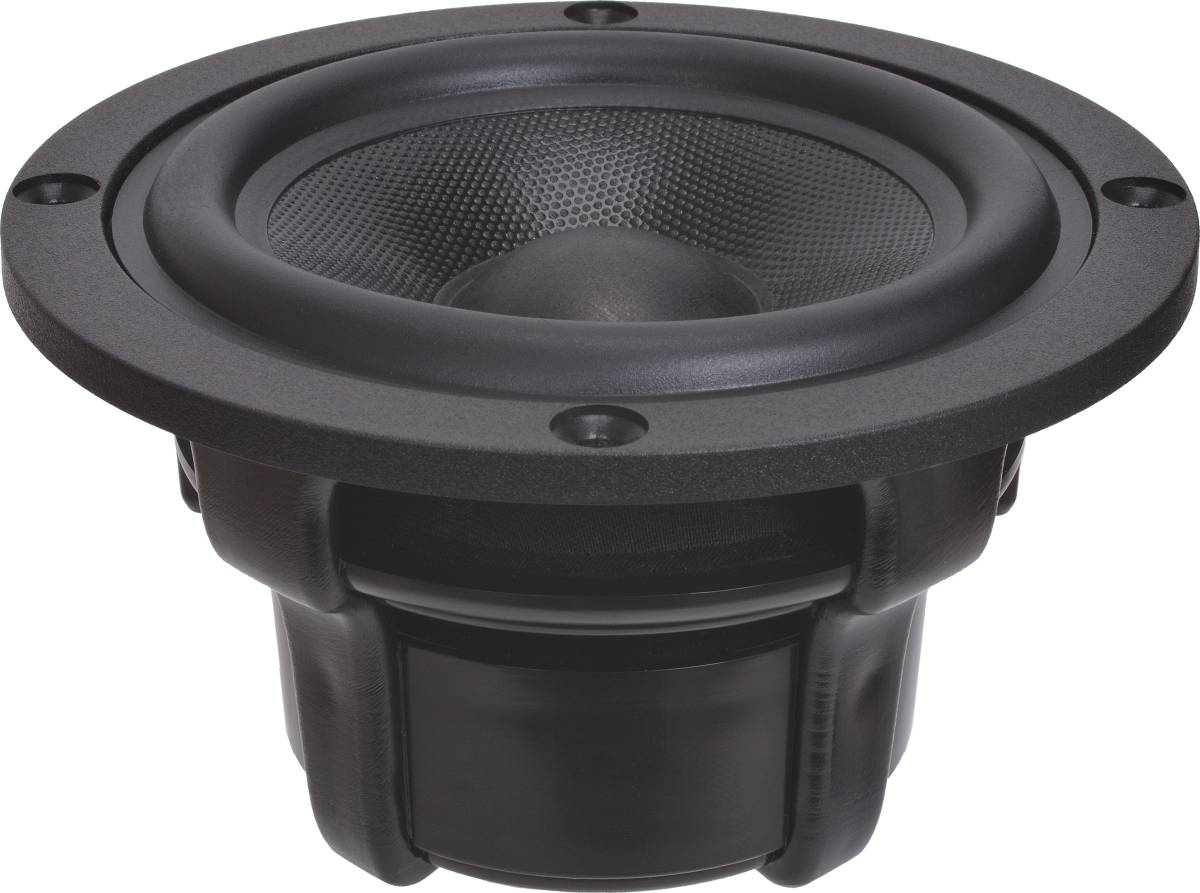

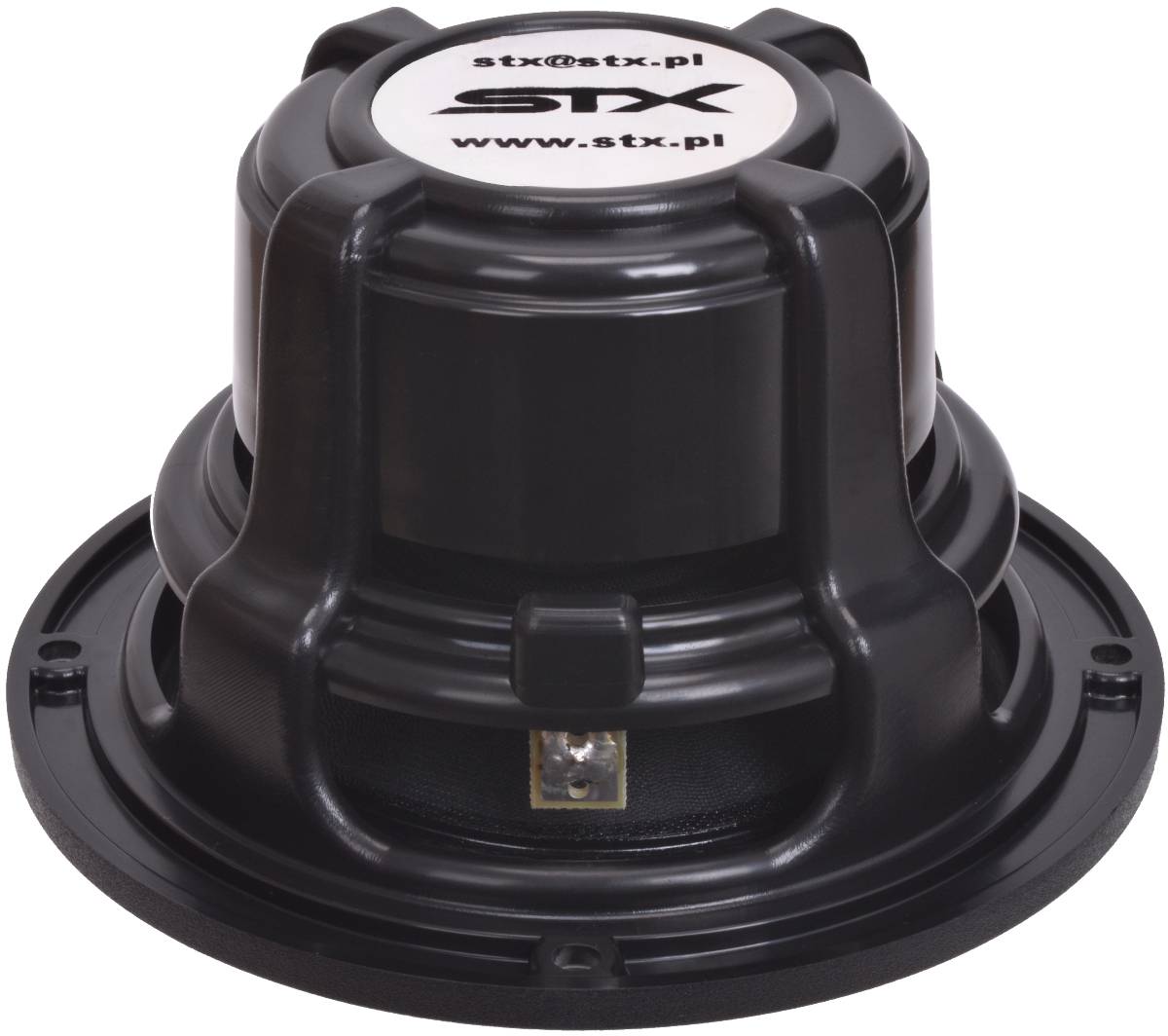

STX W.12.100.8.MC
8Ω
Mid Bass
| Nominal diameter | 4.5″ / 120 mm |
| Resonance | 76 Hz |
| Q factor | 0.74 |
| Sensitivity | 83.6 dB |
| Linear excursion | ± 4 mm |
| Program power | 100 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.6dB

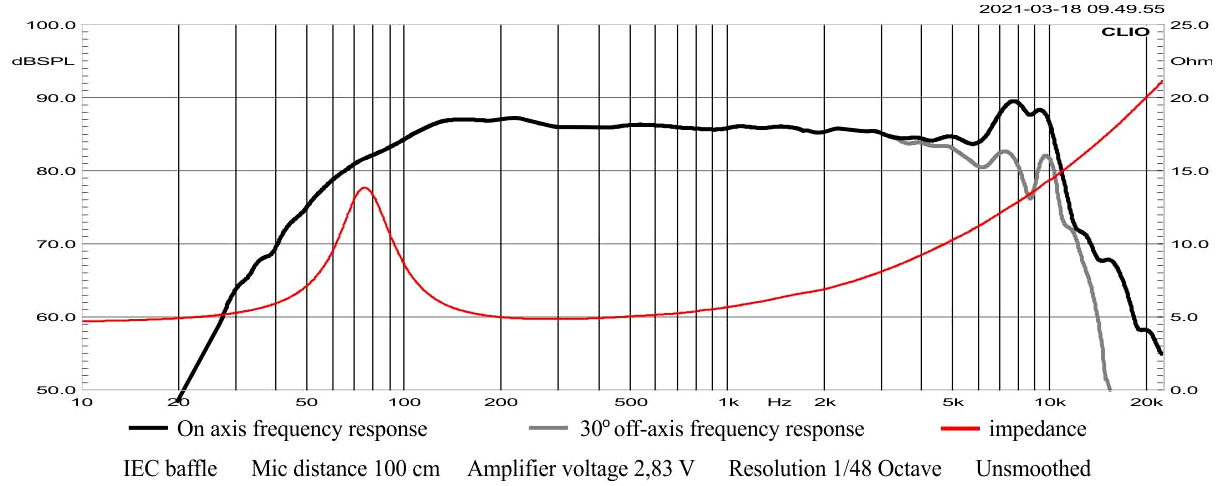

- Frequency response 70 - 15000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 76Hz
- Mechanical quality factor QMS 2.31
- Electrical quality factor QES 1.10
- Total quality factor QTS 0.74
Large signal parameters
- Maximum linear excursion (one way) xmax 4mm
- Maximum excursion before damage xlim 7.5mm
- Air volume displaced at xmax VD 23cm³
- Power handling P 50W
- Program power Pmax 100W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.0Ω
- Inductance (1kHz) LE 0.28mH
- VC Diameter 25mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor Bl 3.5N/A
- Motor constant Bl/√RE 1.57N/√W
- Material Ferrite
Diaphragm
- Effective diameter 85mm
- Effective area SD 57cm²
- Moving mass (including air load) MMS 5.5g
- Moving mass MMD 5.2g
- Material Modified cellulose
Suspensions
- Stiffness KMS 1.27N/mm
- Compliance CMS 790µm/N
- Equivalent volume to the compliance VAS 3.6L
- Mechanical resistance RMS 1.14N·s/m

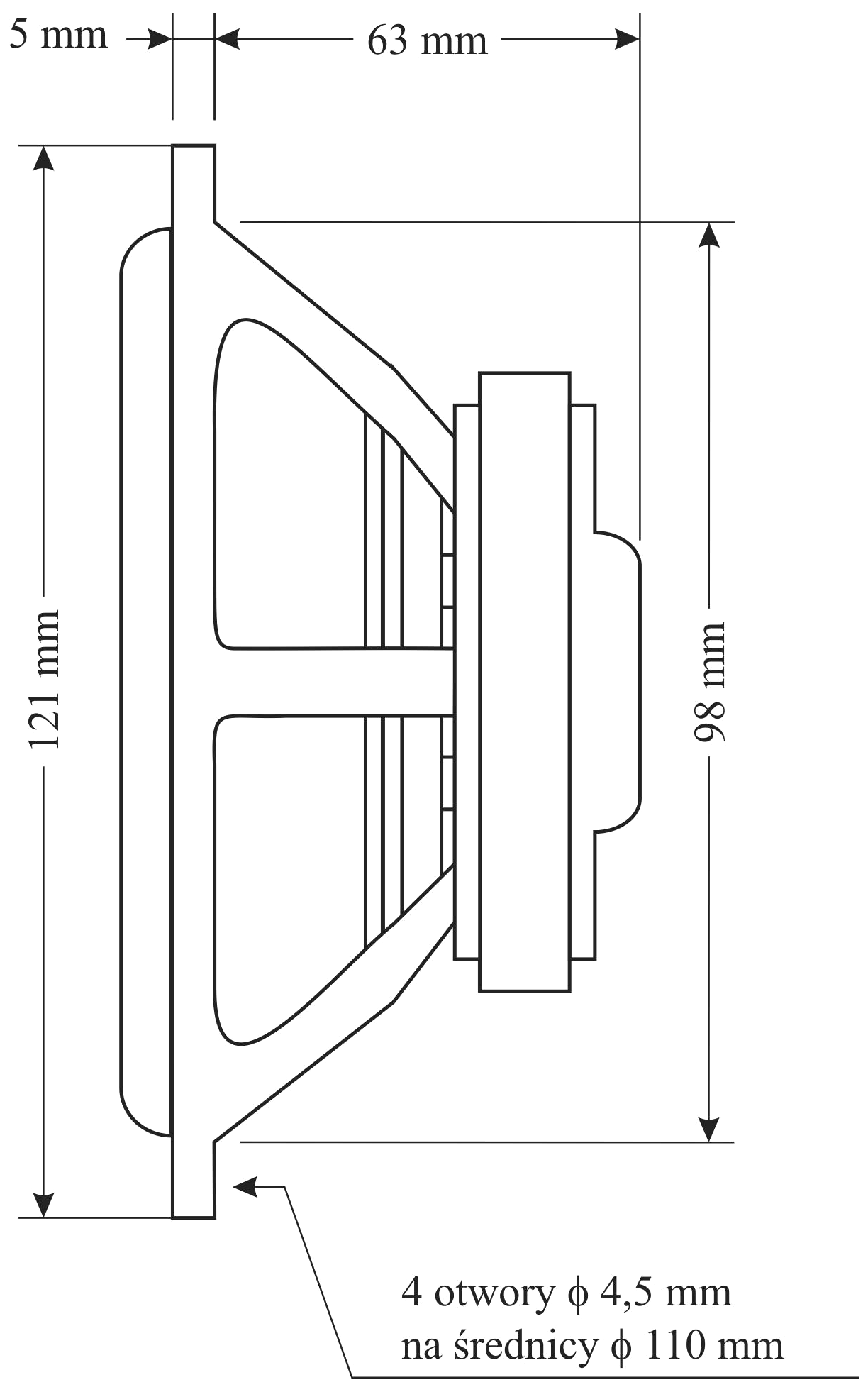

Dimensions
- Nominal diameter 4.5″
- 120mm
- Overall diameter 121mm
- Baffle cutout diameter 98mm
- Overall depth 68mm
- Volume occupied by the driver (estimated) 0.22L
- Net weight 0.7kg
- Frame material Plastic (ABS)
.webp)
.webp)
