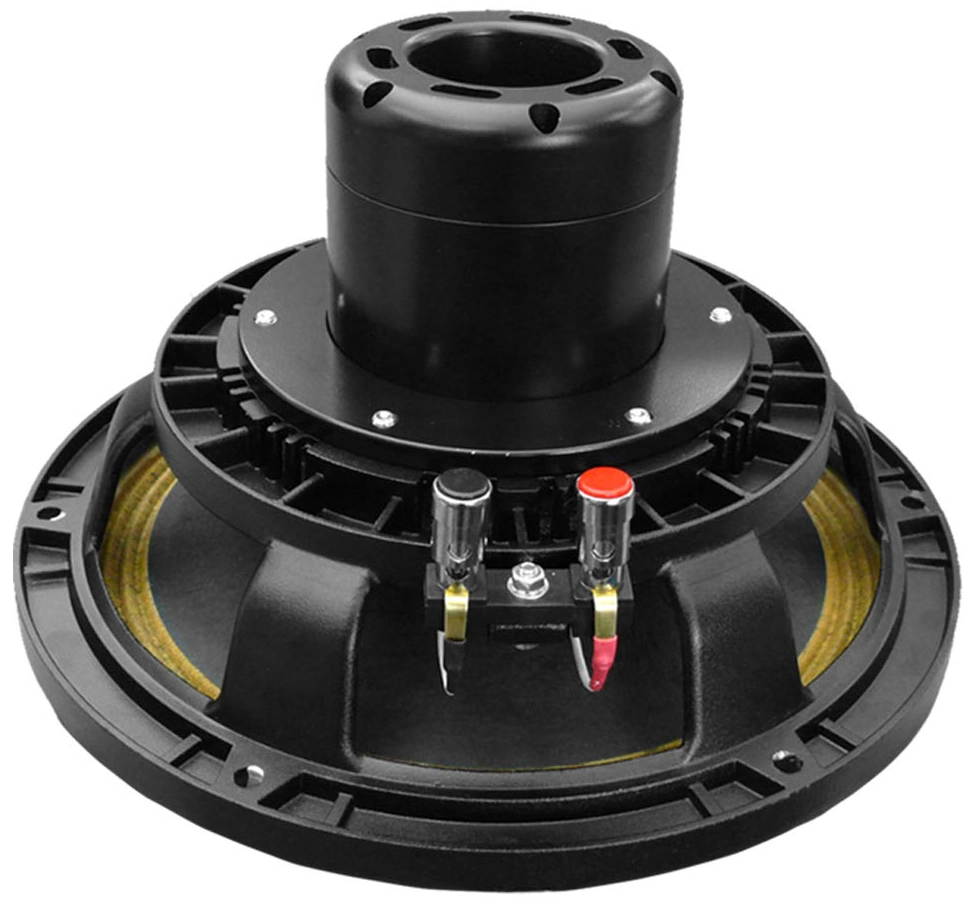

Oberton 10NDG500
8Ω
Mid Bass
| Nominal diameter | 10″ / 263 mm |
| Resonance | 55.9 Hz |
| Q factor | 0.34 |
| Sensitivity | 92 dB |
| Linear excursion | ± 9.5 mm |
| Program Power | 1000 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92dB

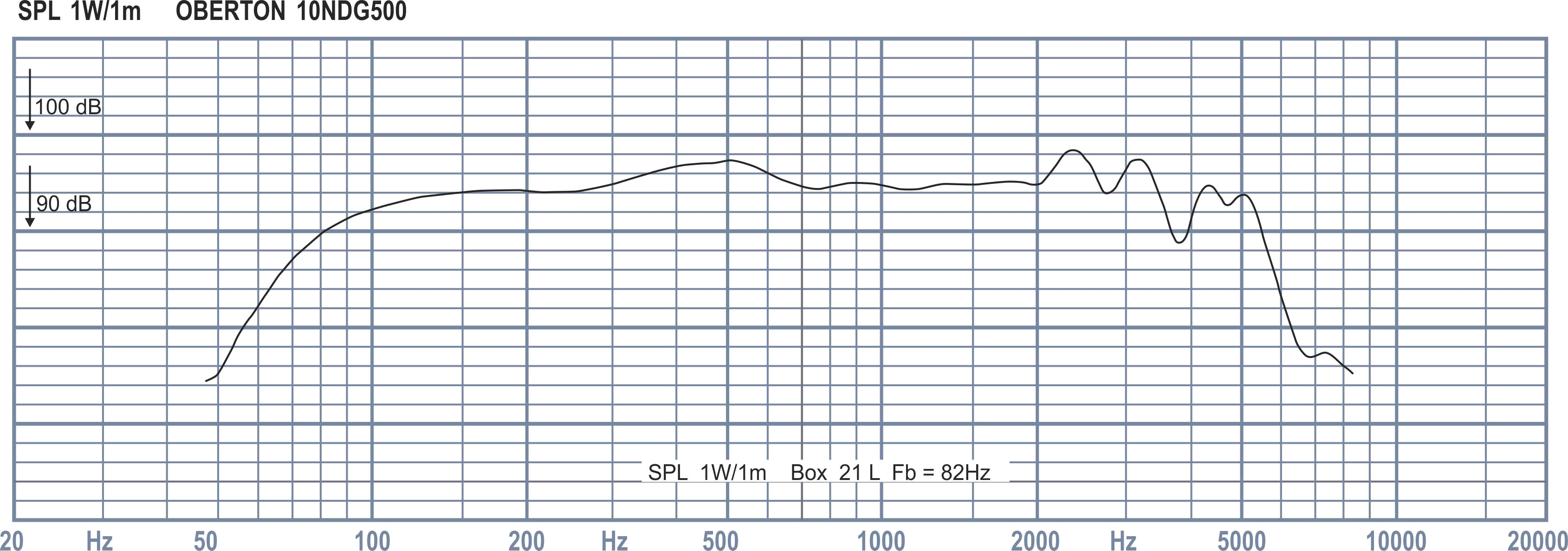

- Frequency response 40 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 55.9Hz
- Mechanical quality factor QMS 11.11
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion (one way) xmax 9.5mm
- Air volume displaced at xmax VD 301cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 0.678mH
- VC Diameter 64mm
- Winding height HVC 23mm
- Winding material Aluminium
- Former material Glassfibre
Magnet
- Force factor Bl 17.4N/A
- Motor constant Bl/√RE 7.42N/√W
- Air gap height HAG 8mm
- Material Neodymium
Diaphragm
- Effective diameter 201mm
- Effective area SD 317cm²
- Moving mass MMS 54.2g
- Moving mass (without air load) MMD 49.9g
- Material Paper
Suspensions
- Stiffness KMS 6.67N/mm
- Compliance CMS 150µm/N
- Equivalent volume to the compliance VAS 21.5L
- Mechanical resistance RMS 1.71N·s/m

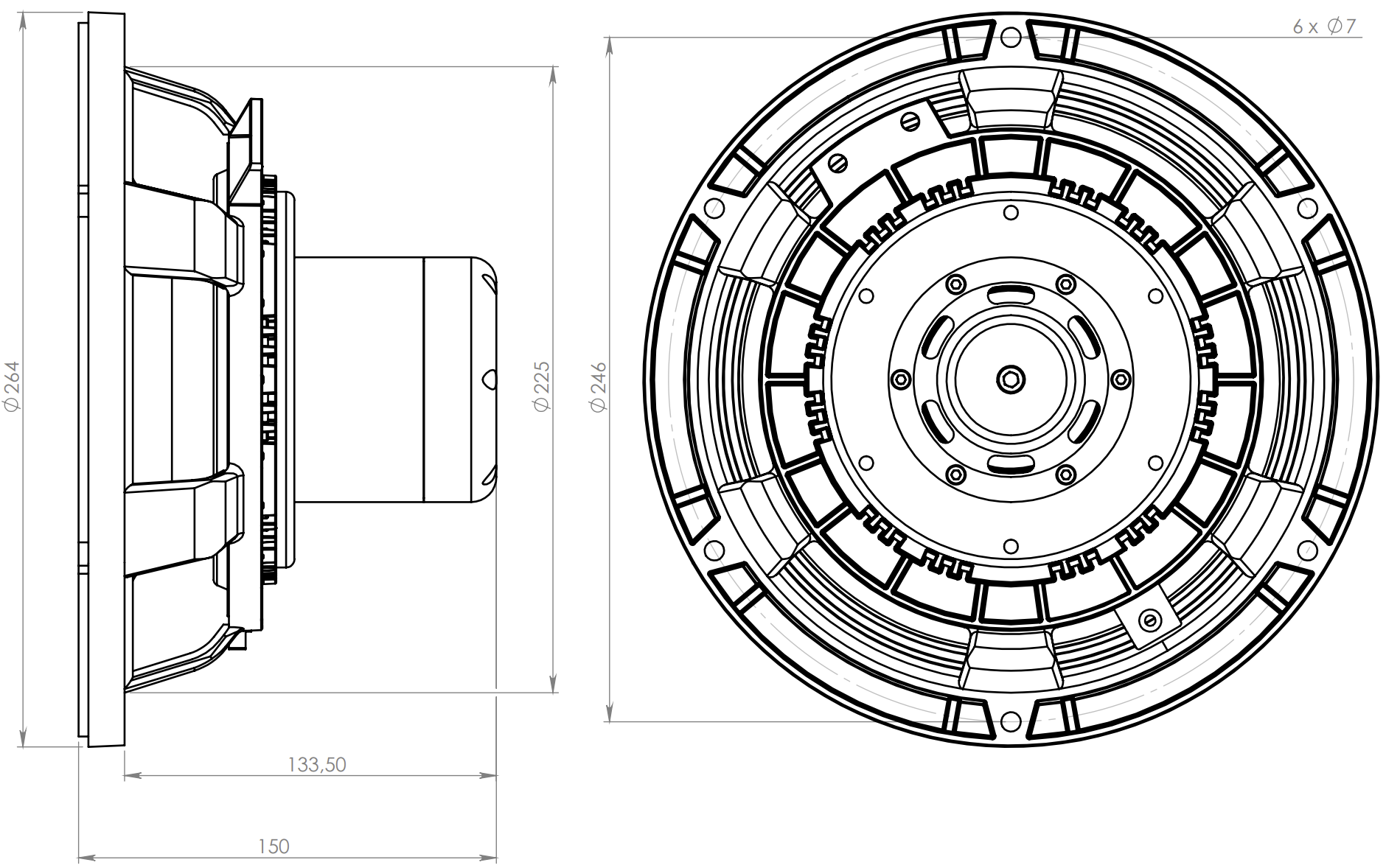

Dimensions
- Nominal diameter 10″
- 263mm
- Overall diameter 264mm
- Baffle cutout diameter 225mm
- Overall depth 150mm
- Volume occupied by the driver (estimated) 1.5L
- Net weight 2.9kg
- Frame material Die cast aluminium
.webp)
.webp)
