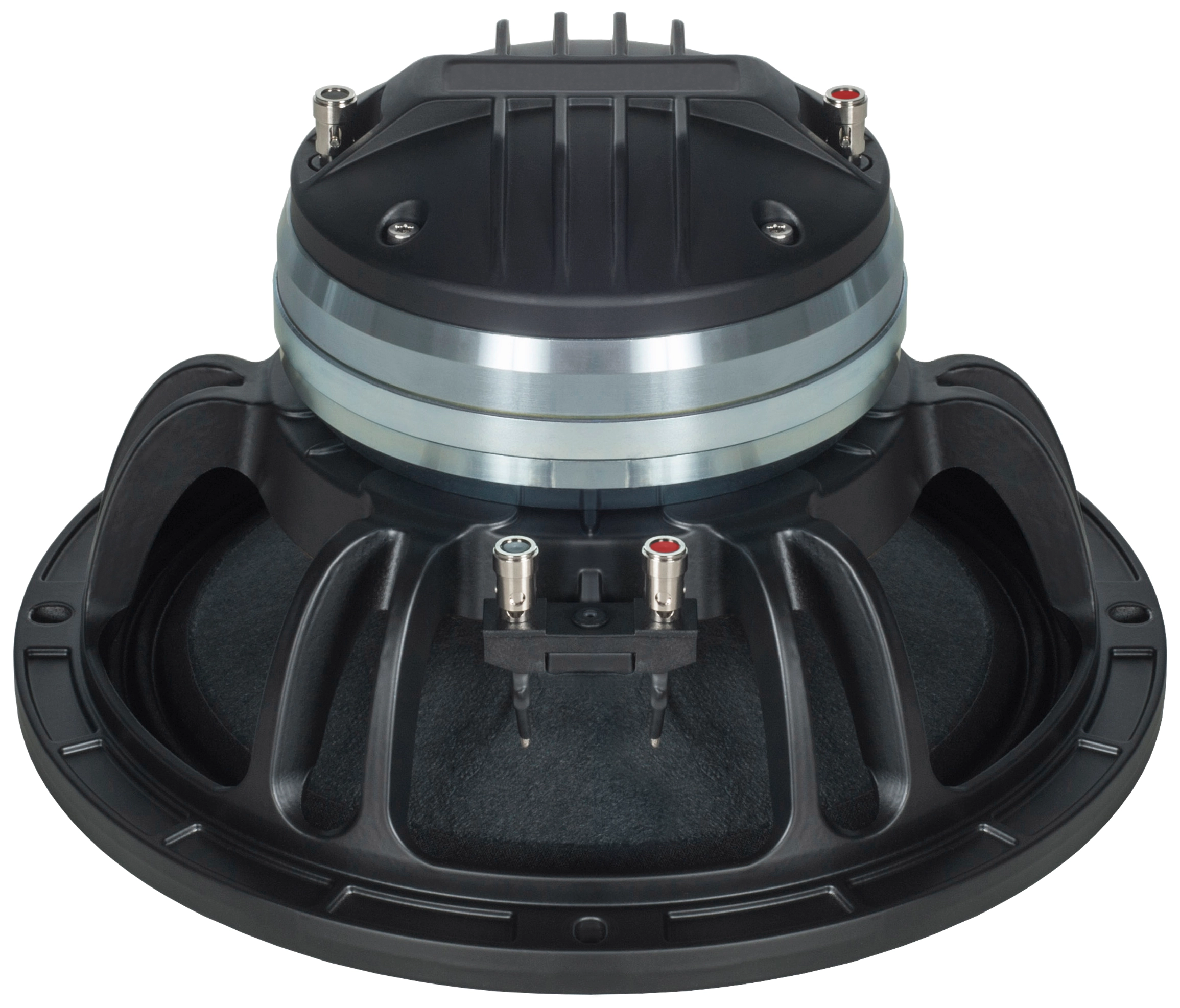

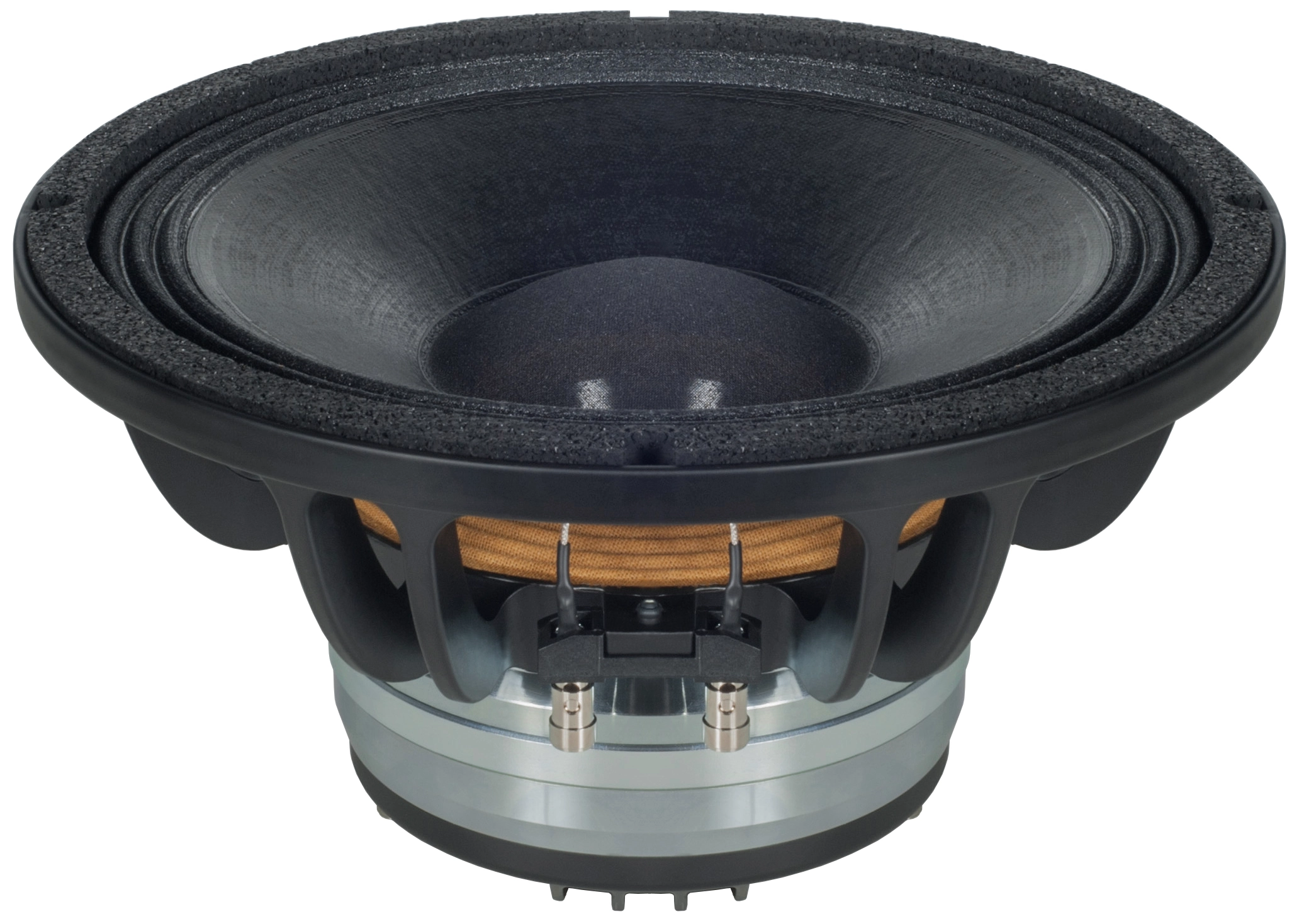

B&C Speaker 10CXN76
8Ω
Coaxial
| Nominal diameter | 10″ / 250 mm |
| Resonance | 58 Hz |
| Q factor | 0.30 |
| Sensitivity | 92.4 dB |
| Linear excursion | ± 6 mm |
| Program Power | 600 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.4dB

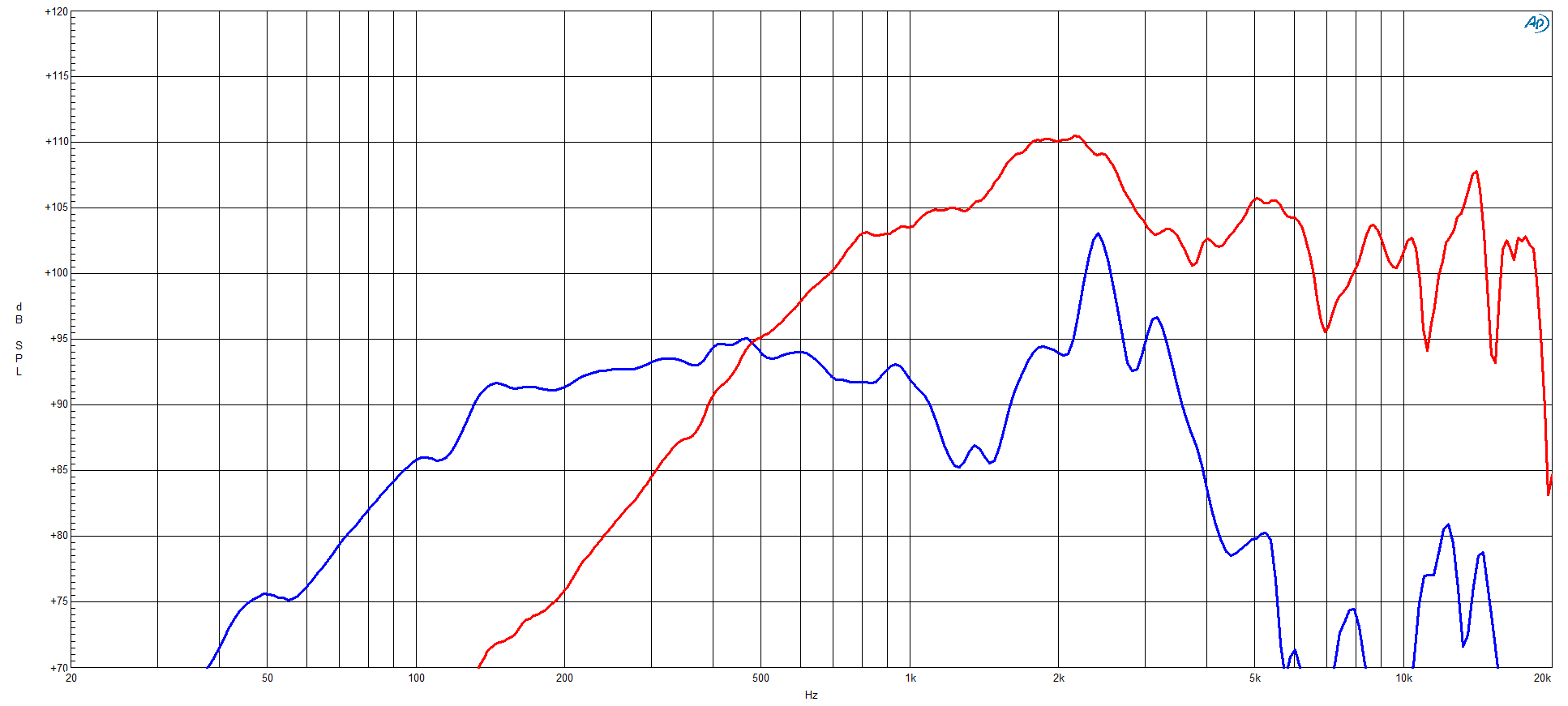

- Frequency response 60 - 18000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 58Hz
- Mechanical quality factor QMS 8.20
- Electrical quality factor QES 0.31
- Total quality factor QTS 0.30
Large signal parameters
- Maximum linear excursion (one way) xmax 6mm
- Air volume displaced at xmax VD 192cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 0.7mH
- VC Diameter 76mm
- Winding height HVC 16mm
- Winding material Copper
- Former material Kraft Paper
Magnet
- Flux density B 1.15T
- Force factor Bl 18.9N/A
- Motor constant Bl/√RE 8.29N/√W
- Air gap height HAG 8mm
- Material Neodymium Ring
Diaphragm
- Effective diameter 202mm
- Effective area SD 320cm²
- Moving mass MMS 58g
- Moving mass (without air load) MMD 53.7g
- Material Waterproof Front Side
Suspensions
- Stiffness KMS 7.75N/mm
- Compliance CMS 129µm/N
- Equivalent volume to the compliance VAS 19L
- Mechanical resistance RMS 2.58N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 261mm
- Baffle cutout diameter 230mm
- Overall depth 148mm
- Flange thickness 13mm
- Mounting depth 135mm
- Volume occupied by the driver (estimated) 2.1L
- Net weight 4.8kg
.png)
.png)
.png)
.png)
