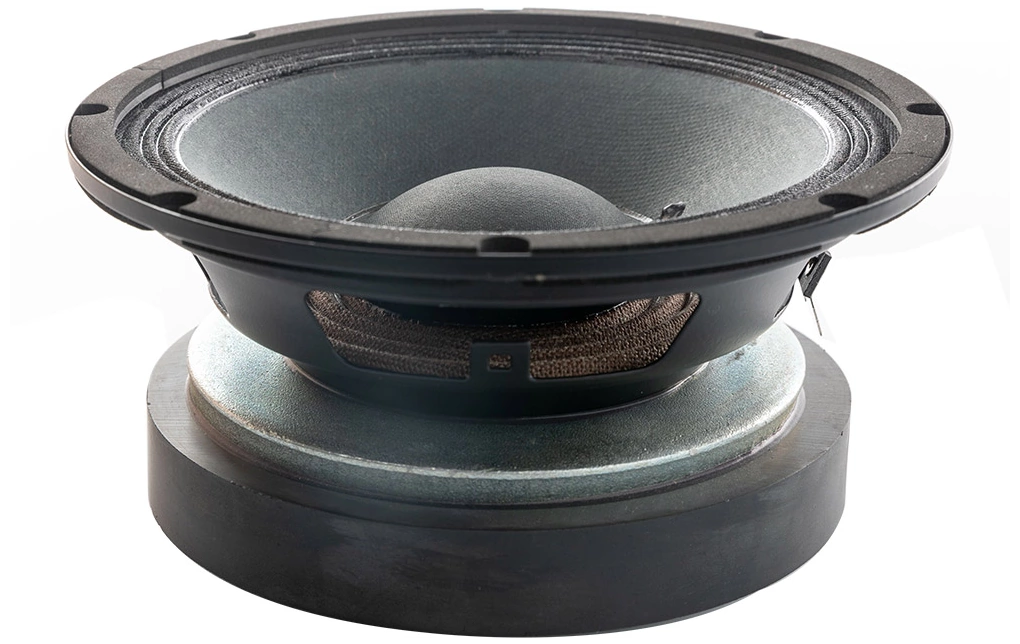

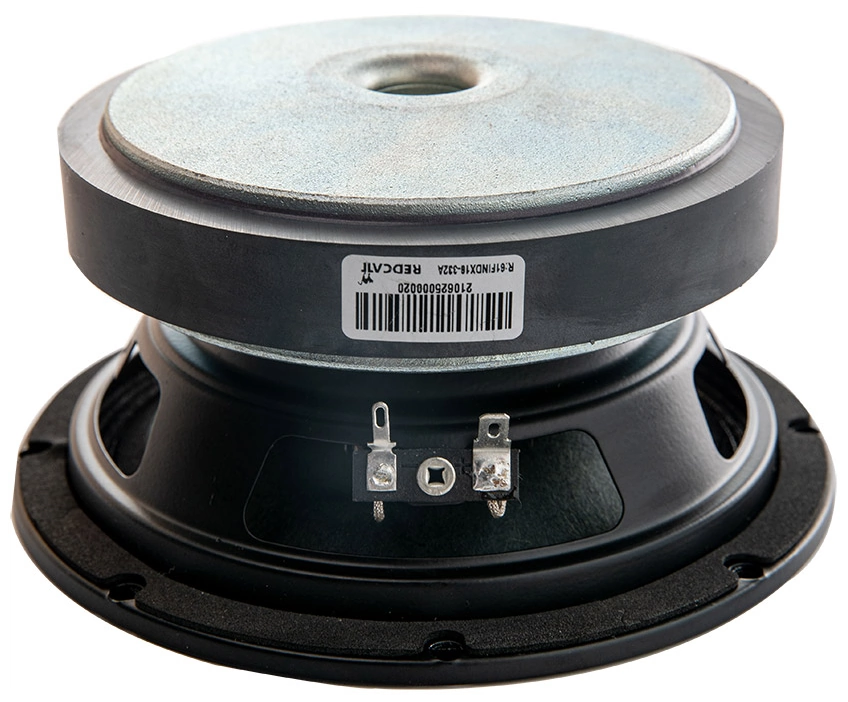

REDCATT 61FIND
16Ω
Mid Bass
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 130 Hz |
| Q factor | 0.62 |
| Sensitivity | 90.8 dB |
| Linear excursion | ± 3.6 mm |
| Program Power | 300 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 90.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 130Hz
- Mechanical quality factor QMS 5.13
- Electrical quality factor QES 0.71
- Total quality factor QTS 0.62
Large signal parameters
- Maximum linear excursion (one way) xmax 3.6mm
- Air volume displaced at xmax VD 48cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 14.9Ω
- Inductance (1kHz) LE 0.92mH
- VC Diameter 50.8mm
- Winding height HVC 12.6mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 15.6N/A
- Motor constant Bl/√RE 4.05N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 130mm
- Effective area SD 133cm²
- Moving mass MMS 14.3g
- Moving mass (without air load) MMD 13.2g
- Material Paper
Suspensions
- Stiffness KMS 9.52N/mm
- Compliance CMS 105µm/N
- Equivalent volume to the compliance VAS 2.64L
- Mechanical resistance RMS 2.28N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 165mm
- Baffle cutout diameter 145mm
- Mounting depth 78mm
- Volume occupied by the driver (estimated) 1.1L
- Net weight 2.7kg
