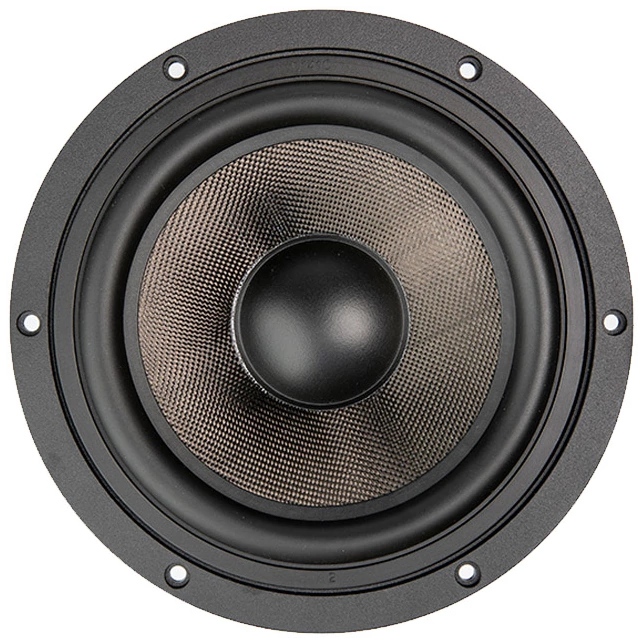

REDCATT 6FHM
8Ω
Mid Bass
| Nominal diameter | 6″ / 182 mm |
| Resonance | 36 Hz |
| Q factor | 0.29 |
| Sensitivity | 88.2 dB |
| Linear excursion | ± 4.4 mm |
| Program Power | 80 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.2dB
Thiele & Small parameters
- Resonance frequency (free air) fS 36Hz
- Mechanical quality factor QMS 12.70
- Electrical quality factor QES 0.29
- Total quality factor QTS 0.29
Large signal parameters
- Maximum linear excursion (one way) xmax 4.4mm
- Air volume displaced at xmax VD 58cm³
- Power handling P 40W
- Program power Pmax 80W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.9Ω
- Inductance (1kHz) LE 0.26mH
- VC Diameter 33mm
- Winding height HVC 14.5mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 9.89N/A
- Motor constant Bl/√RE 3.77N/√W
- Air gap height HAG 6mm
- Material Ferrite
Diaphragm
- Effective diameter 130mm
- Effective area SD 133cm²
- Moving mass MMS 18.1g
- Moving mass (without air load) MMD 16.9g
- Material CF Honeycomb
Suspensions
- Stiffness KMS 0.93N/mm
- Compliance CMS 1075µm/N
- Equivalent volume to the compliance VAS 26.1L
- Mechanical resistance RMS 0.32N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 6″
- 182mm
- Overall diameter 182mm
- Baffle cutout diameter 151mm
- Mounting depth 82mm
- Volume occupied by the driver (estimated) 1L
- Net weight 2.4kg
