REDCATT 61XR
4Ω
Mid Bass
| Nominal diameter | 6″ / 182 mm |
| Resonance | 64 Hz |
| Q factor | 0.72 |
| Sensitivity | 86.1 dB |
| Linear excursion | ± 9.8 mm |
| Program Power | 200 W |

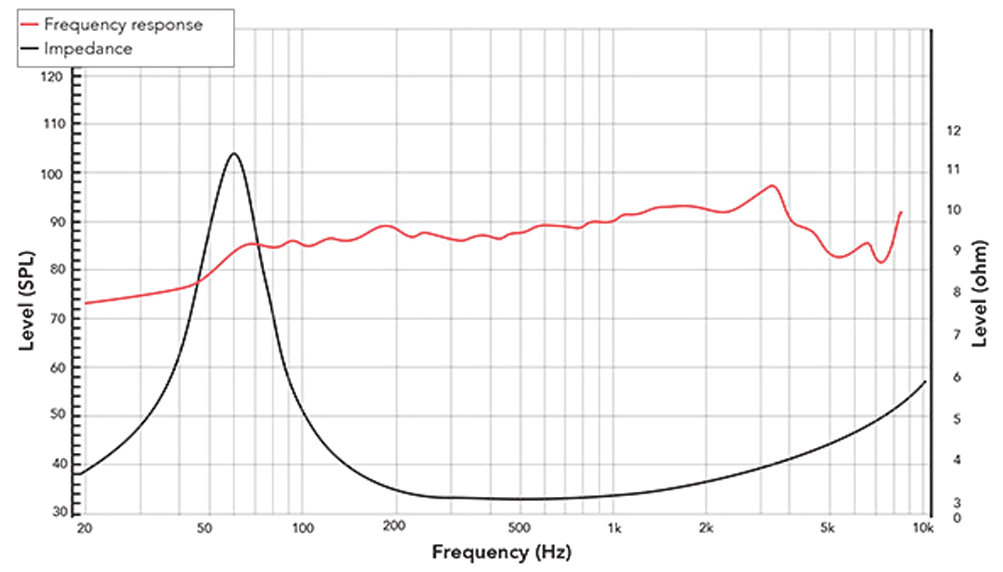

.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 64Hz
- Mechanical quality factor QMS 2.88
- Electrical quality factor QES 0.96
- Total quality factor QTS 0.72
Large signal parameters
- Maximum linear excursion (one way) xmax 9.8mm
- Air volume displaced at xmax VD 130cm³
- Power handling P 100W
- Program power Pmax 200W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.1Ω
- Inductance (1kHz) LE 0.06mH
- VC Diameter 44.4mm
- Winding height HVC 10.3mm
- Winding material Copper
- Former material kapton
Magnet
- Force factor Bl 4.77N/A
- Motor constant Bl/√RE 2.71N/√W
- Air gap height HAG 26.5mm
- Material Neodymium
Diaphragm
- Effective diameter 130mm
- Effective area SD 133cm²
- Moving mass MMS 17.3g
- Moving mass (without air load) MMD 16.1g
- Material Paper
Suspensions
- Stiffness KMS 2.83N/mm
- Compliance CMS 353µm/N
- Equivalent volume to the compliance VAS 8.6L
- Mechanical resistance RMS 2.42N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 6″
- 182mm
- Overall diameter 182mm
- Baffle cutout diameter 151mm
- Mounting depth 94mm
- Volume occupied by the driver (estimated) 0.61L
- Net weight 1.5kg
