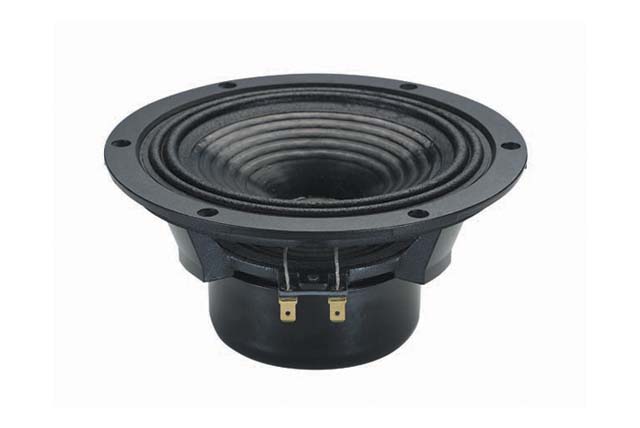

Ciare HX160
8Ω
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 70.2 Hz |
| Q factor | 0.42 |
| Sensitivity | 93.3 dB |
| Linear excursion | ± 1.8 mm |
| Program Power | 90 W |
Discontinued
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 70.2Hz
- Mechanical quality factor QMS 5.14
- Electrical quality factor QES 0.45
- Total quality factor QTS 0.42
Large signal parameters
- Maximum linear excursion xmax 1.8mm
- Air volume displaced at xmax VD 24cm³
- Power handling P 40W
- Program power Pmax 90W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.17mH
- VC Diameter 25mm
- Former material Kapton
Magnet
- Force factor Bl 6.56N/A
- Motor constant Bl/√RE 2.83N/√W
- Air gap height HAG 4mm
- Material Neodymium
Diaphragm
- Effective diameter 131mm
- Effective area SD 135cm²
- Moving mass MMS 8.25g
- Moving mass (without air load) MMD 7g
Suspensions
- Stiffness KMS 1.61N/mm
- Compliance CMS 620µm/N
- Equivalent volume to the compliance VAS 16L
- Mechanical resistance RMS 0.71N·s/m
- Surround material Fabric

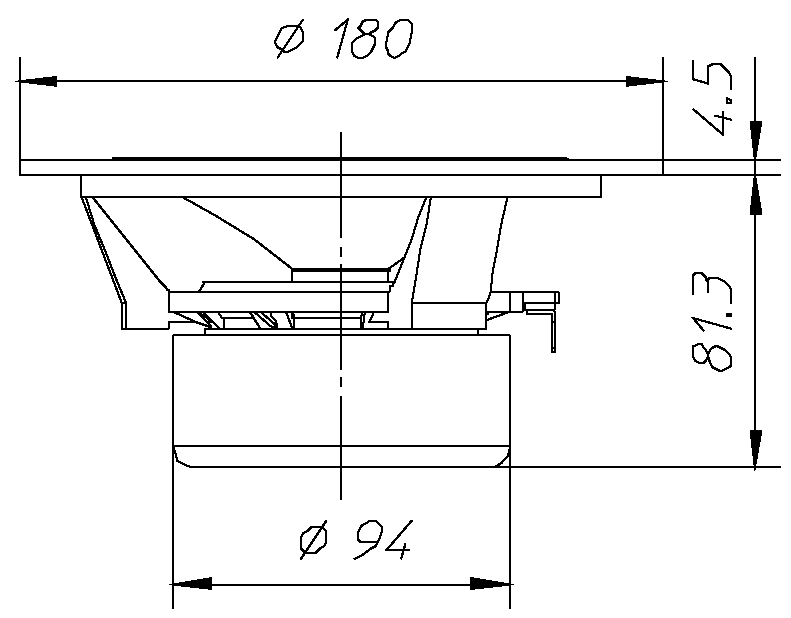

Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 180mm
- Baffle cutout diameter 145mm
- Overall depth 81mm
- Flange thickness 5mm
- Mounting depth 76mm
- Volume occupied by the driver (estimated) 0.54L
- Frame material Aluminium
.png)
.png)
