Ciare CXI160 Coaxial

Ciare CXI160

4 Ω
6.5″ Coaxial
fS91 Hz
SD120 cm²
90 - 20000 Hz
QTS0.51
xmax4.5 mm
SPL1W89.6 dB
Bl/√RE4.06
Pmax250 W
Ciare CXI200 Coaxial

Ciare CXI200

4 Ω
8″ Coaxial
fS88 Hz
SD214 cm²
80 - 20000 Hz
QTS0.35
xmax4.5 mm
SPL1W94.3 dB
Bl/√RE5.56
Pmax250 W
Ciare PWA8.50 Woofer

Ciare PWA8.50

8 Ω
8″ Woofer
fS74 Hz
SD227 cm²
70 - 2500 Hz
QTS0.38
xmax6.8 mm
SPL1W92.3 dB
Bl/√RE5.68
Pmax500 W
Ciare PWA6.38 Woofer

Ciare PWA6.38

8 Ω
6.5″ Woofer
fS77 Hz
SD133 cm²
80 - 7000 Hz
QTS0.56
xmax4 mm
SPL1W88.6 dB
Bl/√RE3.93
Pmax300 W
Ciare PWA5.38 Woofer

Ciare PWA5.38

8 Ω
5″ Woofer
fS78 Hz
SD95 cm²
70 - 6000 Hz
QTS0.37
xmax3.9 mm
SPL1W88.7 dB
Bl/√RE3.76
Pmax250 W
Ciare PWA15.75 Woofer

Ciare PWA15.75

8 Ω
15″ Woofer
fS44 Hz
SD881 cm²
40 - 3000 Hz
QTS0.39
xmax7 mm
SPL1W95.8 dB
Bl/√RE8.38
Pmax1000 W
Ciare PWA12.75 Woofer

Ciare PWA12.75

8 Ω
12″ Woofer
fS53 Hz
SD531 cm²
50 - 3000 Hz
QTS0.30
xmax5.8 mm
SPL1W94.9 dB
Bl/√RE8.43
Pmax900 W
Ciare PWA12.64 Woofer

Ciare PWA12.64

4 Ω
12″ Woofer
fS56 Hz
SD531 cm²
50 - 3000 Hz
QTS0.30
xmax4.3 mm
SPL1W96.3 dB
Bl/√RE8.04
Pmax600 W
Ciare PWA12.64 Woofer

Ciare PWA12.64

8 Ω
12″ Woofer
fS55 Hz
SD531 cm²
QTS0.35
xmax4.5 mm
SPL1W95.6 dB
Bl/√RE7.37
Pmax600 W
Ciare PWA10.64 Woofer

Ciare PWA10.64

8 Ω
10″ Woofer
fS73 Hz
SD346 cm²
60 - 4000 Hz
QTS0.38
xmax4.5 mm
SPL1W95.1 dB
Bl/√RE6.31
Pmax600 W
Ciare PWA10.50 Woofer

Ciare PWA10.50

8 Ω
10″ Woofer
fS57 Hz
SD346 cm²
50 - 2000 Hz
QTS0.40
xmax5.8 mm
SPL1W93.7 dB
Bl/√RE5.1
Pmax500 W
Ciare PW455 Woofer

Ciare PW455

4 Ω
18″ Woofer
fS35 Hz
SD1158 cm²
35 - 1200 Hz
QTS0.24
xmax8.5 mm
SPL1W97.3 dB
Bl/√RE12.3
Pmax1800 W
Ciare HSB322 Subwoofer

Ciare HSB322

2 x 4 Ω
12″ Subwoofer
fS36 Hz
SD511 cm²
QTS0.37
xmax7.5 mm
SPL1W90.9 dB
Bl/√RE6.88
Pmax800 W
Ciare HSB322 Subwoofer

Ciare HSB322

2 x 2 Ω
12″ Subwoofer
fS35 Hz
SD511 cm²
QTS0.42
xmax7.5 mm
SPL1W90.5 dB
Bl/√RE6.93
Pmax800 W
Ciare CMR200 Mid Bass

Ciare CMR200

4 Ω
8″ Mid Bass
fS94 Hz
SD216 cm²
QTS0.46
xmax3.8 mm
SPL1W93.5 dB
Bl/√RE4.63
Pmax250 W
Ciare CMR160 Mid Bass

Ciare CMR160

4 Ω
6.5″ Mid Bass
fS66 Hz
SD135 cm²
QTS0.32
xmax1.5 mm
SPL1W94.8 dB
Bl/√RE3.49
Pmax200 W
Ciare CMI320ND Woofer

Ciare CMI320ND

4 Ω
12″ Woofer
fS53 Hz
SD547 cm²
QTS0.43
xmax5 mm
SPL1W94.9 dB
Bl/√RE6.33
Pmax450 W
Discontinued

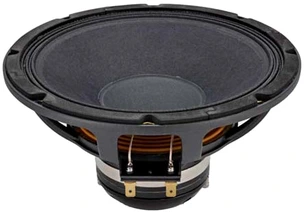

Ciare PX335ND Subwoofer

Ciare PX335ND

8 Ω
12″ Subwoofer
fS60 Hz
SD551 cm²
QTS0.37
xmax6 mm
SPL1W97.2 dB
Bl/√RE7.05
Pmax700 W
Ciare PW455 Woofer

Ciare PW455

8 Ω
18″ Woofer
fS36 Hz
SD1158 cm²
35 - 1200 Hz
QTS0.24
xmax7.5 mm
SPL1W98.2 dB
Bl/√RE11.2
Pmax1800 W
Ciare PW396 Woofer

Ciare PW396

8 Ω
15″ Woofer
fS43 Hz
SD850 cm²
35 - 2000 Hz
QTS0.41
xmax6.5 mm
SPL1W95.2 dB
Bl/√RE8.37
Pmax800 W
Discontinued

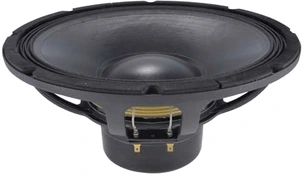

Ciare PW395ND Woofer

Ciare PW395ND

8 Ω
15″ Woofer
fS45 Hz
SD835 cm²
QTS0.47
xmax9.5 mm
SPL1W93.4 dB
Bl/√RE9.33
Pmax2000 W
Discontinued

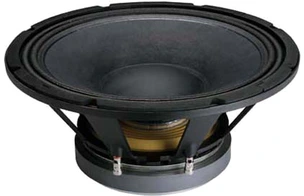

Ciare PW390 Woofer

Ciare PW390

8 Ω
15″ Woofer
fS37 Hz
SD849 cm²
QTS0.29
xmax3.8 mm
SPL1W97.6 dB
Bl/√RE8.09
Pmax1000 W
Discontinued

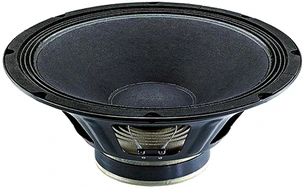

Ciare PW388 Woofer

Ciare PW388

8 Ω
15″ Woofer
fS35 Hz
SD851 cm²
QTS0.38
xmax2 mm
SPL1W96.6 dB
Bl/√RE6.52
Pmax500 W
Discontinued

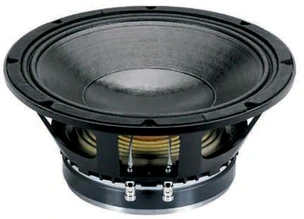

Ciare PW337 Woofer

Ciare PW337

8 Ω
12″ Woofer
fS47.8 Hz
SD526 cm²
QTS0.32
xmax4 mm
SPL1W93.7 dB
Bl/√RE8.49
Pmax800 W
Discontinued

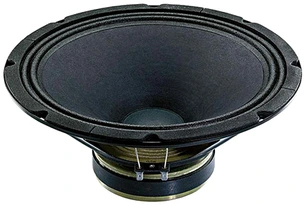

Ciare PW328 Woofer

Ciare PW328

8 Ω
12″ Woofer
fS48 Hz
SD528 cm²
QTS0.32
xmax3 mm
SPL1W95.5 dB
Bl/√RE6.39
Pmax300 W
Discontinued

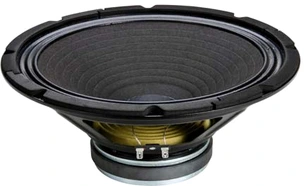

Ciare PW321 Guitar Speaker

Ciare PW321

8 Ω
12″ Guitar Speaker
fS52 Hz
SD509 cm²
45 - 5000 Hz
QTS0.39
xmax3.5 mm
SPL1W99.6 dB
Bl/√RE4.61
Pmax200 W
Discontinued

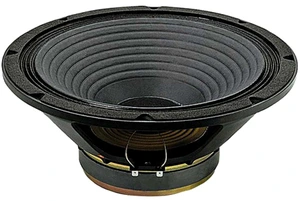

Ciare PW320 Guitar Speaker

Ciare PW320

8 Ω
12″ Guitar Speaker
fS40 Hz
SD508 cm²
40 - 4000 Hz
QTS0.26
xmax1.3 mm
SPL1W95.6 dB
Bl/√RE6.79
Pmax400 W
Discontinued

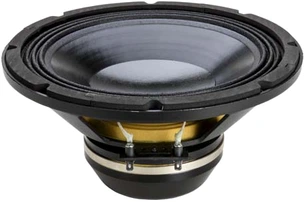

Ciare PW258ND Woofer

Ciare PW258ND

8 Ω
10″ Woofer
fS63 Hz
SD347 cm²
60 - 5000 Hz
QTS0.36
xmax8 mm
SPL1W95.8 dB
Bl/√RE6.66
Pmax600 W
Ciare PW257 Woofer

Ciare PW257

8 Ω
10″ Woofer
fS57 Hz
SD353 cm²
QTS0.30
xmax5.5 mm
SPL1W93.6 dB
Bl/√RE6.95
Pmax800 W
Discontinued

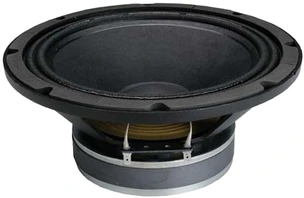

Ciare PW256 Woofer

Ciare PW256

8 Ω
10″ Woofer
fS69 Hz
SD353 cm²
QTS0.25
xmax2.5 mm
SPL1W97.2 dB
Bl/√RE7.32
Pmax500 W
Ciare PW252 Woofer

Ciare PW252

8 Ω
10″ Woofer
fS55 Hz
SD346 cm²
QTS0.26
xmax7 mm
SPL1W95 dB
Bl/√RE6.22
Pmax400 W
Discontinued
Ciare PW251 Woofer

Ciare PW251

8 Ω
10″ Woofer
fS56 Hz
SD362 cm²
QTS0.32
xmax1.4 mm
SPL1W94.8 dB
Bl/√RE5.43
Pmax300 W
Discontinued

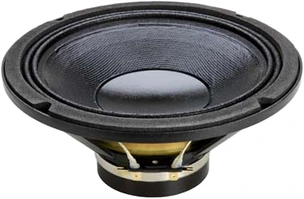

Ciare PW205ND Woofer

Ciare PW205ND

8 Ω
8″ Woofer
fS75 Hz
SD227 cm²
QTS0.34
xmax6.3 mm
SPL1W94.9 dB
Bl/√RE4.93
Pmax400 W
Discontinued

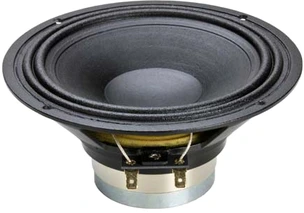

Ciare PW160ND Woofer

Ciare PW160ND

8 Ω
6.5″ Woofer
fS80 Hz
SD134 cm²
QTS0.28
xmax7.5 mm
SPL1W94.1 dB
Bl/√RE4.46
Pmax300 W
Ciare PM203 Mid Bass

Ciare PM203

8 Ω
8″ Mid Bass
fS91 Hz
SD214 cm²
QTS0.54
xmax4.4 mm
SPL1W92.1 dB
Bl/√RE4.26
Pmax300 W
Ciare PM200N Mid Bass

Ciare PM200N

8 Ω
8″ Mid Bass
fS99 Hz
SD216 cm²
QTS0.50
xmax3.5 mm
SPL1W93.1 dB
Bl/√RE4.56
Pmax250 W
Ciare PM160 Mid Bass

Ciare PM160

8 Ω
6.5″ Mid Bass
fS66 Hz
SD135 cm²
QTS0.31
xmax1.8 mm
SPL1W94.3 dB
Bl/√RE3.29
Pmax200 W
Discontinued

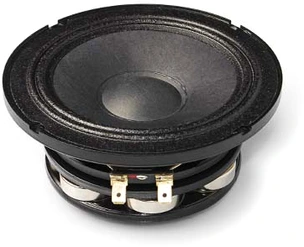

Ciare PM135ND Full-range

Ciare PM135ND

8 Ω
5″ Full-range
fS105 Hz
SD81.3 cm²
QTS0.28
xmax4 mm
SPL1W93.7 dB
Bl/√RE3.73
Pmax160 W
Discontinued
Ciare PM132 Mid-range

Ciare PM132

8 Ω
5″ Mid-range
fS99 Hz
SD81.6 cm²
QTS0.54
xmax0.5 mm
SPL1W89 dB
Bl/√RE2.41
Pmax200 W
Discontinued

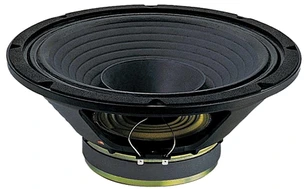

Ciare PH320 Guitar Speaker

Ciare PH320

8 Ω
12″ Guitar Speaker
fS65 Hz
SD507 cm²
45 - 12000 Hz
QTS0.38
xmax1.3 mm
SPL1W98.7 dB
Bl/√RE5.72
Pmax220 W
