Ciare PW388
8Ω
Woofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 35 Hz |
| Q factor | 0.38 |
| Sensitivity | 96.6 dB |
| Linear excursion | ± 2 mm |
| Program Power | 500 W |
Discontinued
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 96.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 17.15
- Electrical quality factor QES 0.39
- Total quality factor QTS 0.38
Large signal parameters
- Maximum linear excursion xmax 2mm
- Air volume displaced at xmax VD 170cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.2Ω
- Inductance (1kHz) LE 0.91mH
- VC Diameter 64mm
- Former material Kapton
Magnet
- Force factor Bl 16.2N/A
- Motor constant Bl/√RE 6.52N/√W
- Air gap height HAG 7mm
- Material Ferrite
Diaphragm
- Effective diameter 330mm
- Effective area SD 851cm²
- Moving mass MMS 74.7g
- Moving mass (without air load) MMD 57.6g
Suspensions
- Stiffness KMS 3.7N/mm
- Compliance CMS 270µm/N
- Equivalent volume to the compliance VAS 277L
- Mechanical resistance RMS 0.96N·s/m
- Surround material Nomex

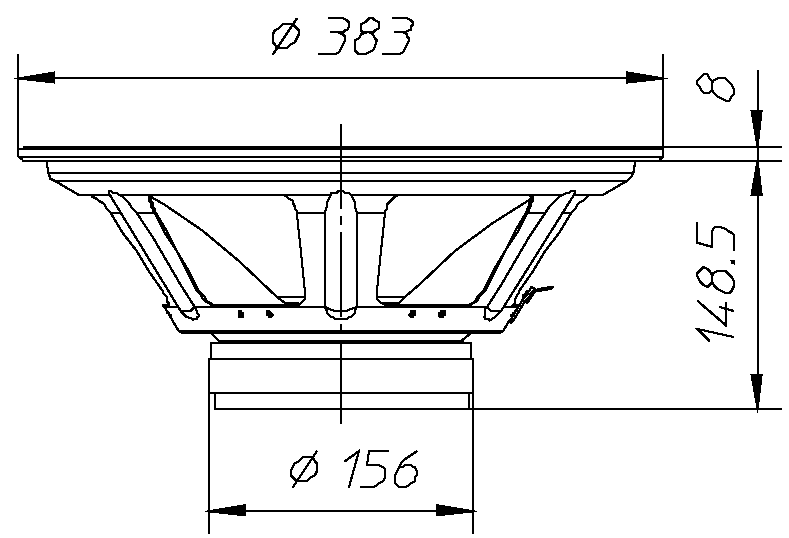

Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 383mm
- Baffle cutout diameter 350mm
- Overall depth 149mm
- Flange thickness 8mm
- Mounting depth 141mm
- Volume occupied by the driver (estimated) 3.4L
- Frame material Steel
.png)
.png)
