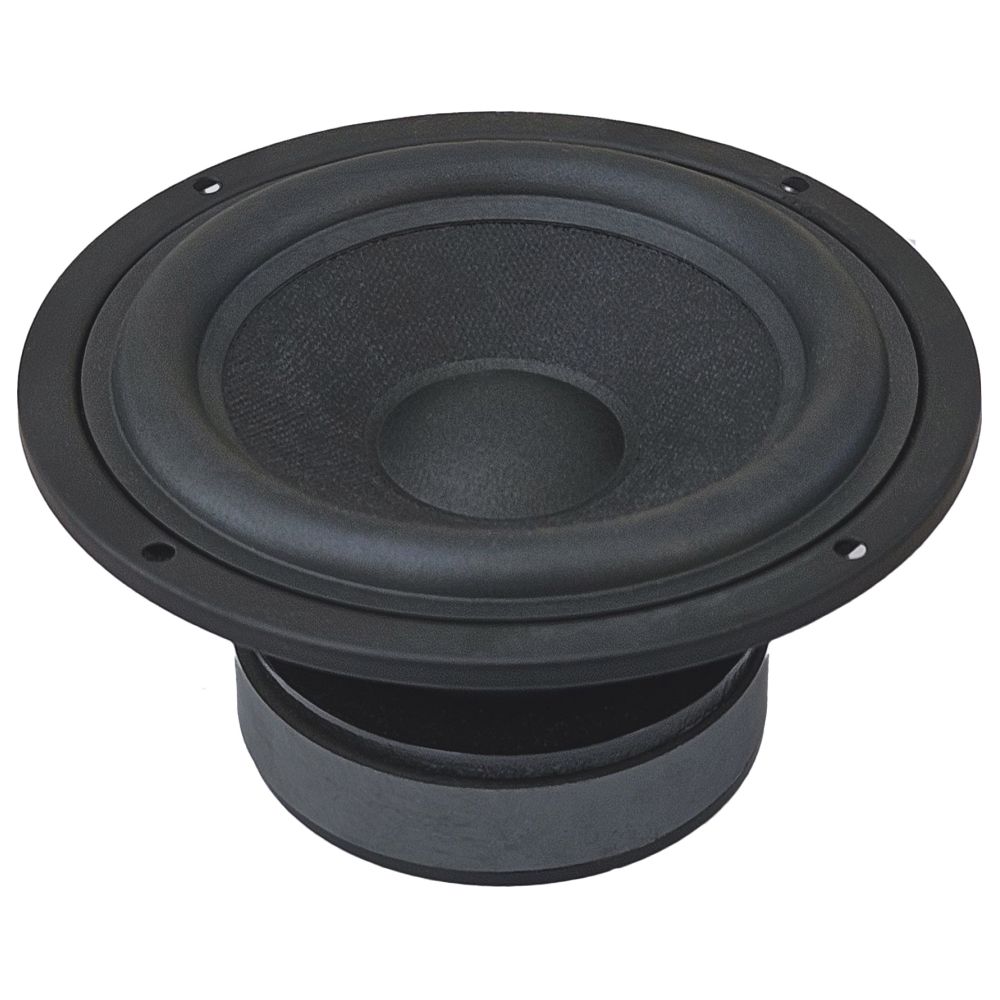

Ciare HWL130
8Ω
Woofer
| Nominal diameter | 5″ / 130 mm |
| Resonance | 53 Hz |
| Q factor | 0.43 |
| Sensitivity | 87.5 dB |
| Linear excursion | ± 4 mm |
| Program Power | 150 W |
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.5dB

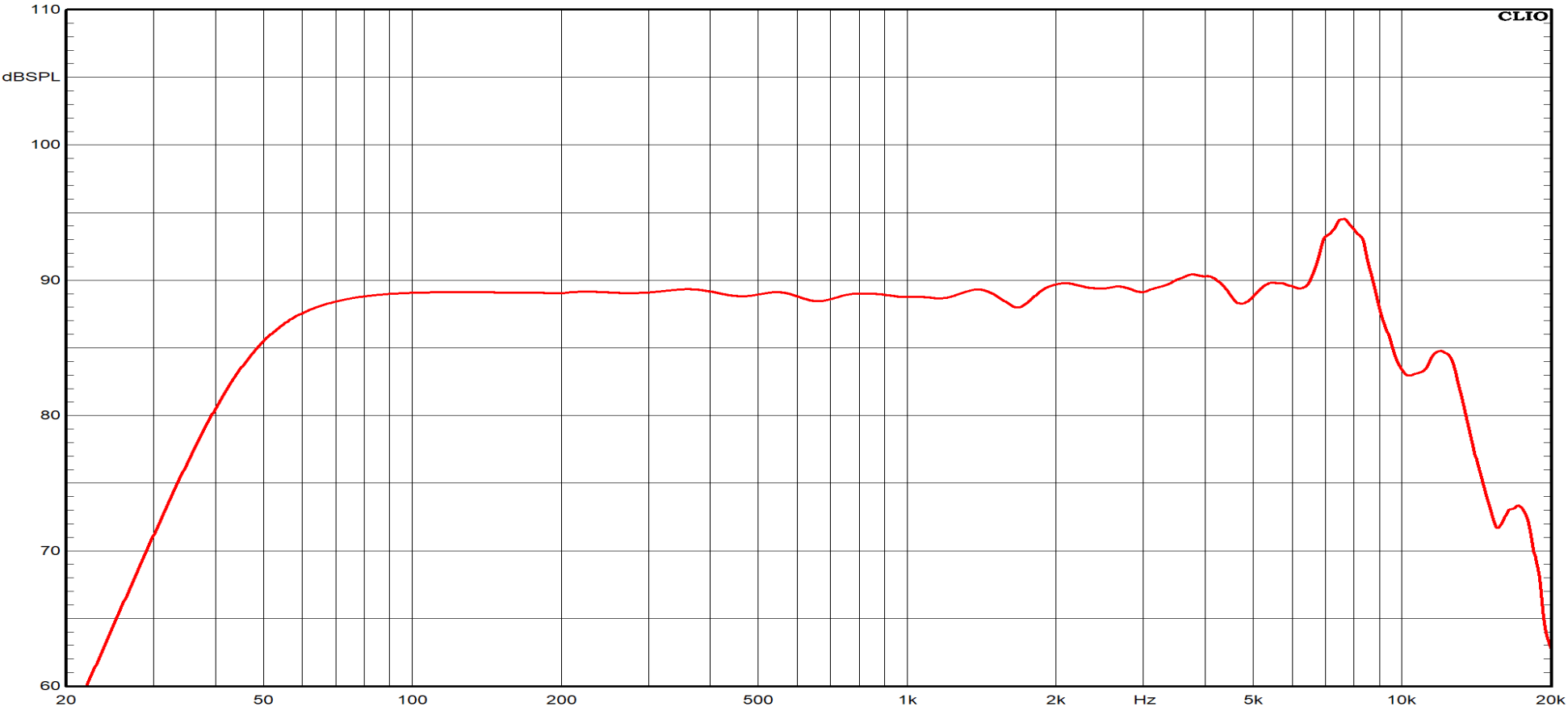

- Frequency response 45 - 10000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 53Hz
- Mechanical quality factor QMS 6.78
- Electrical quality factor QES 0.46
- Total quality factor QTS 0.43
Large signal parameters
- Maximum linear excursion (one way) xmax 4mm
- Air volume displaced at xmax VD 35cm³
- Power handling P 50W
- Program power Pmax 150W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.7Ω
- Inductance (1kHz) LE 0.5mH
- VC Diameter 25mm
- Winding height HVC 11mm
- Former material Kapton
Magnet
- Force factor Bl 5.8N/A
- Motor constant Bl/√RE 2.43N/√W
- Air gap height HAG 6mm
- Material Ceramic + NEO
Diaphragm
- Effective diameter 105mm
- Effective area SD 87cm²
- Moving mass MMS 8.1g
- Moving mass (without air load) MMD 7.5g
- Material Doped cellulose fiber
Suspensions
- Stiffness KMS 0.909N/mm
- Compliance CMS 1100µm/N
- Equivalent volume to the compliance VAS 11.2L
- Mechanical resistance RMS 0.4N·s/m
- Surround material Rubber
- Spider material Doped fabric
Dimensions
- Nominal diameter 5″
- 130mm
- Overall diameter 145mm
- Baffle cutout diameter 115mm
- Overall depth 71mm
- Flange thickness 5mm
- Mounting depth 66mm
- Volume occupied by the driver (estimated) 0.34L
- Net weight 1.06kg
- Frame material Steel
.png)
.png)
