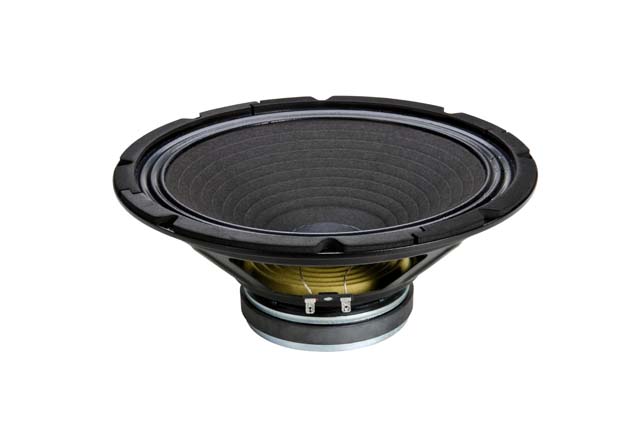

Ciare PW321
8Ω
Guitar Speaker
| Nominal diameter | 12″ / 320 mm |
| Resonance | 52 Hz |
| Q factor | 0.39 |
| Sensitivity | 99.6 dB |
| Linear excursion | ± 3.5 mm |
| Program Power | 200 W |
Discontinued
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 99.6dB

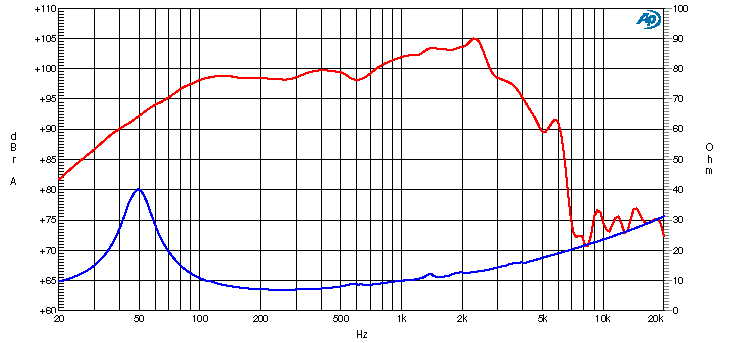

- Frequency response 45 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 52Hz
- Mechanical quality factor QMS 2.38
- Electrical quality factor QES 0.46
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion xmax 3.5mm
- Air volume displaced at xmax VD 178cm³
- Power handling P 100W
- Program power Pmax 200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.0Ω
- Inductance (1kHz) LE 0.37mH
- VC Diameter 38mm
- Former material Aluminium
Magnet
- Force factor Bl 11.3N/A
- Motor constant Bl/√RE 4.61N/√W
- Air gap height HAG 7mm
- Material Ferrite
Diaphragm
- Effective diameter 256mm
- Effective area SD 509cm²
- Moving mass MMS 27.7g
- Moving mass (without air load) MMD 19.4g
Suspensions
- Stiffness KMS 3.23N/mm
- Compliance CMS 310µm/N
- Equivalent volume to the compliance VAS 114L
- Mechanical resistance RMS 3.81N·s/m

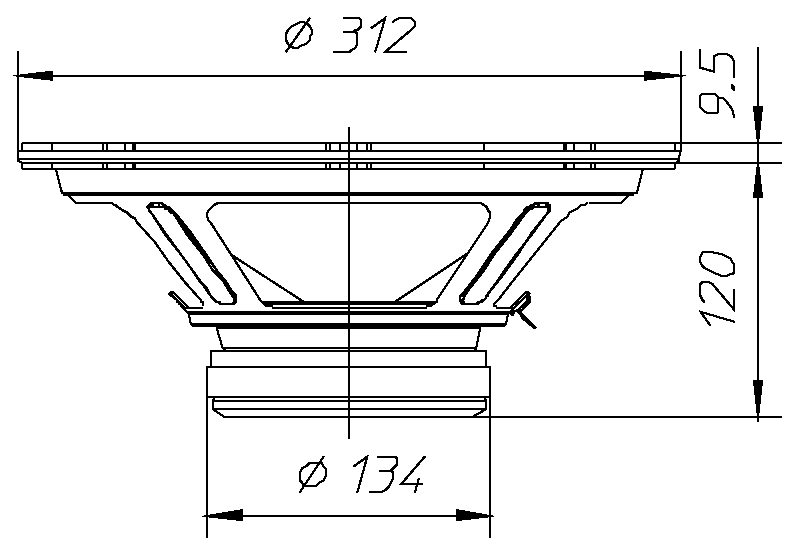

Dimensions
- Nominal diameter 12″
- 320mm
- Overall diameter 312mm
- Baffle cutout diameter 285mm
- Overall depth 120mm
- Flange thickness 10mm
- Mounting depth 110mm
- Volume occupied by the driver (estimated) 1.9L
- Frame material Steel
.png)
.png)
