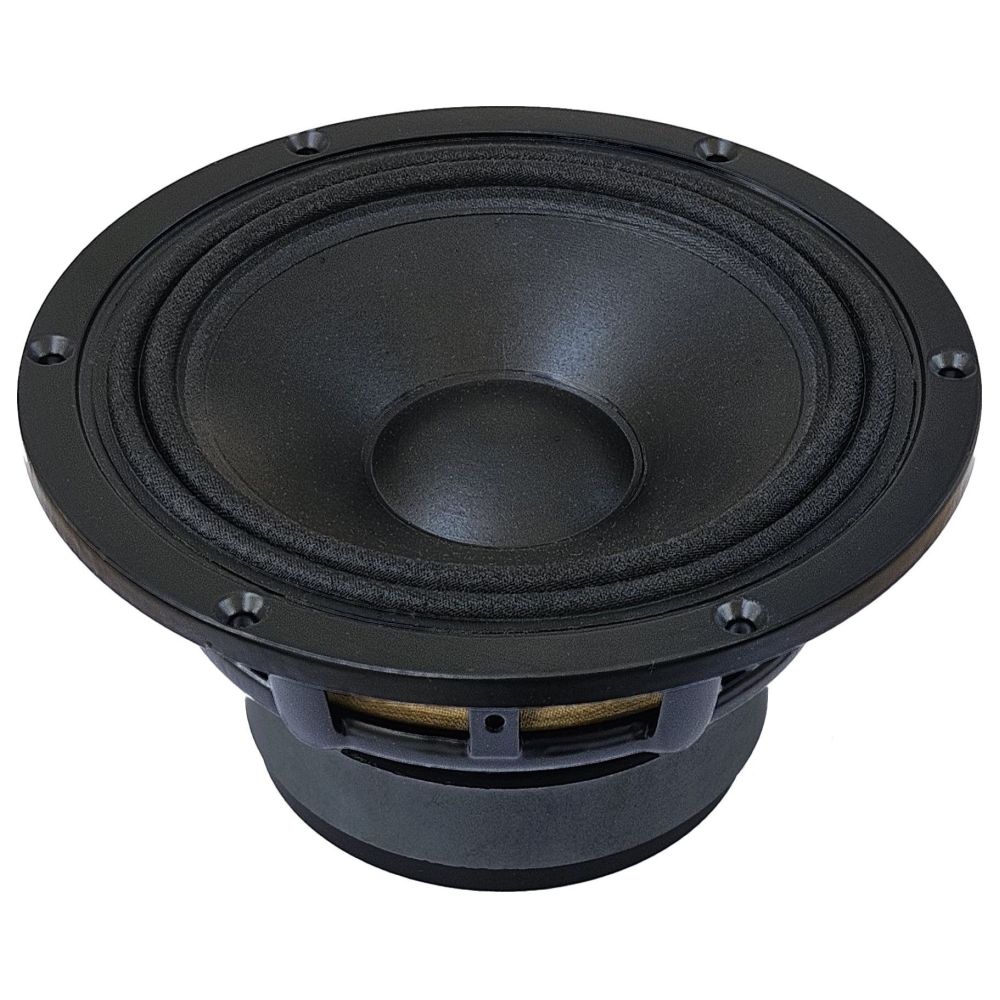

Ciare HMB165
8Ω
Mid-range
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 86 Hz |
| Q factor | 0.53 |
| Sensitivity | 91 dB |
| Linear excursion | ± 3.5 mm |
| Program Power | 180 W |
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91dB

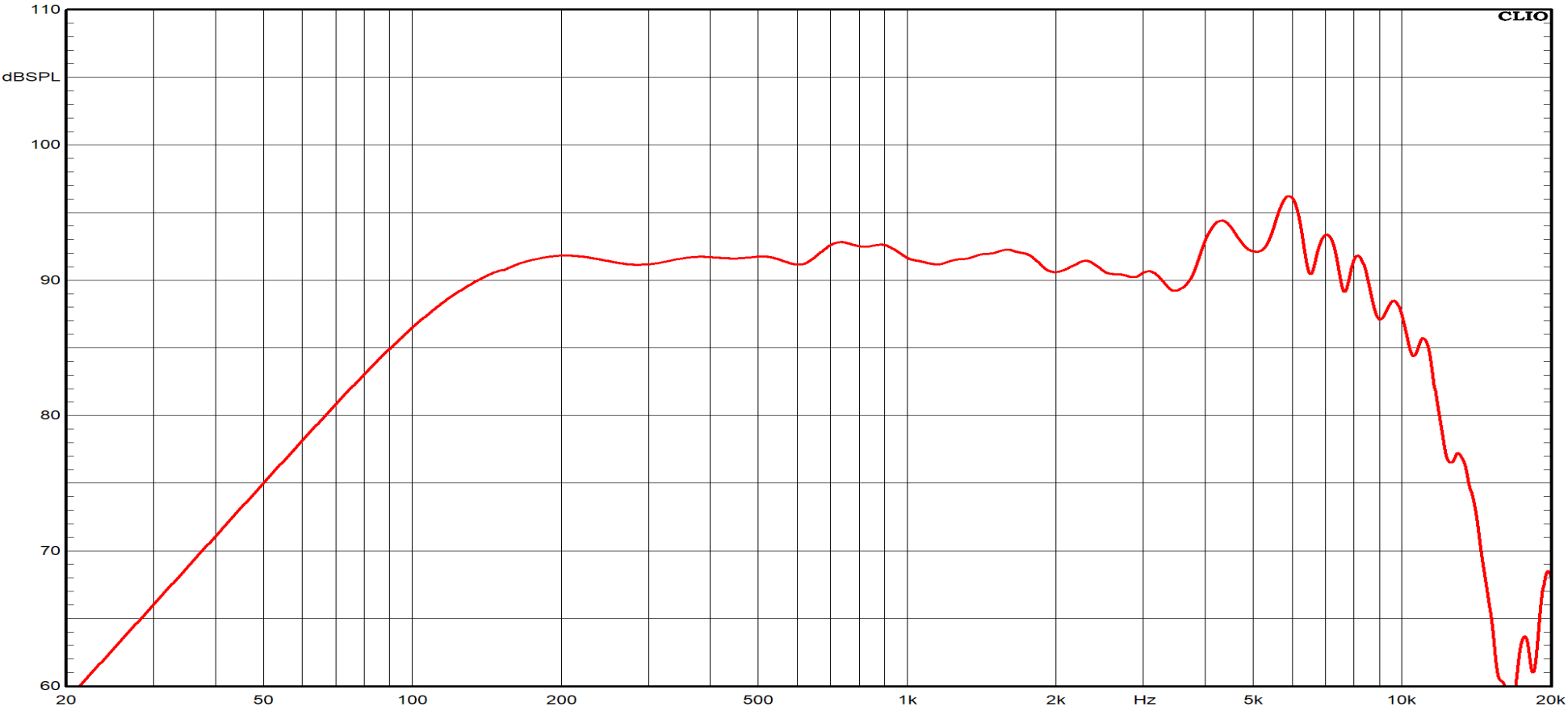

- Frequency response 90 - 6000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 86Hz
- Mechanical quality factor QMS 3.19
- Electrical quality factor QES 0.63
- Total quality factor QTS 0.53
Large signal parameters
- Maximum linear excursion (one way) xmax 3.5mm
- Air volume displaced at xmax VD 47cm³
- Power handling P 90W
- Program power Pmax 180W
Voice Coil

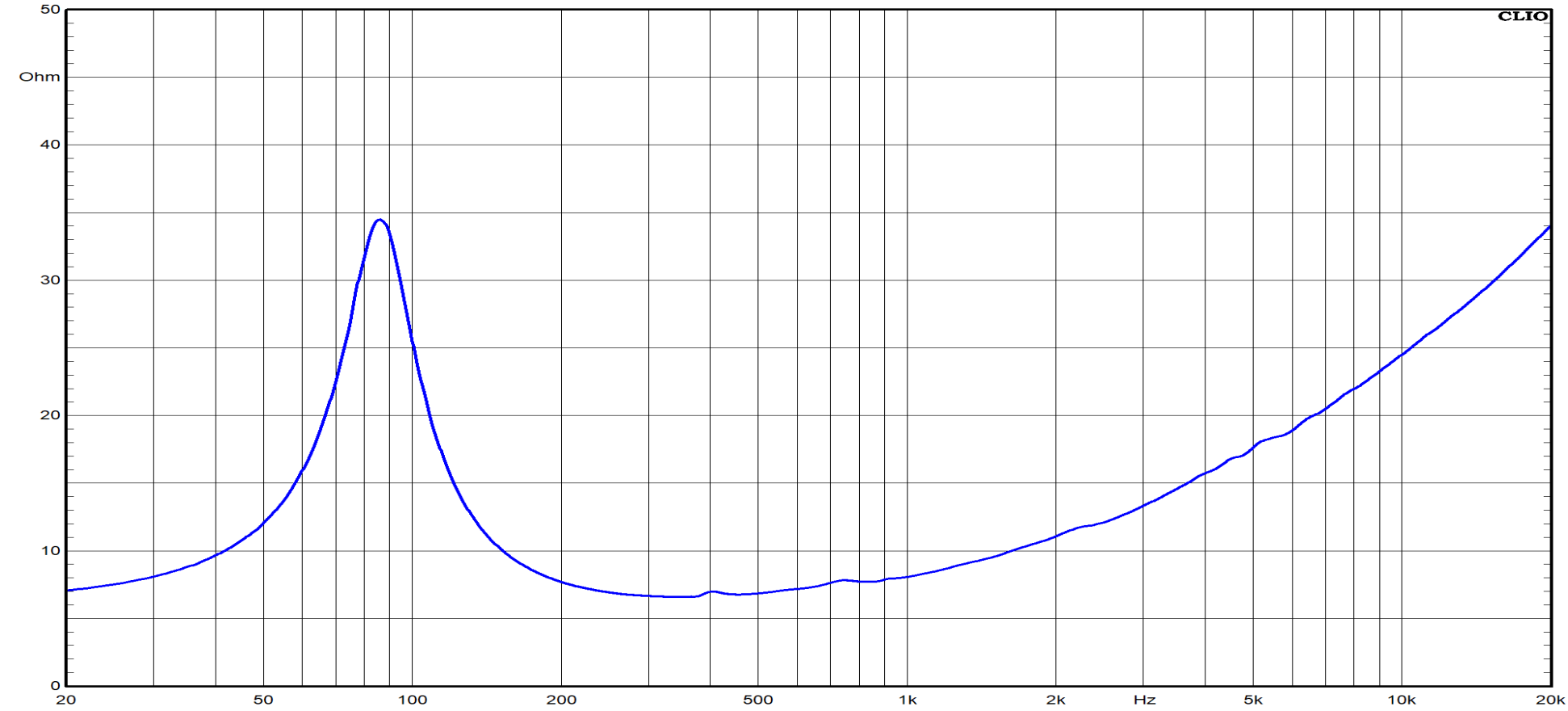

- Nominal impedance Z 8Ω
- DC resistance RE 5.7Ω
- Inductance (1kHz) LE 0.49mH
- VC Diameter 32mm
- Winding height HVC 10mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor Bl 7N/A
- Motor constant Bl/√RE 2.93N/√W
- Air gap height HAG 6mm
- Material Ferrite
Diaphragm
- Effective diameter 131mm
- Effective area SD 135cm²
- Moving mass MMS 10g
- Moving mass (without air load) MMD 8.8g
- Material Doped cellulose fiber
Suspensions
- Stiffness KMS 2.92N/mm
- Compliance CMS 342µm/N
- Equivalent volume to the compliance VAS 8.6L
- Mechanical resistance RMS 1.69N·s/m
- Surround material Double Roll
- Spider material Nomex Fabric
Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 174mm
- Baffle cutout diameter 146mm
- Overall depth 79mm
- Flange thickness 6mm
- Mounting depth 73mm
- Volume occupied by the driver (estimated) 0.55L
- Net weight 1.69kg
- Frame material Aluminium
.png)
.png)
