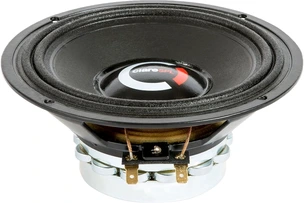

Ciare CXI160

Coaxial

6.5″ / 25 mm
Nominal diameter
91 Hz
Resonance
0.51
Q factor
90 dB
Sensitivity
± 4.5 mm
Linear excursion
250 W
Program Power
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
Sensitivity (1W, 1m, infinite baffle)
SPL1W
89.6
dB
Frequency response
90 - 20000
Hz

Thiele & Small parameters

Resonance frequency (free air)
fS
91.0
Hz
Mechanical quality factor
QMS
5.03
Electrical quality factor
QES
0.57
Total quality factor
QTS
0.51

Large signal parameters

Maximum linear excursion
xmax
4.5
mm
Air volume displaced at xmax
VD
54
cm³
Power handling
P
150
W
Program power
Pmax
250
W

Voice Coil

Nominal impedance
Z
4
Ω
DC resistance
RE
2.8
Ω
Inductance (1kHz)
LE
0.42
mH
VC Diameter
44
mm
Winding height
HVC
12.5
mm
Winding material
Aluminum
Former material
Glass Fiber

Magnet

Force factor
Bl
6.8
N/A
Motor constant
Bl/√RE
4.06
N/√W
Material
Ferrite

Diaphragm

Effective diameter
124
mm
Effective area
SD
120
cm²
Moving mass
MMS
15
g
Moving mass (without air load)
MMD
14
g
Material
Doped cellulose fiber

Suspensions

Stiffness
KMS
5.38
N/mm
Compliance
CMS
186
µm/N
Equivalent volume to the compliance
VAS
7.8
L
Mechanical resistance
RMS
1.71
N·s/m
Spider material
Nomex Fabric

Dimensions

Nominal diameter
6.5
25
mm
Overall diameter
165
mm
Baffle cutout diameter
145
mm
Overall depth
108
mm
Flange thickness
3
mm
Mounting depth
105
mm
Volume occupied by the driver (estimated)
0.92
L
Net weight
2.9
kg
Frame material
Aluminium
Ciare CXI160 Impedance
Ciare CXI160 SPL
