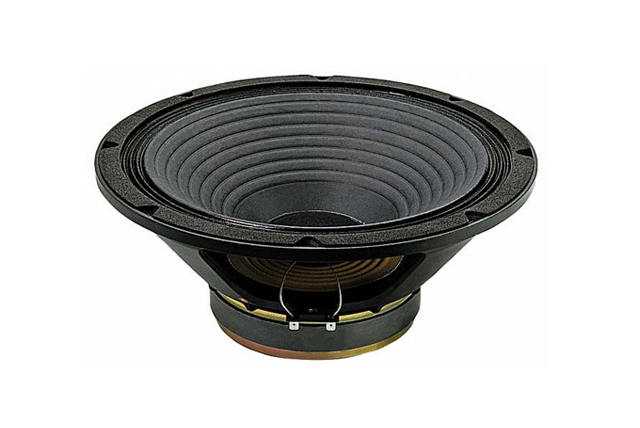

Ciare PW320

• Sensitivity (1W, 1m, infinite baffle) SPL1W 95.6dB

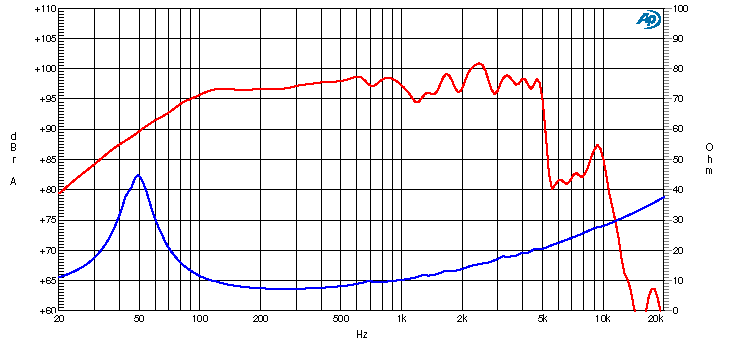

• Frequency response 40 - 4000Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 40Hz
• Mechanical quality factor QMS 2.37
• Electrical quality factor QES 0.29
• Total quality factor QTS 0.26

Large signal parameters

• Maximum linear excursion xmax 1.3mm
• Air volume displaced at xmax VD 64cm³
• Power handling P 150W
• Program power Pmax 400W

Voice Coil

• Nominal impedance Z 8Ω
• DC resistance RE 6.2Ω
• Inductance (1kHz) LE 0.6mH
• VC Diameter 50mm
• Former material Aluminium

Magnet

• Force factor Bl 16.9N/A
• Motor constant Bl/√RE 6.79N/√W
• Air gap height HAG 8mm
• Material Ferrite

Diaphragm

• Effective diameter 260mm
• Effective area SD 508cm²
• Moving mass MMS 53g
• Moving mass (without air load) MMD 44.7g

Suspensions

• Stiffness KMS 3.45N/mm
• Compliance CMS 290µm/N
• Equivalent volume to the compliance VAS 106L
• Mechanical resistance RMS 5.62N·s/m
• Surround material Nomex

Dimensions

• Nominal diameter 12″
• 320mm
• Overall diameter 315mm
• Baffle cutout diameter 282mm
• Overall depth 121mm
• Flange thickness 13mm
• Mounting depth 108mm
• Volume occupied by the driver (estimated) 2L
• Frame material Aluminium
